Tire 1 N Type Solar Panel 570W 580W 610W 630W Bifacial DAS Solar PV Module with Double Glass

Tire 1 N Type Solar Panel 570W 580W 610W 630W Bifacial DAS Solar PV Module with Double Glass
Tire 1 N Type Solar Panel 570W 580W 610W 630W Bifacial DAS Solar PV Module with Double Glass
Tire 1 N Type Solar Panel 570W 580W 610W 630W Bifacial DAS Solar PV Module with Double Glass

Tire 1 N Type Solar Panel 570W 580W 610W 630W Bifacial DAS Solar PV Module with Double Glass

Cell Type
N type Mono-crystalline
No. of Cells
144 (6x24) / 156 (6x26)
Panel Dimensions
2278x1134x30mm  / 2465x1134x35mm
Weight
31.3kg / 35.0kg
Junction box
IP 68, 3 bypass diodes
Packing
36pcs/pallet, 720pcs/40HQ  /   31pcs/pallet, 496pcs/40HQ
Inquire Now



DAS N-Type Solar Panel Series



With new technologies and new production capacities, DAS Solar leads the development and innovation of N-Type technology in the PV industry by offering high-performance products and high-efficiency energy conversions.

N-Type series products offer 430W-630W modules and more choices for higher power generation performance.



Product Description

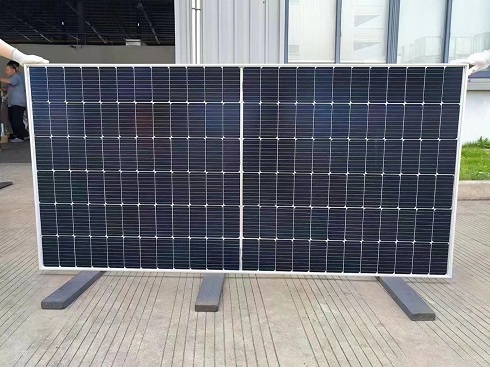

DAS Solar Panel

Specification
Module Type DH144NA-565W DH144NA-570W DH144NA-575W DH144NA-580W DH144NA-585W
　 STC NMOT STC NMOT STC NMOT STC NMOT STC NMOT
Nominal Max. Power(Pmax/W) 565W 427W 570W 430W 575W 433W 580W 437W 585W 441W
Open Circuit Voltage(Voc/V) 51.39 48.61 51.60 48.70 51.80 48.89 52.00 49.08 52.20 49.27
Short Circuit Current(Isc/A) 13.79 11.12 14.25 11.13 14.30 11.17 14.37 11.22 14.43 11.27
Operating Voltage(Vmp/V) 43.00 40.53 42.32 40.73 42.50 40.93 42.69 41.19 42.87 41.49
Operating Current(Imp/A) 13.14 10.54 13.47 10.56 13.53 10.58 13.59 10.61 13.65 10.63
Efficiency(%) 21.90% 22.10% 22.30% 22.50% 22.60%



Module Type DH156NA-610W DH156NA-615W DH156NA-620W DH156NA-625W DH156NA-630W
　 STC NMOT STC NMOT STC NMOT STC NMOT STC NMOT
Nominal Max. Power(Pmax/W) 610W 466W 615W 470W 620W 474W 625W 478W 630W 481W
Open Circuit Voltage(Voc/V) 55.32 52.29 55.46 52.43 55.60 52.56 55.74 52.69 55.80 52.82
Short Circuit Current(Isc/A) 14.03 11.30 14.11 11.37 14.19 11.43 14.27 11.49 14.35 11.56
Operating Voltage(Vmp/V) 45.59 43.87 45.76 44.08 45.93 44.28 46.09 45.18 46.26 45.33
Operating Current(Imp/A) 13.38 10.53 13.44 10.55 13.50 10.57 13.56 10.58 13.62 10.61
Efficiency(%) 21.8% 22.0% 22.2% 22.4% 22.5%
STC * : Irradiance = 1000 W/m², Cell Temperature = 25°C, AM = 1.5  Test condition is based on the front side
NMOT *: Irradiance = 800 W/m², Ambient Temperature = 20°C, AM = 1.5，Wind Speed = 1 m/s   Test condition is based on the front side

  •

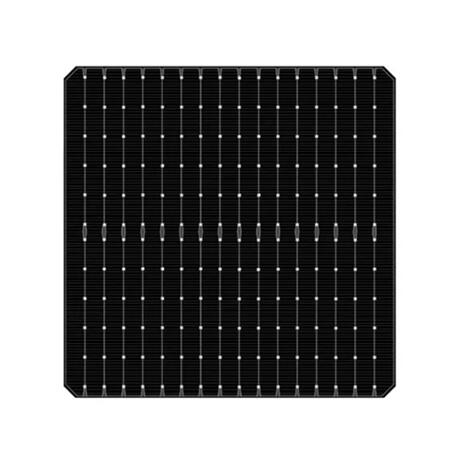

  • N type cell

    N-Type Mono Bifacial Cell



    1.  Hight conversion efficiency ≥ 25%

    2. Bifaciality ≥ 85%"0" LID ( Light Induced Degradation)

    3. High resistance of PID (Potential Induced Degradation)

    4. Power temperature coefficient  ≤ -0.30%/KWeak

    5. Light response (200W/m2) ≥ 97%

    6. Lower CTM loss, better for the high efficiency module

  • DAS PV Module

    Power generation  ( N-Type V P-Type)



    1. Up to 5% additional power generation of N-type compareed to P-type module

    2. extra 500Kwh generated yearly based on a 10KW solar system

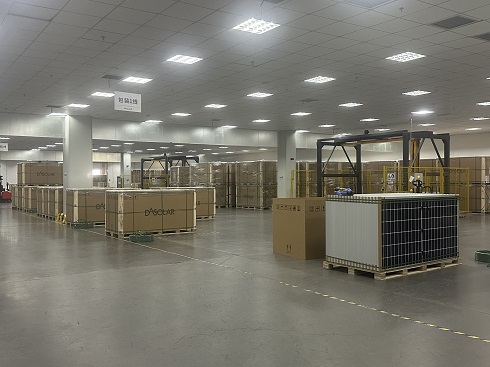

Packing

Tire 1 DAS Solar Panel 630WDAS Bifacial Solar Panels 580W

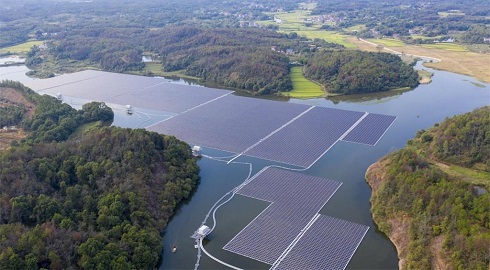

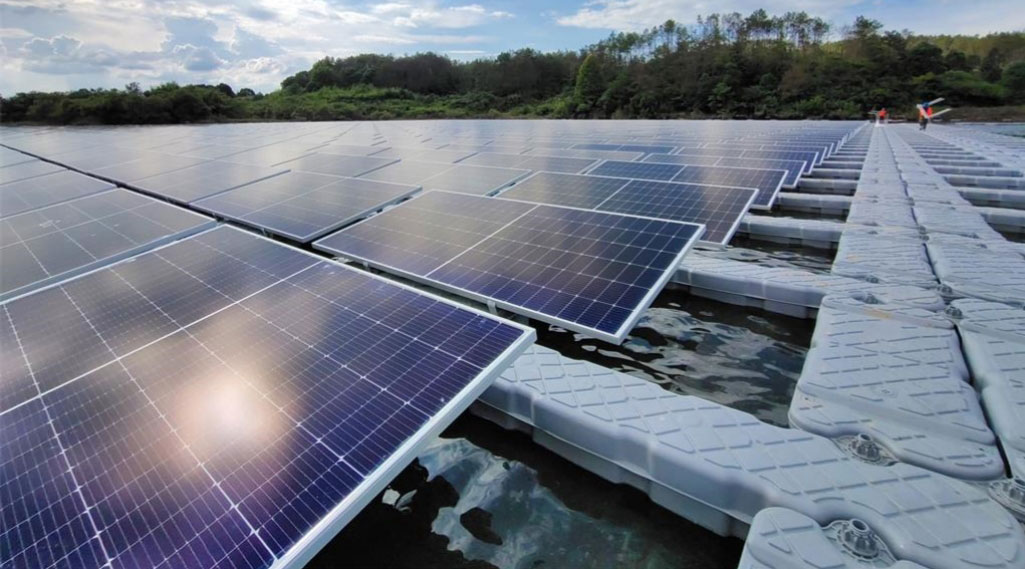

Project

Bifacial Solar Panel with Double Glass 620W
Bifacial Module 570W
