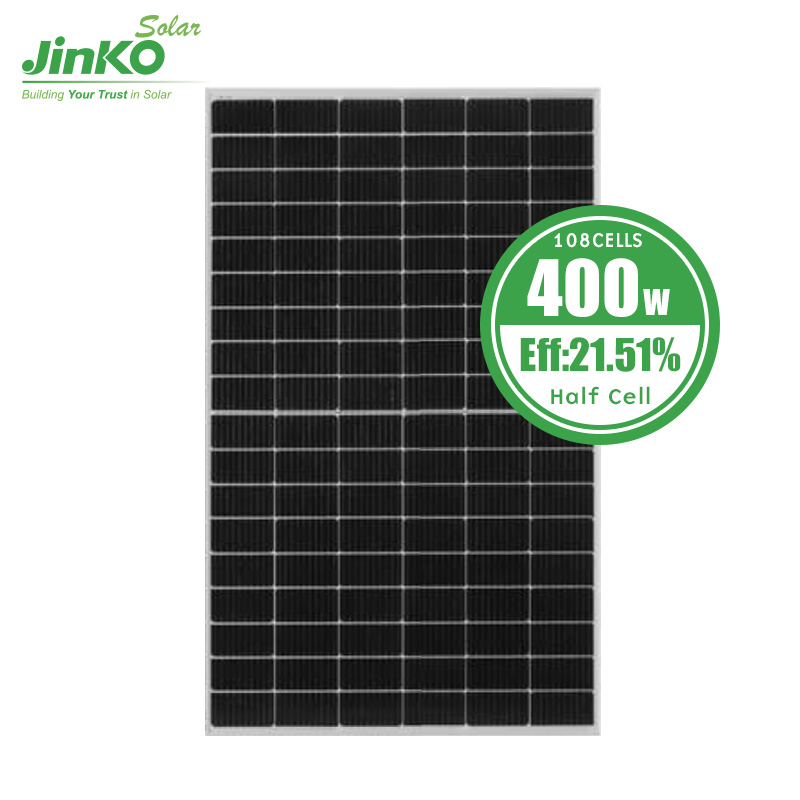

Jinko 108Cells 182mm 400W 420W P-Type Monocrystalline Half Cell Solar Panel

Jinko 108Cells 182mm 400W 420W P-Type Monocrystalline Half Cell Solar Panel
Jinko 108Cells 182mm 400W 420W P-Type Monocrystalline Half Cell Solar Panel
Jinko 108Cells 182mm 400W 420W P-Type Monocrystalline Half Cell Solar Panel

Jinko 108Cells 182mm 400W 420W P-Type Monocrystalline Half Cell Solar Panel

High Power Solar Power 400W 410W 420W Mono Photovoltaic Module PV Solar Panel 400W


Model Number: JKM400M-54HL4
Power Range：

400W-420W

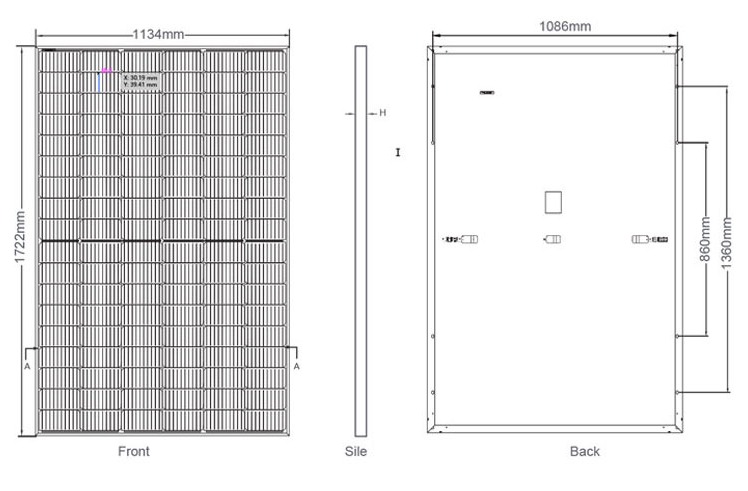

Dimensions: 1722mm*1134mm*30mm
Weight: 22.0kg
Certificate: CE/TUV



Inquire Now

Advantages of Tiger Pro Module

  • Ultra-high Power for the Lowest LCOE and Highest IRR
  • Ultra-high Efficiency of 21.4%
  • Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
  • Multi Busbar Technology Decreasing the Resistance Loss
Module Type JKM400M-54HL4
JKM400M-54HL4-V		 JKM405M-54HL4
JKM405M-54HL4-V		 JKM410M-54HL4
JKM410M-54HL4-V		 JKM415M-54HL4
JKM415M-54HL4-V		 JKM420M-54HL4
JKM420M-54HL4-V
Test STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 400Wp 298Wp 405Wp 301wp 410Wp 305Wp 415Wp 309Wp 420Wp 312Wp
Maximum Power Voltage (Vmp) 30.42V 28.42V 30.52V 28.56V 30.62V 28.72V 30.79V 28.88V 30.91V 29.01V
Maximum Power Current (Imp) 13.15A 10.47A 13.27A 10.55A 13.39A 10.62A 13.48A 10.69A 13.59A 10.76A
Open-circuit Voltage (Voc) 36.98V 34.90V 37.06V 34.98V 37.14V 35.05V 37.31V 35.21V 37.43V 35.39V
Short-circuit Current (Isc) 13.78A 11.13A 13.85A 11.19A 13.92A 11.24A 14.01A 11.32A 14.12A 11.38A
Module Efficiency STC (%) 20.48% 20.74% 21.00% 21.25% 21.51%
Operating Temperature(℃) -40℃~+85℃
Maximum system voltage 1000/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.35%/℃
Temperature coefficients of Voc -0.28%/℃
Temperature coefficients of Isc 0.048%/℃
Nominal operating cell temperature (NOCT) 45±2℃
STC :           Irradiance 1000W/m2               Cell Temperature 25°C              Spectrum AM=1.5
NOCT :        Irradiance 800W/m2                Ambient Temperature 20°C        Spectrum  AM=1.5        Wind Speed 1m/s
