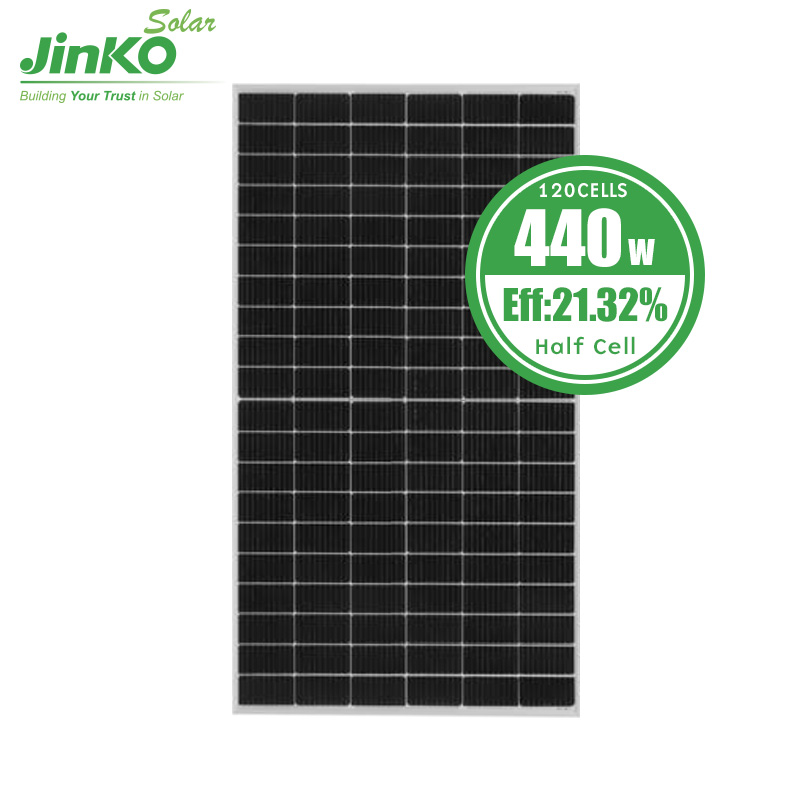

Jinko 120Cells 182mm 440W 460W P-Type Monocrystalline Half Cell Solar Panel

Jinko 120Cells 182mm 440W 460W P-Type Monocrystalline Half Cell Solar Panel
Jinko 120Cells 182mm 440W 460W P-Type Monocrystalline Half Cell Solar Panel
Jinko 120Cells 182mm 440W 460W P-Type Monocrystalline Half Cell Solar Panel

Jinko 120Cells 182mm 440W 460W P-Type Monocrystalline Half Cell Solar Panel

High Power Solar Power 440W 450W 460W Mono-Facial Module Photovoltaic Solar Panel 440W


Model Number: JKM440M-60HL4
Power Range：

440W-460W

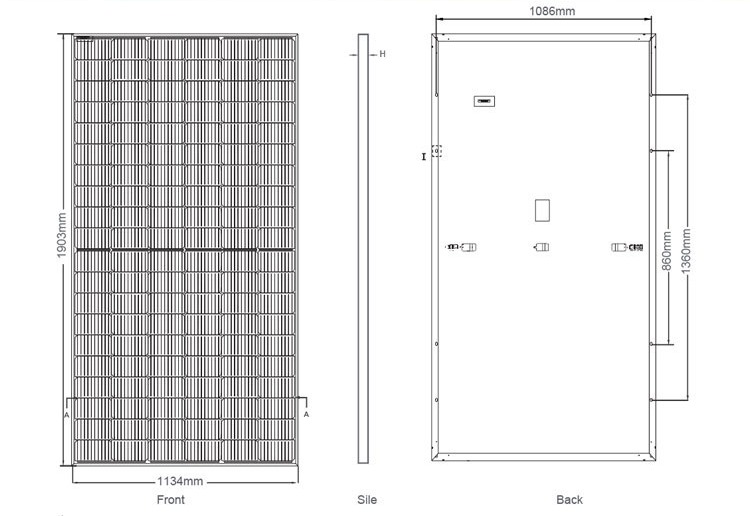

Dimensions: 1903mm*1134mm*30mm
Weight: 24.2kg
Certificate: CE/TUV



Inquire Now

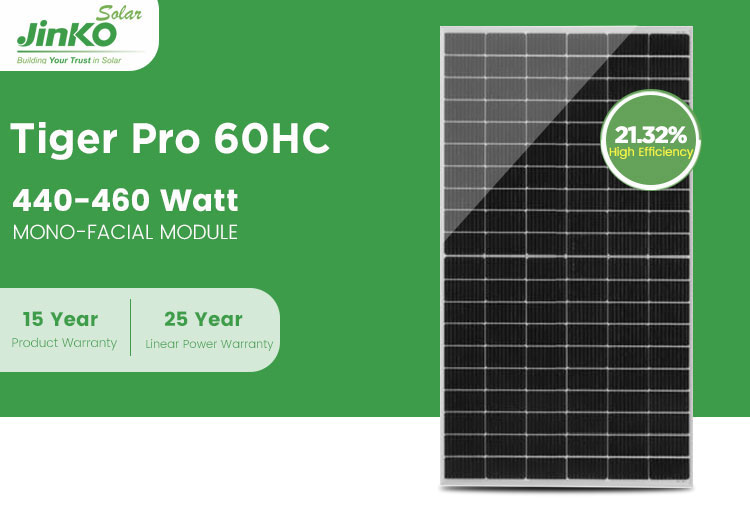

Advantages of Tiger Pro Module

  • Ultra-high Power for the Lowest LCOE and Highest IRR
  • Ultra-high Efficiency of 21.4%
  • Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
  • Multi Busbar Technology Decreasing the Resistance Loss
Module Type JKM440M-60HL4
JKM440M-60HL4-V		 JKM445M-60HL4
JKM445M-60HL4-V		 JKM450M-60HL4
JKM450M-60HL4-V		 JKM455M-60HL4
JKM455M-60HL4-V		 JKM460M-60HL4
JKM460M-60HL4-V
Test STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 440Wp 327Wp 445Wp 331Wp 450Wp 335Wp 455Wp 339Wp 460Wp 342Wp
Maximum Power Voltage (Vmp) 33.72V 31.39V 33.82V 31.56V 33.91V 31.73V 34.06V 31.91V 34.20V 32.07V
Maximum Power Current (Imp) 13.05A 10.43A 13.16A 10.49A 13.27A 10.55A 13.36A 10.61A 13.45A 10.67A
Open-circuit Voltage (Voc) 41.02V 38.72V 41.10V 38.79V 41.18V 38.87V 41.33V 39.01V 41.48V 39.15V
Short-circuit Current (Isc) 13.73A 11.09A 13.79A 11.14A 13.85A 11.19A 13.93A 11.25A 14.01A 11.32A
Module Efficiency STC (%) 20.39% 20.62% 20.85% 21.08% 21.32%
Operating Temperature(℃) -40℃~+85℃
Maximum system voltage 1000/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.35%/℃
Temperature coefficients of Voc -0.28%/℃
Temperature coefficients of Isc 0.048%/℃
Nominal operating cell temperature (NOCT) 45±2℃
STC :           Irradiance 1000W/m2               Cell Temperature 25°C               Spectrum AM=1.5
NOCT :        Irradiance 800W/m2                Ambient Temperature 20°C        Spectrum  AM=1.5        Wind Speed 1m/s

Hot Tags : paneles solares jinko solar pv modules solar panel price solar panel pv module home use solar panel solar power module
