Jinko 144Cells 182mm 530W 550W Bifacial Module With Dual Glass Solar Panel

Jinko 144Cells 182mm 530W 550W Bifacial Module With Dual Glass Solar Panel
Jinko 144Cells 182mm 530W 550W Bifacial Module With Dual Glass Solar Panel

Jinko 144Cells 182mm 530W 550W Bifacial Module With Dual Glass Solar Panel

High Power P-Type Solar Panel 530W 540W 550W Bifacial Module Photovoltaic Solar Panel 530W


Model Number: JKM530M-72HL4-BDVP
Power Range：

530W-550W

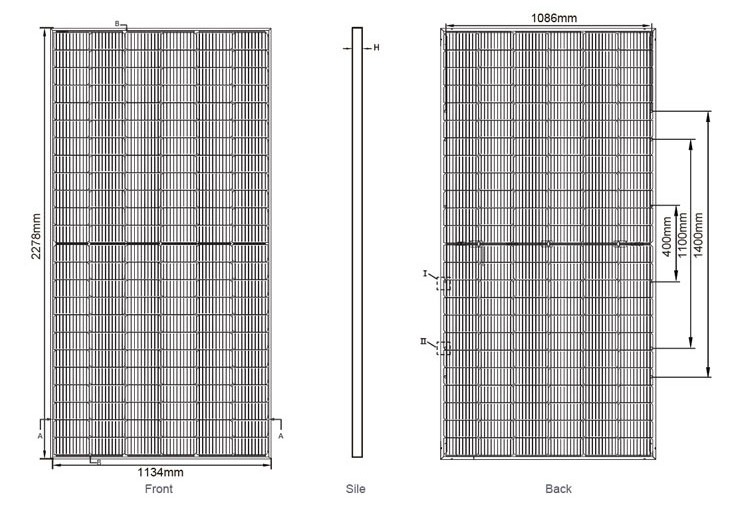

Dimensions: 2278mm*1134mm*30mm
Weight: 32kg
Certificate: CE/TUV



Inquire Now

Advantages of Tiger Pro Module

  • Ultra-high Power for the Lowest LCOE and Highest IRR
  • Ultra-high Efficiency of 21.4%
  • Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
  • Multi Busbar Technology Decreasing the Resistance Loss
Module Type JKM530M-72HL4-BDVP JKM535M-72HL4-BDVP JKM540M-72HL4-BDVP KM545M-72HL4-BDVP JKM550M-72HL4-BDVP
Test STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 530Wp 394Wp 535Wp 398Wp 540Wp 402Wp 545Wp 405Wp 550Wp 409Wp
Maximum Power Voltage (Vmp) 40.87V 37.88V 40.94V 37.94V 41.13V 38.08V 41.32V 38.25V 41.51V 38.42V
Maximum Power Current (Imp) 12.97A 10.41A 13.07A 10.49A 13.13A 10.55A 13.19A 10.60A 13.25A 10.65A
Open-circuit Voltage (Voc) 49.48V 46.70V 49.54V 46.76V 49.73V 46.94V 49.92V 47.12V 50.11V 47.30V
Short-circuit Current (Isc) 13.73A 11.09A 13.83A 11.17A 13.89A 11.22A 13.95A 11.27A 14.01A 11.32A
Module Efficiency STC (%) 20.52% 20.71% 20.90% 21.10% 21.29%
Operating Temperature(℃) -40℃~+85℃
Maximum system voltage 1500VDC (IEC)
Maximum series fuse rating 30A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.35%/℃
Temperature coefficients of Voc -0.28%/℃
Temperature coefficients of Isc 0.048%/℃
Nominal operating cell temperature (NOCT) 45±2℃
Refer. Bifacial Factor 70±5%
STC :           Irradiance 1000W/m2               Cell Temperature 25°C               Spectrum AM=1.5
NOCT :        Irradiance 800W/m2                Ambient Temperature 20°C        Spectrum  AM=1.5        Wind Speed 1m/s
