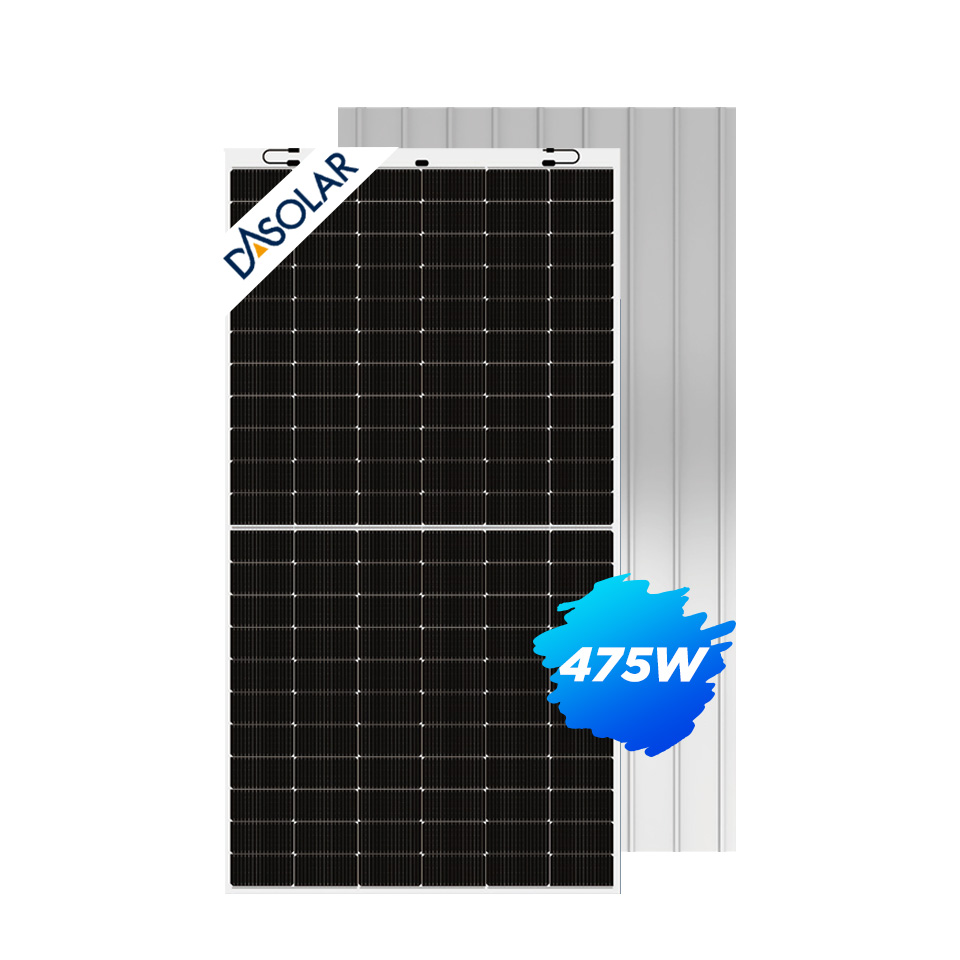

Flexible Module 460W 470W Light Weight Solar Panel

Flexible Module 460W 470W Light Weight Solar Panel
Flexible Module 460W 470W Light Weight Solar Panel
Flexible Module 460W 470W Light Weight Solar Panel

Flexible Module 460W 470W Light Weight Solar Panel

Cell Type
P type Mono-crystalline
Module Size
2148x1134x4(9) mm
Module Thickness
4.0(9)mm
Module Weight
10.5(10.2)kg
Junction box
IP 68, 3 bypass diodes
Packing
60pcs/pallet, 480pcs / 20GP, 1080pcs / 40HQ
Inquire Now



Product Description

light weight module



DAS-LH132PA  455W~475W
Electrical Parameters (STC * )
Nominal Max. Power(Pmax/W) 455 460 465 470 475
Open Circuit Voltage(Voc/V) 45.50 45.65 45.79 45.93 46.06
Short Circuit Current(Isc/A) 12.67 12.76 12.85 12.93 13.02
Operating Voltage(Vmp/V) 37.72 37.87 38.01 38.15 38.28
Operating Current(Imp/A) 12.06 12.15 12.24 12.32 12.41
Efficiency(%) 19.9 20.1 20.3 20.6 20.8
STC * : Irradiance = 1000 W/m², Cell Temperature = 25°C, AM = 1.5 Test condition is based on the front side
Electrical Parameters (NMOT * )
Nominal Max. Power(Pmax/W) 341.7 345.5 349.2 353.0 356.7
Open Circuit Voltage(Voc/V) 43.35 43.50 43.63 43.76 43.89
Short Circuit Current(Isc/A) 10.21 10.28 10.35 10.42 10.49
Operating Voltage(Vmp/V) 35.16 35.3 35.43 35.57 35.69
Operating Current(Imp/A) 9.72 9.79 9.86 9.93 9.99
NMOT *: Irradiance = 800 W/m², Ambient Temperature = 20°C, AM = 1.5，Wind Speed = 1 m/s Test condition is based on the front side

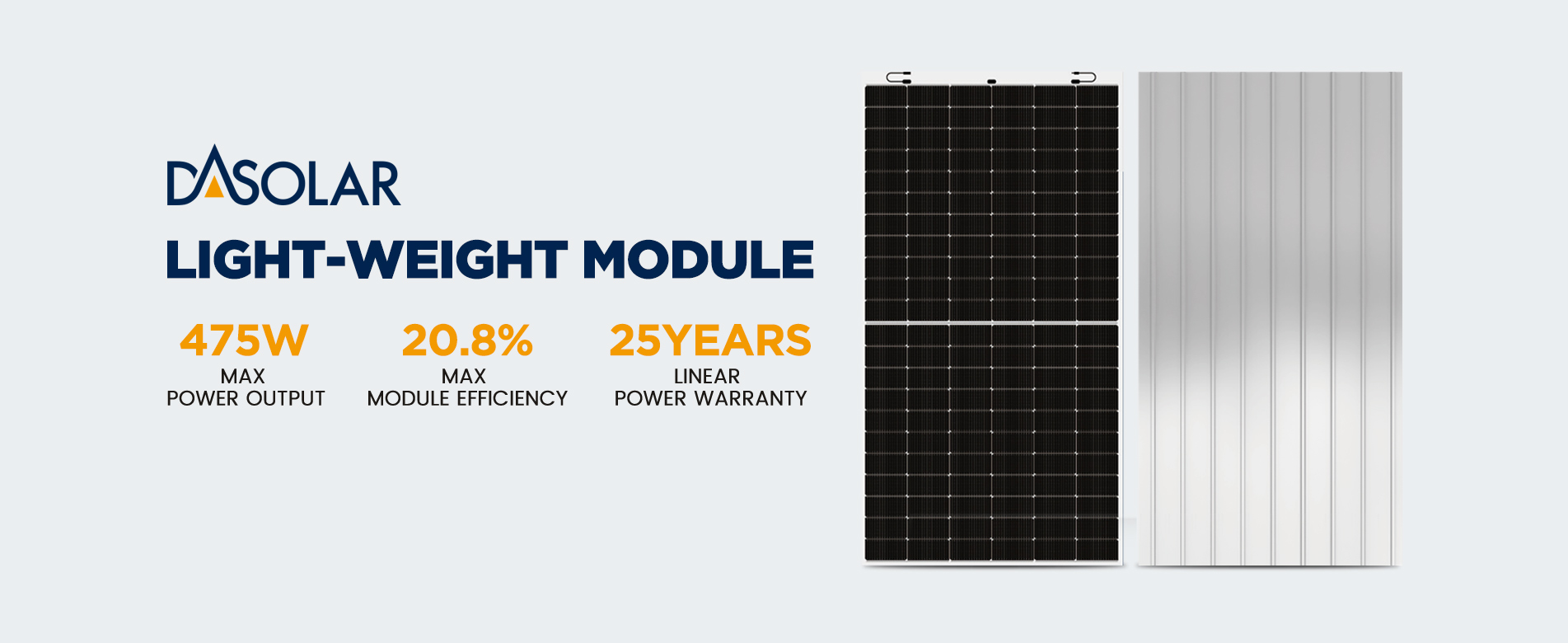

  • Lightweight Solar Module
    Lightweight Shingled Module with High Density



    l  Weight: 4 KG/m2 ,  Lighter than other modules,

    l  192W/m2, HDM technology

    l  Warranty: 25 years linear power degradation warranty









  • flexible solar panel





    Soft and graceful extension of light engergy



    l  Softer: fitting the curved surfaces better

    l  Thinner: 4 mm in thickness

    l  Max.bending degree: 30°



















  • shingled solar panel

    Installation

    (don't need mounting brackets any more)



    l  Installation cost : decreased by 50%

    l  Easy and quick installation: one module could be installed in 40 seconds by 2 workers, cost reduction is more than 70%

    l  Installtion Ways :

        (a) Double sided adhesive Tape

        (b)  Silicone adhesive





Project
Flexible PV Module
