460Watt All Black Less Hot Spot Loss Half Cell Technology PV Module

460Watt All Black Less Hot Spot Loss Half Cell Technology PV Module

460Watt All Black Less Hot Spot Loss Half Cell Technology PV Module

Perc Type All Black 460W Half Cut Monocrystalline Panel

Module No.
JC460-120M
Cells Type
182x91mm
No. of Cells 144 pcs (6x24)
Panel Efficiency:
21.24%
Panel Dimenstion (LxWxT)
1910x1134x35mm
Weight
24kg
Packing
31pcs/pallet,744pcs/40HQ
Inquire Now

Main Features Of 460W All Black Panel
  • BLC Technology: Better light trapping and current collection technology
  • PID Resistance: Selected material and stringent quality system ensure PID free
  • Salt-resistant & Ammonia-Resistant
  • Hot Technology: Hot 2.0 technology has better reliability and lower LID/LETID.
  • Enhanced Mechanical Load: Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
  • High Reliability:complete testing facilities for tests of UV,TC,HF,EL,etc tests



Product Parameter

JC(430-460)-120M
Maximum Power (Pmax)
460W
Open-circuit Voltage (Voc)
42.00V
Maximum Power Voltage (Vmp)
35.60V
Short-circuit Current (lsc)
13.78A
Maximum Power Current (Imp)
12.92A
Module Efficiency (%)
21.24%
Power Tolerance
0~+5W
Temperature Coefficient of Isc
0.05%/℃
Temperature Coefficient of Voc
-0.31%/℃
Temperature Coefficient of Pmax
-0.35%/℃

Product Details

black fframe photovoltaic module

Glass

A grade ,Antireflection Coating, 3.2mm High Transmission,

EVA

Strong Resistance to high and low temperatures

Half Cut Technology

Increase the power of 5-10W, Less hot spot risk
550 solar panel black frame

PERC Cell Technology

Improve the photoelectric conversion efficiency about 1%

Three Appearance Optional

Black frame/Silver frame/Full black

Product Liability Insurance

Quality insured by SINOSOLAR LAB(Up $1,000,000).

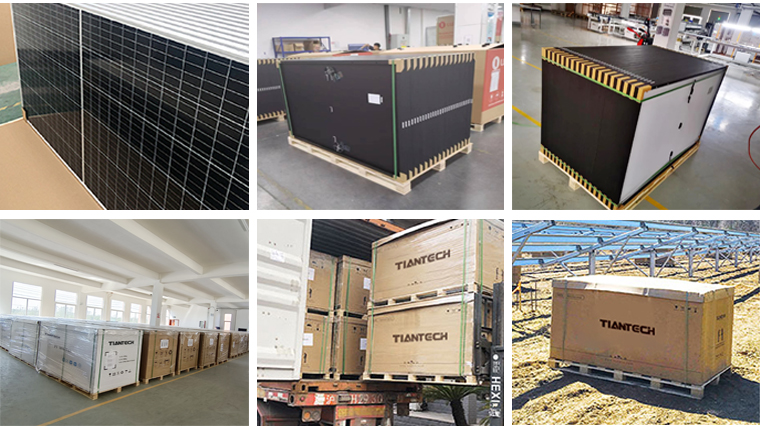

Product Packing

460W Half Cut Whole Black PV Module

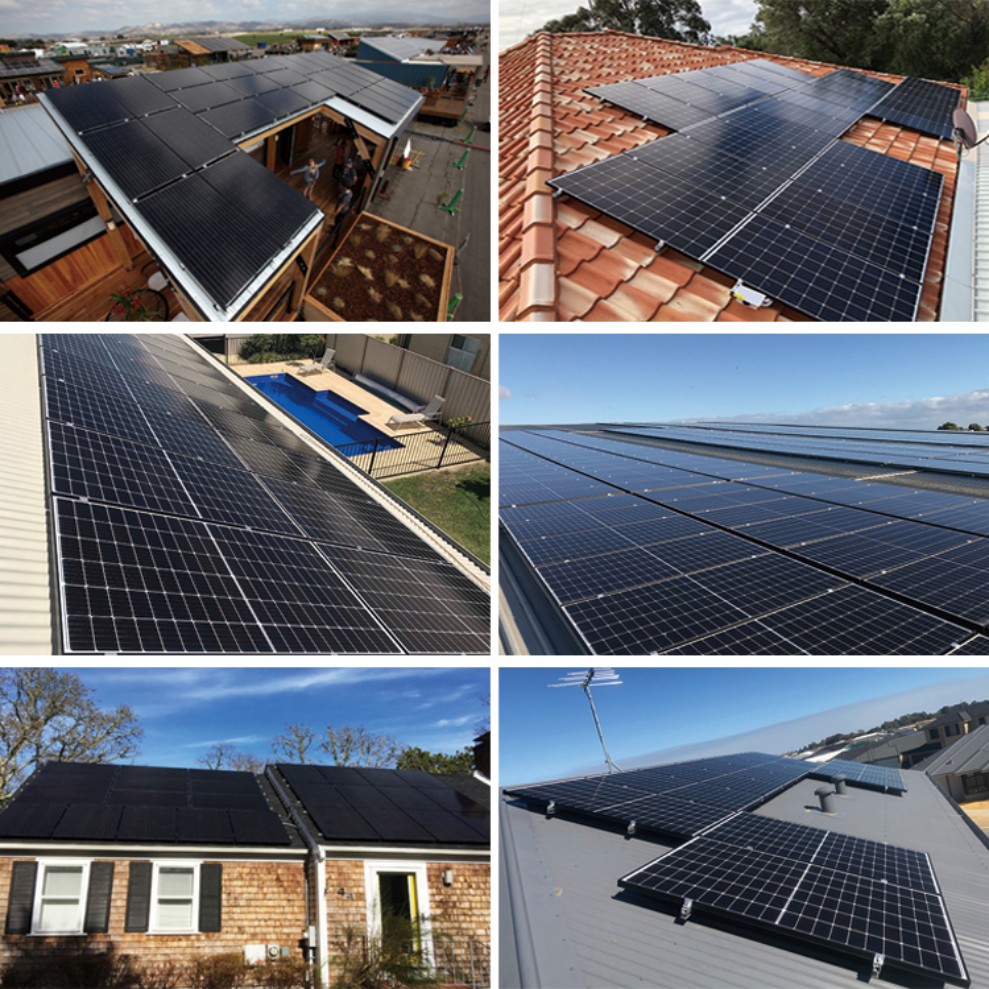

Solar Projects

Full Black 460Watt HC Solar Panel









Hot Tags : 460Watt Full Black PV Module Half Cut 460W Single-sided All Black Panel 460W PERC Full Black Panel Half Cell 460W Whole Black PV Panel 460W Monocrystalline Panel With Full Balck 460 Watt HC All Black Photovoltaic Panel
