550Watt Black Frame Half Cut Perc Salt-resistant Photovoltaic Panel For Home

550Watt Black Frame Half Cut Perc Salt-resistant Photovoltaic Panel For Home

550Watt Black Frame Half Cut Perc Salt-resistant Photovoltaic Panel For Home

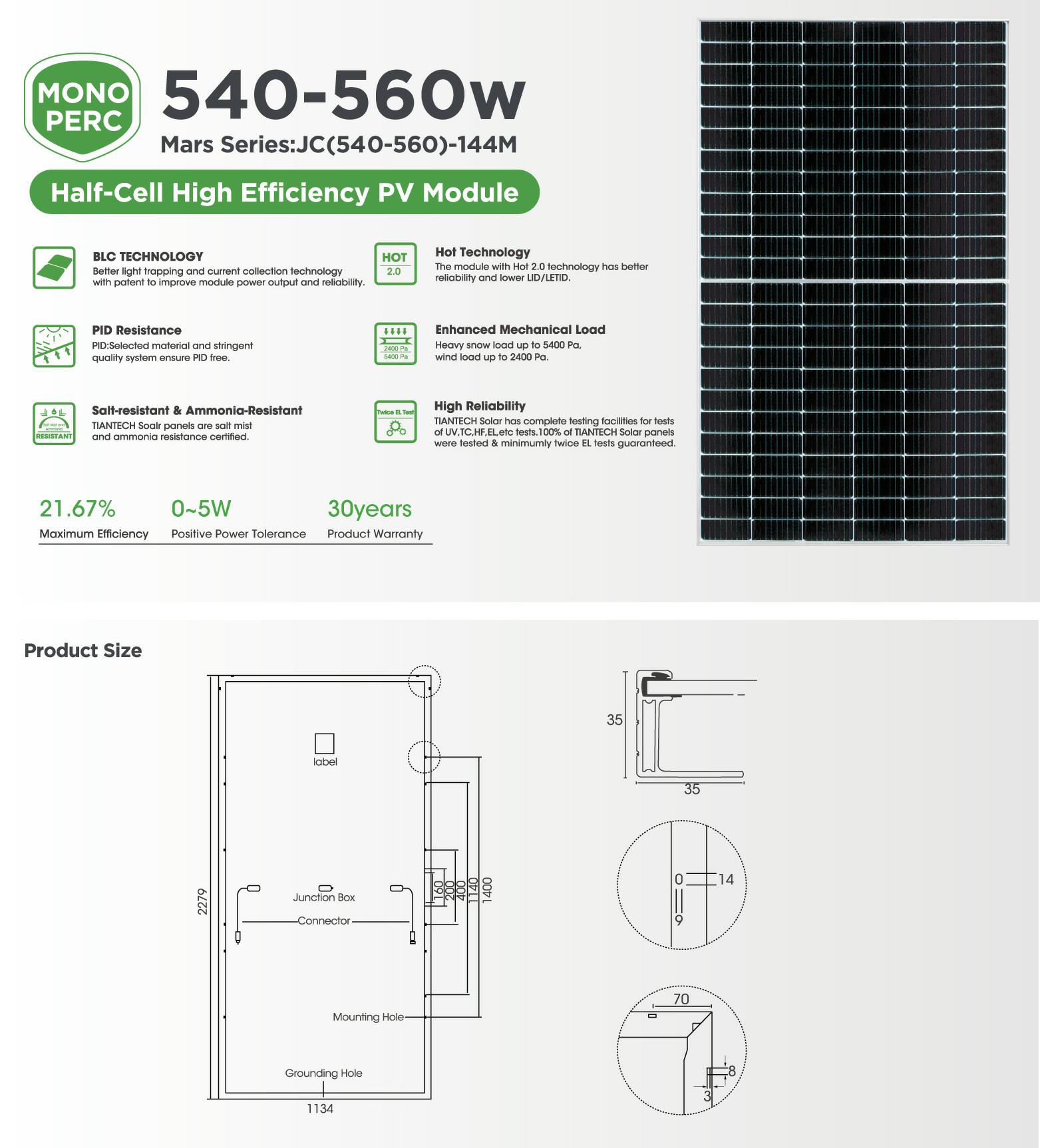

540-560W Sliver Frame/Black Frame/All Black Half Cut Monocrystalline Panel

Module No.
JC(540-560)-144M
Cells Type
182x91mm
No. of Cells
144 (6x24)
Panel Efficiency:
21.90%
Panel Dimenstion (LxWxT)
2279x1134x30mm
Weight
29kg
Packing
31pcs/pallet,620pcs/40HQ
Inquire Now

Main Features Of Panel
  • Better light trapping and current collection technology
  • Selected material and stringent quality system ensure PID free.
  • Salt-resistant & Ammonia-Resistant
  • The module with Hot 2.0 technology has better reliability and lower LID/LETID
  • Applicable to harsh environment of deserts, farmlands and seasides farmlands and seasides
  • Much lower risk of Hot spot

550W 560W Half Cut Solar Panel

Product Parameter

Module No. JC(540-560)-144M
Maximum Power (Pmax) 540W 545W 550W 555W 560W
Open-circuit Voltage (Voe) 49.8V 50.0V 50.2V 50.4V 50.6V
Maximum Power Voltage( Vmp) 42.0V 42.2V 42.4V 42.6V 42.8V
Short-circuit Current (Isc) 13.66A 13.72A 13.78A 13.84A 13.90A
Maximum Power Current (lmp) 12.86A 12.91A 12.97A 13.03A 13.09A
Module Efficiency (%) 20.89% 21.09% 21.28% 21.47% 21.67%
Power Tolerance 0～+5W
Temperature Coefficient of Isc 0.05%/℃
Temperature Coefficient of Voc -0.31%/℃
Temperature Coefficient of Pmax -0.35%/℃
STC  (Standard Test Environment:): lrradiance 1000W/m2, Cell temperature 25℃ , Spectrum AM1.5

Product Details

black fframe photovoltaic module

Glass

A grade ,Antireflection Coating, 3.2mm High Transmission,

EVA

Strong Resistance to high and low temperatures

Half Cut Technology

Increase the power of 5-10W, Less hot spot risk
550 solar panel black frame

PERC Cell Technology

Improve the photoelectric conversion efficiency about 1%

Three Appearance Optional

Black frame/Silver frame/Full black

Product Liability Insurance

Quality insured by SINOSOLAR LAB(Up $1,000,000).

Product Production

550W Perc Monocrystalline Panel

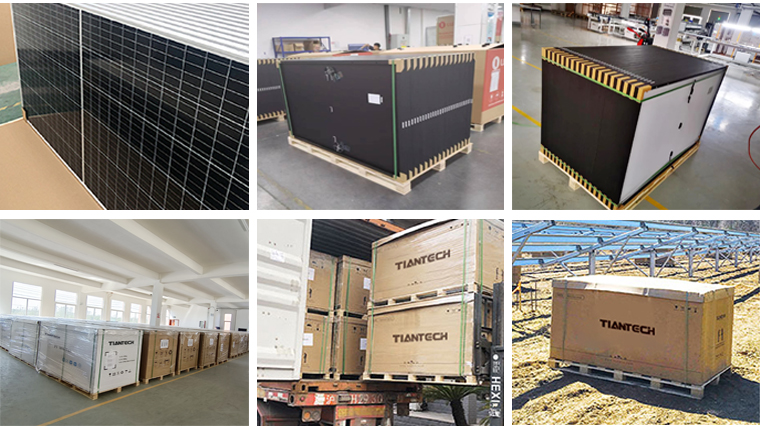

Product Packaging

550W Black Frame Solar Panel







Hot Tags : Monocrystalline Half Cut Perc Panel Black Frame 550W HC PV Module Half Cell 550W Black Frame Solar Panel Half Cut 550W Perc Panel For Home Home 550W Black Frame Half Cut Panel 550W Mono Half Cut Photovoltaic Panel
