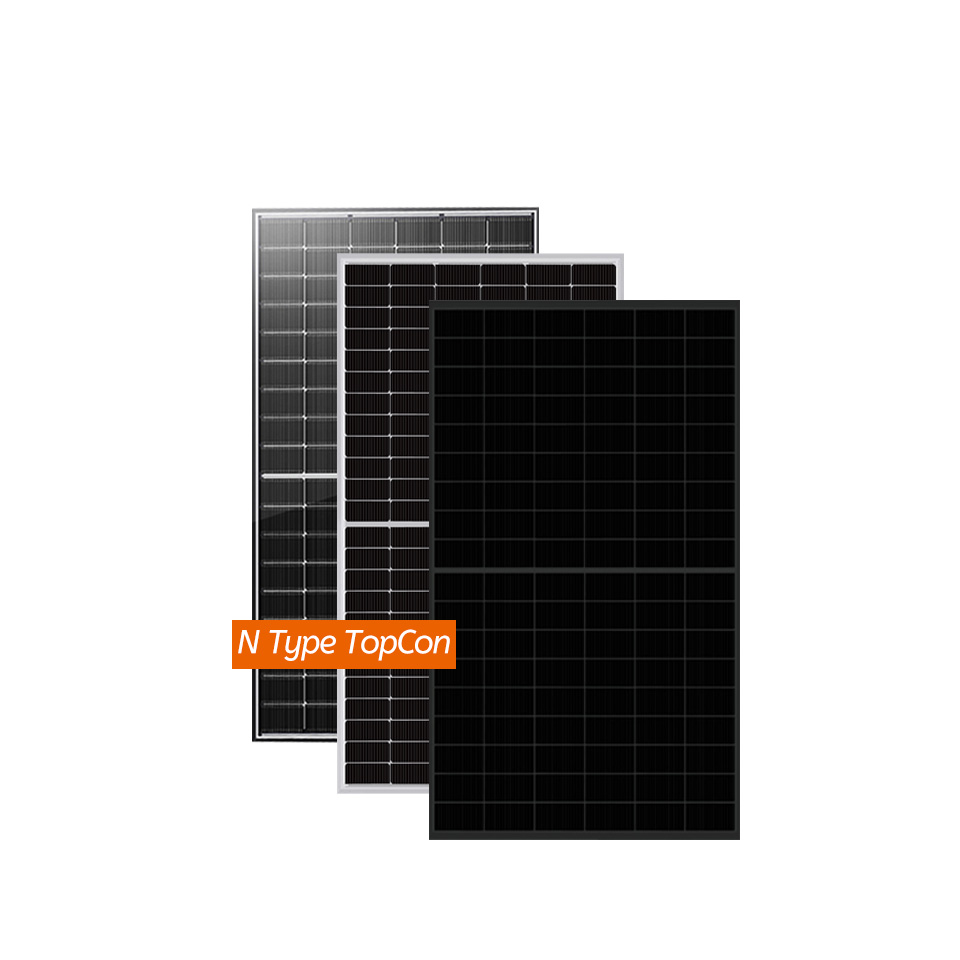

All Black Bifacial Double Glass PV Module 420W 430W 440Watt N Type Solar Panel For Home, Commerical Use

All Black Bifacial Double Glass PV Module 420W 430W 440Watt N Type Solar Panel For Home, Commerical Use
All Black Bifacial Double Glass PV Module 420W 430W 440Watt N Type Solar Panel For Home, Commerical Use
All Black Bifacial Double Glass PV Module 420W 430W 440Watt N Type Solar Panel For Home, Commerical Use

All Black Bifacial Double Glass PV Module 420W 430W 440Watt N Type Solar Panel For Home, Commerical Use

All Black N Type 420W 425W 430W 435W 440W Bifacial Monocrystalline N Type Solar Panels with Double Glass

Cell Type
N type Mono-crystalline
No. of Cells
108 (6x18)
Panel Dimensions
1722x1134x30mm
Weight
20.5kg
Junction box
IP 68, 3 bypass diodes
Packing
36pcs/pallet, 936pcs/40HQ
Inquire Now

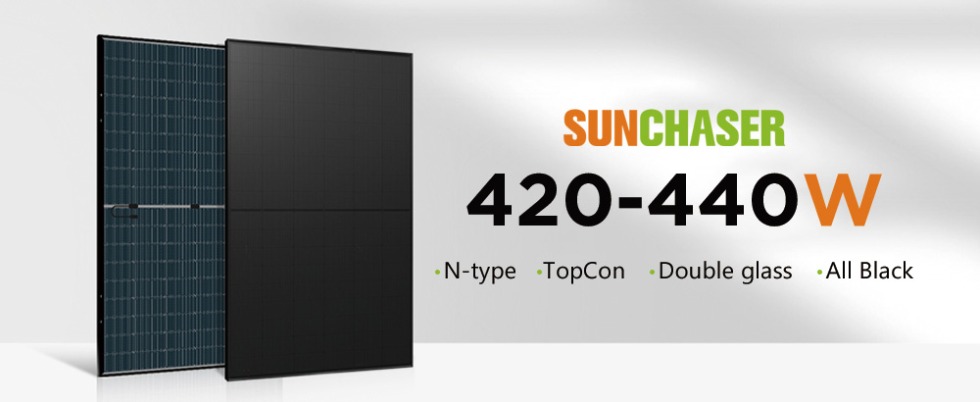

Sunchaser Solar Panel



With new technologies and new production capacities, Sunchaser solar leads the development and innovation of N-Type technology in the PV industry by offering high-performance products and high-efficiency energy conversions.

N-Type series products offer 430W-630W modules and more choices for higher power generation performance.



Product Description

solar panel 1000W



Specification
Module Type DH108NA-420W DH108NA-425W DH108NA-430W DH108NA-435W DH108NA-440W
　 STC NMOT STC NMOT STC NMOT STC NMOT STC NMOT
Nominal Max. Power(Pmax/W) 420W 316W 425W 319W 430W 322W 435W 325W 440W 329W
Open Circuit Voltage(Voc/V) 38.48 36.40 38.54 36.46 38.60 36.52 38.72 36.82 38.88 36.69
Short Circuit Current(Isc/A) 13.78 11.11 13.79 11.11 13.80 11.12 13.89 11.20 13.98 11.27
Operating Voltage(Vmp/V) 32.02 30.05 32.35 30.28 32.68 30.51 33.01 30.83 33.26 31.04
Operating Current(Imp/A) 13.12 10.52 13.14 10.54 13.16 10.56 13.18 10.58 13.23 10.60
Efficiency(%) 21.50% 21.80% 22% 22.30% 22.50%
STC * : Irradiance = 1000 W/m², Cell Temperature = 25°C, AM = 1.5  Test condition is based on the front side
NMOT *: Irradiance = 800 W/m², Ambient Temperature = 20°C, AM = 1.5，Wind Speed = 1 m/s   Test condition is based on the front side

  •

  • Full Black Solar Panel

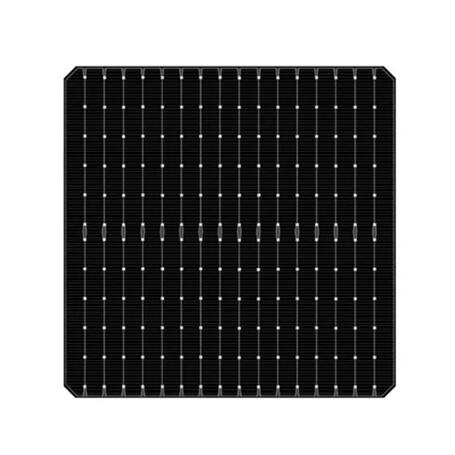

    N-Type Mono Bifacial Cell



    1.  Hight conversion efficiency ≥ 25%

    2. Bifaciality ≥ 85%"0" LID ( Light Induced Degradation)

    3. High resistance of PID (Potential Induced Degradation)

    4. Power temperature coefficient  ≤ -0.30%/KWeak

    5. Light response (200W/m2) ≥ 97%

    6. Lower CTM loss, better for the high efficiency module

  • double glass PV Module

    Power generation  ( N-Type V P-Type)



    1. Up to 5% additional power generation of N-type compareed to P-type module

    2. extra 500Kwh generated yearly based on a 10KW solar system

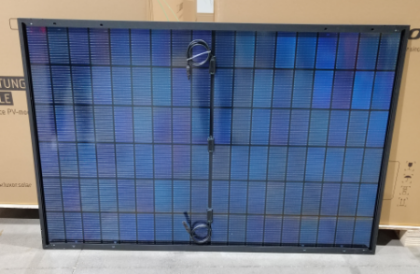

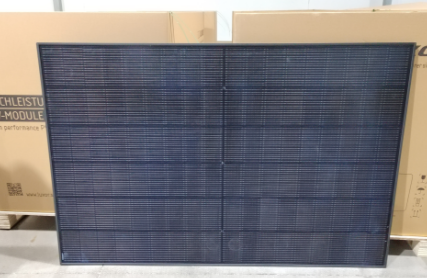

Packing

Tire 1 DAS Solar PanelDAS All Black Solar Panels 425W

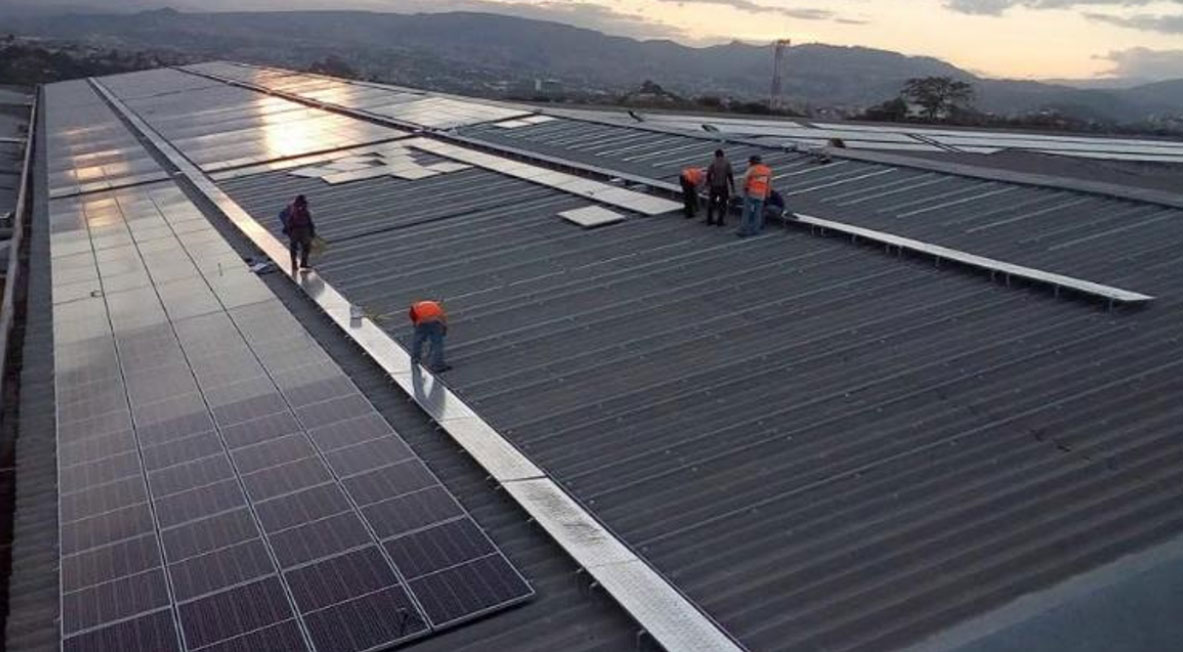

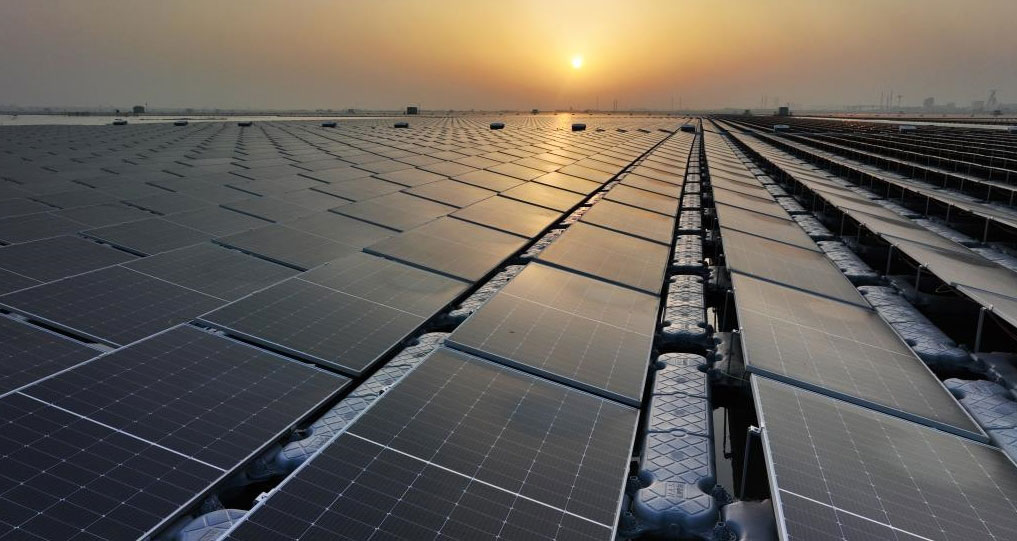

Project

Bifacial Solar Panel with Double Glass 440W
Bifacial Module 420W

Hot Tags : panel solares solar kit solar panels PV Module Tire 1 Solar Panel kit solares
