All Black 550W Half Cut PID Resistance Perc Single-sided Solar Panel

All Black 550W Half Cut PID Resistance Perc Single-sided Solar Panel

All Black 550W Half Cut PID Resistance Perc Single-sided Solar Panel

Perc Type All Black 550W Half Cut Monocrystalline Panel

Module No.
JC550-144M
Cells Type
182x91mm
No. of Cells
144 (6x24)
Panel Efficiency:
20.8%
Panel Dimenstion (LxWxT)
2279x1134x35mm
Weight
29kg
Packing
31pcs/pallet,620pcs/40HQ
Inquire Now

Main Features Of 550W All Black Panel
550Watt Half Cut Perc Panel
  • Excellent module efficiency up to:21.28%
  • IP68 junction box for long-term weather endurance
  • Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
  • PID:Selected material and stringent quality system ensure PID free
  • Applicable to harsh environment of deserts, farmlands and seasides
  • Much lower risk of Hot spot
  • 30 Years Warranty And Class A application level

Product Parameter

Maximum Power (Pmax)
550W
Open-circuit Voltage (Voc)
50.2V
Maximum Power Voltage (Vmp)
42.4V
Short-circuit Current (lsc)
13.78A
Maximum Power Current (Imp)
12.97A
Module Efficiency (%)
21.28%
Power Tolerance
0~+5W
Temperature Coefficient of Isc
0.05%/℃
Temperature Coefficient of Voc
-0.31%/℃
Temperature Coefficient of Pmax
-0.35%/℃

Product Details

black fframe photovoltaic module

Glass

A grade ,Antireflection Coating, 3.2mm High Transmission,

EVA

Strong Resistance to high and low temperatures

Half Cut Technology

Increase the power of 5-10W, Less hot spot risk
550 solar panel black frame

PERC Cell Technology

Improve the photoelectric conversion efficiency about 1%

Three Appearance Optional

Black frame/Silver frame/Full black

Product Liability Insurance

Quality insured by SINOSOLAR LAB(Up $1,000,000).

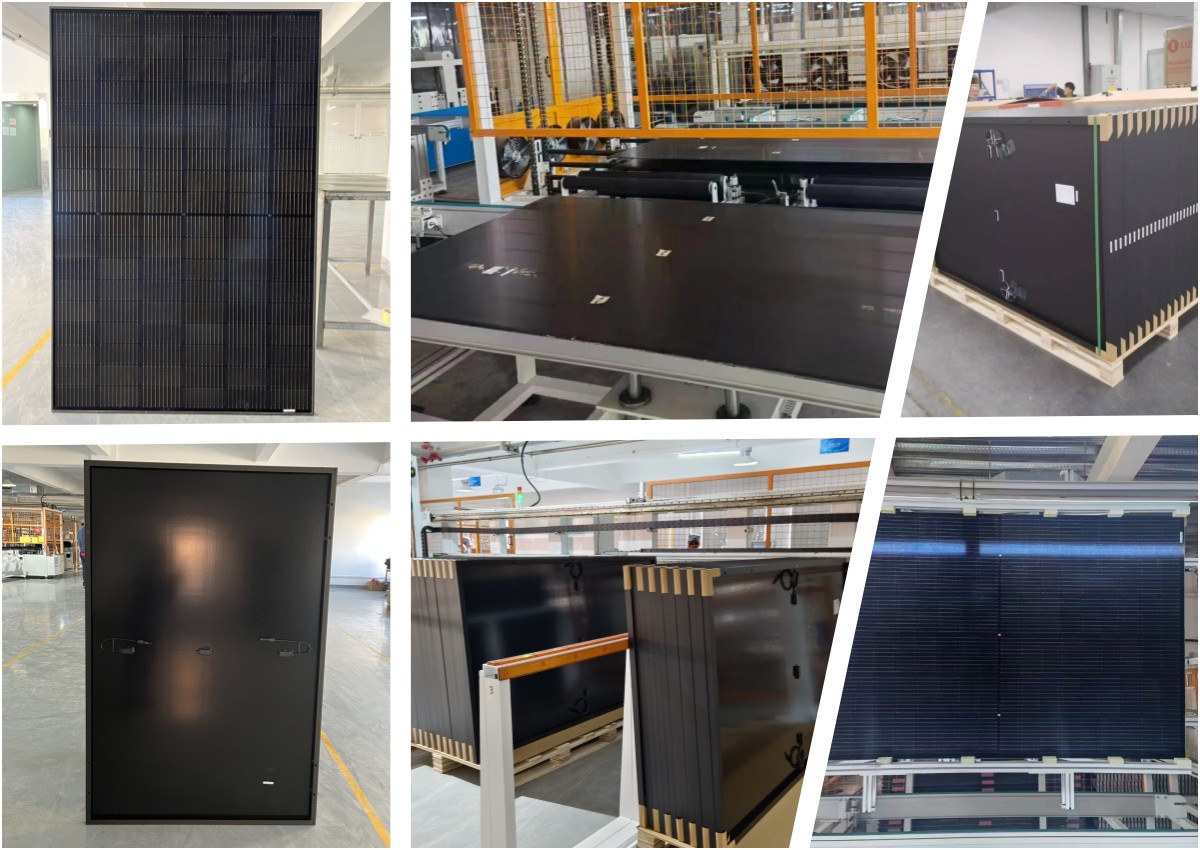

Physical Pictures

550W All Black Solar Panel

Product Production

550Watt All Black Monocrystalline Panel
