DAS Lightweight 415W 420W 425W 430W Tier 1 Flexible Solar Panel

DAS Lightweight 415W 420W 425W 430W Tier 1 Flexible Solar Panel
DAS Lightweight 415W 420W 425W 430W Tier 1 Flexible Solar Panel
DAS Lightweight 415W 420W 425W 430W Tier 1 Flexible Solar Panel

DAS Lightweight 415W 420W 425W 430W Tier 1 Flexible Solar Panel

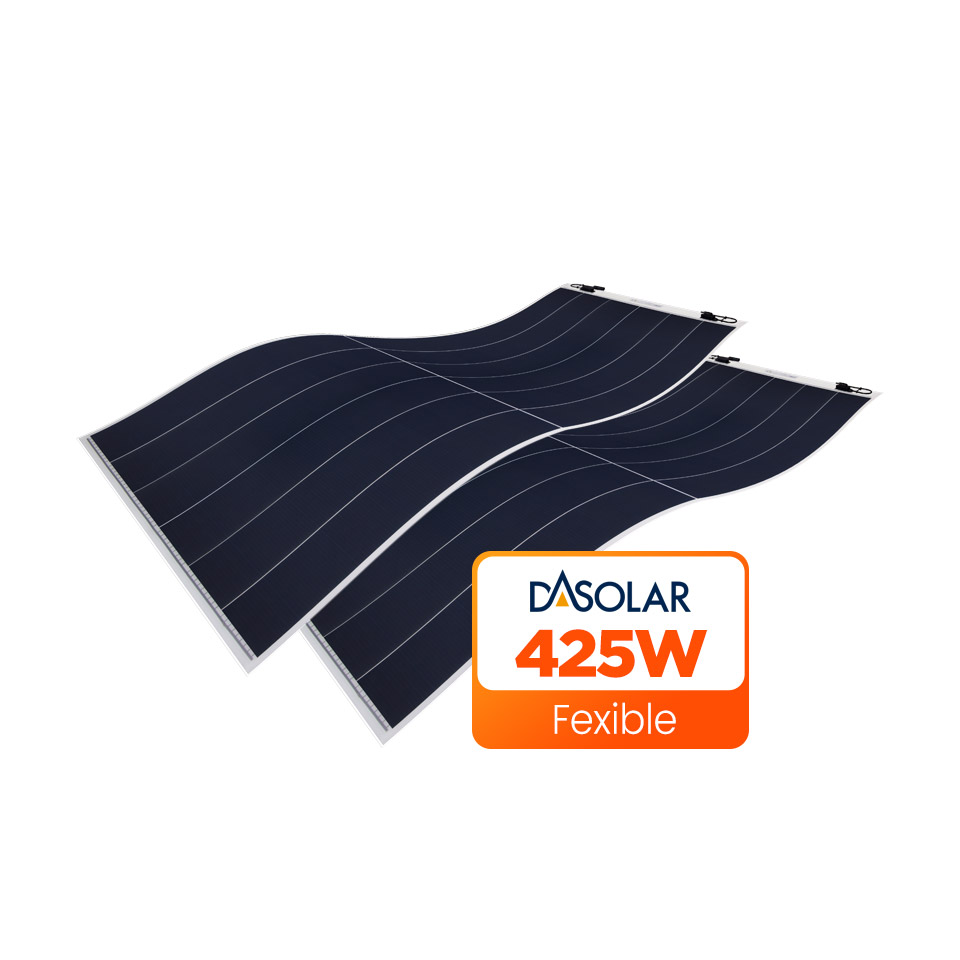

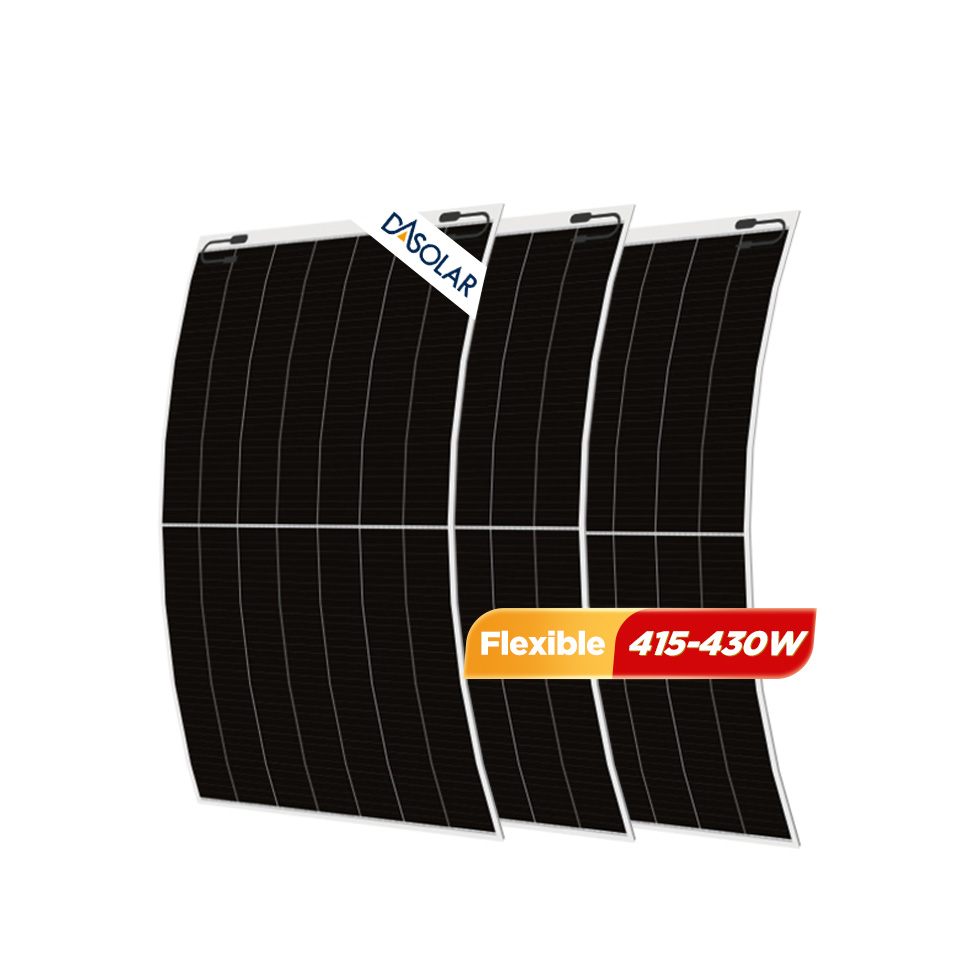

415W-430W Shingled Module/Lightweight FlexibleSolar Panel

Module  DAS-LOJP 415W-430W
Cells Type MONO CELL
No. of Cells
144 (6x24)
Panel Efficiency:
20.8%
Panel Dimenstion (LxWxT)
1985*1165*30mm
Weight
22kg
Max Bending Degree 30 °
Inquire Now

Main Features Of Panel
  • High efficiency up to 20.8%
  • 4MM thickness.Max bending degree:30°
  • Lightweight shingled module with high density
  • Don't need mounting brackets any more,can be easily and quickly installed on the top and ceilings
  • 25 year linear power warranty.
  • Soft and graceful extension of light energy.



Product Parameter

Module No.  DAS-LOJP 415-430W
Maximum Power (Pmax) 415W 420W 425W 430W
Open-circuit Voltage (Voc) 50.40V 50.45V 50.50V 50.55V
Maximum Power Voltage( Vmp) 41.71V 41.91V 42.11V 42.31V
Short-circuit Current (Isc) 10.51A 10.58A 10.65A 10.72A
Maximum Power Current (lmp) 9.95A 10.03A 10.10A 10.17A
Module Efficiency (%) 20.00% 20.30% 20.50% 20.8%
STC  (Standard Test Environment:): lrradiance 1000W/m2, Cell temperature 25℃ , Spectrum AM1.5

Product Details
black fframe photovoltaic module

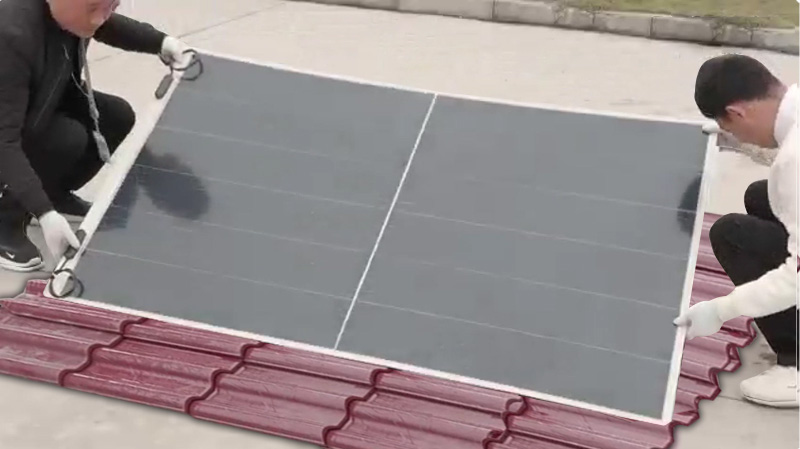

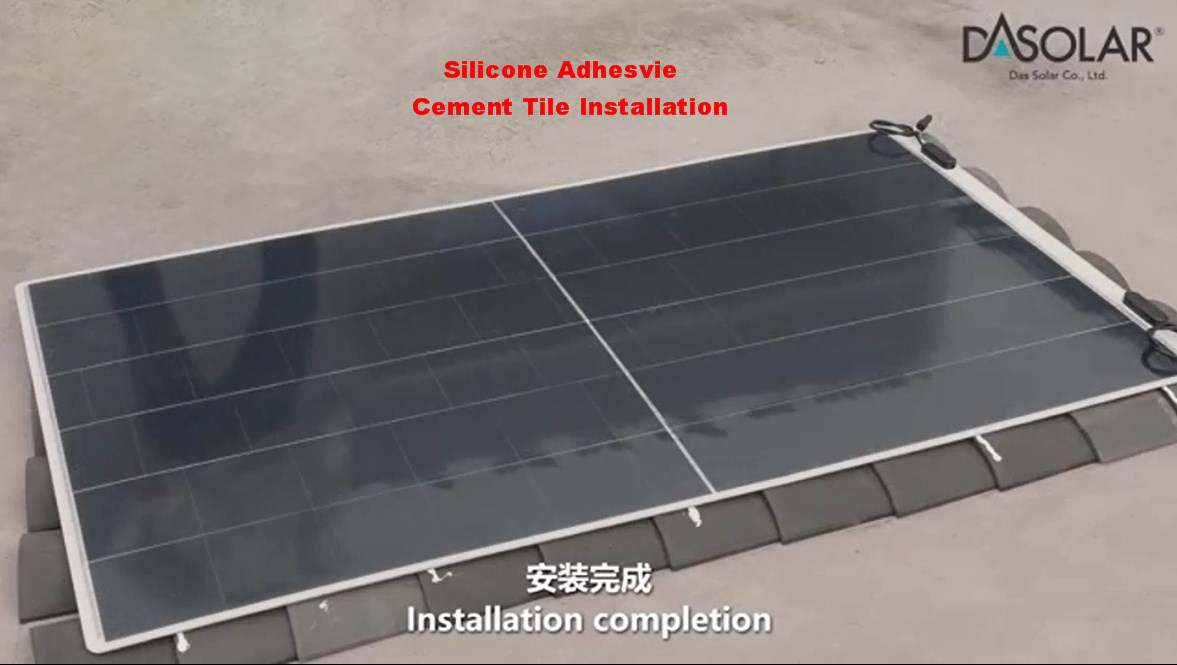

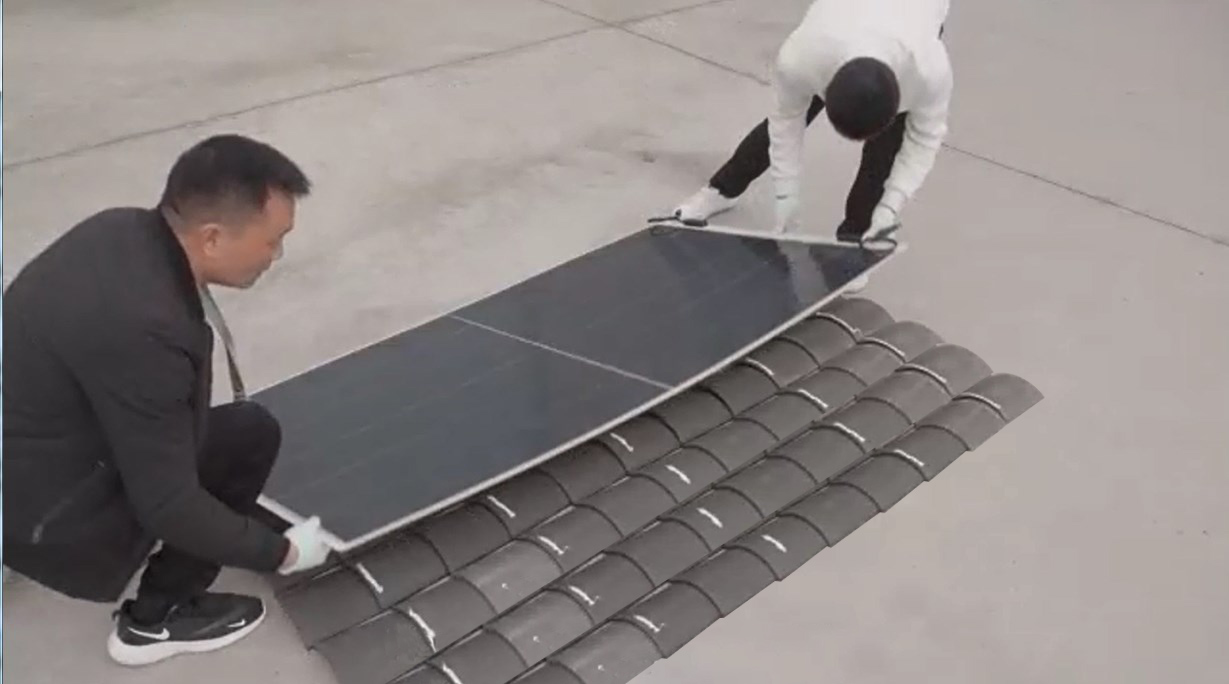

Installation

Easily and quickly installed on the roof and ceilings

Excellent Appearance and Performance

Lightweight module ,flexible cells

Thin Film Solar Panel

4mm thickness
550 solar panel black frame

HDM Technology

Shingled module with high density

Max bending degree

30°

Product Liability Insurance

Quality insured by SINOSOLAR LAB(Up $1,000,000).

Product Production

550W Perc Monocrystalline Panel
