Jinko Bifacial Double Glass 560W 570W 580Wp Panels Solares N Type Solar Panel

Jinko Bifacial Double Glass 560W 570W 580Wp Panels Solares N Type Solar Panel
Jinko Bifacial Double Glass 560W 570W 580Wp Panels Solares N Type Solar Panel
Jinko Bifacial Double Glass 560W 570W 580Wp Panels Solares N Type Solar Panel
Jinko Bifacial Double Glass 560W 570W 580Wp Panels Solares N Type Solar Panel

Jinko Bifacial Double Glass 560W 570W 580Wp Panels Solares N Type Solar Panel

Jinko Bifacial Module with Dual Glass 560W 565W 570W 575W 580W Mono Tiger Neo N Type Solar Panels

Cell Type
N type Mono-crystalline
No. of Cells
144 (2x72)
Panel Dimensions
2278x1134x30mm
(89.69x44.65x1.18inch)
Weight
32kg (70.55 lbs)
Junction box
IP 68 Rated
Packing
36pcs/pallet, 720pcs/40HQ
Inquire Now


Advantages of Jinko N-Type Solar Panel
  • Featuring high efficiency and high power, N-Type modules improve the installed capacity of a PV system and save BOS costs at the same installation area.
  • Thanks to their advantages, like high Bifacial ratio, Low operation temperature, low power Degradation, Excellent performance in low irradiation, etc., the modules offer higher power generation.
  • Low BOS cost overlays. High-power generation offers the best rate of return for power plant investors.



Jinko N Type Solar Panel



Product Parameter

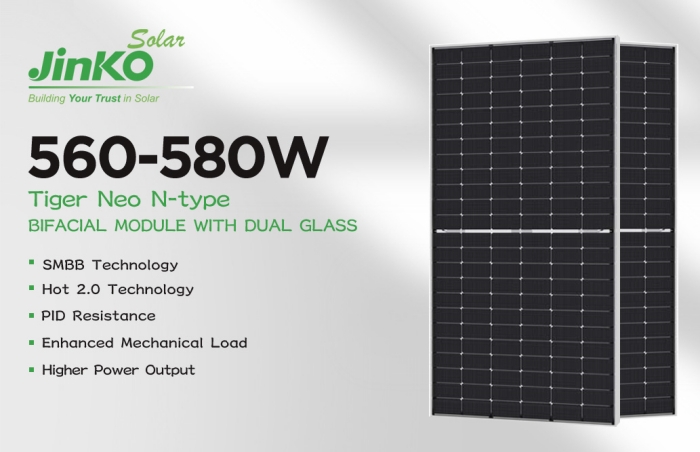

Tiger Neo N-type 72HL4-BDV 560-580 Watt
(BIFACIAL MODULE WITH DUAL GLASS  N-Type)
Module Type JKM560N-72HL4-BDV JKM565N-72HL4-BDV JKM570N-72HL4-BDV JKM575N-72HL4-BDV JKM580N-72HL4-BDV
　 STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 560Wp 421Wp 565Wp 425Wp 570Wp 429Wp 575Wp 432Wp 580Wp 436Wp
Maximum Power Voltage (Vmp) 41.95V 39.39V 42.14V 39.52V 42.29V 39.65V 42.44V 39.78V 42.59V 39.87V
Maximum Power Current (Imp) 13.35A 10.69A 13.41A 10.75A 13.48A 10.81A 13.55A 10.87A 13.62A 10.94A
Open-circuit Voltage (Voc) 50.67V 48.13V 50.87V 48.32V 51.07V 48.51V 51.27V 48.70V 51.47V 48.89V
Short-circuit Current (Isc) 14.13A 11.41A 14.19A 11.46A 14.25A 11.50A 14.31A 11.55A 14.37A 11.60A
Module Efficiency STC (%) 21.68% 21.87% 22.07% 22.26% 22.45%
Test at STC :            Irradiance 1000W/m2              Cell Temperature 25°C               AM=1.5
Test at NOCT :        Irradiance 800W/m2               Ambient Temperature 20°C        AM=1.5        Wind Speed 1m/s

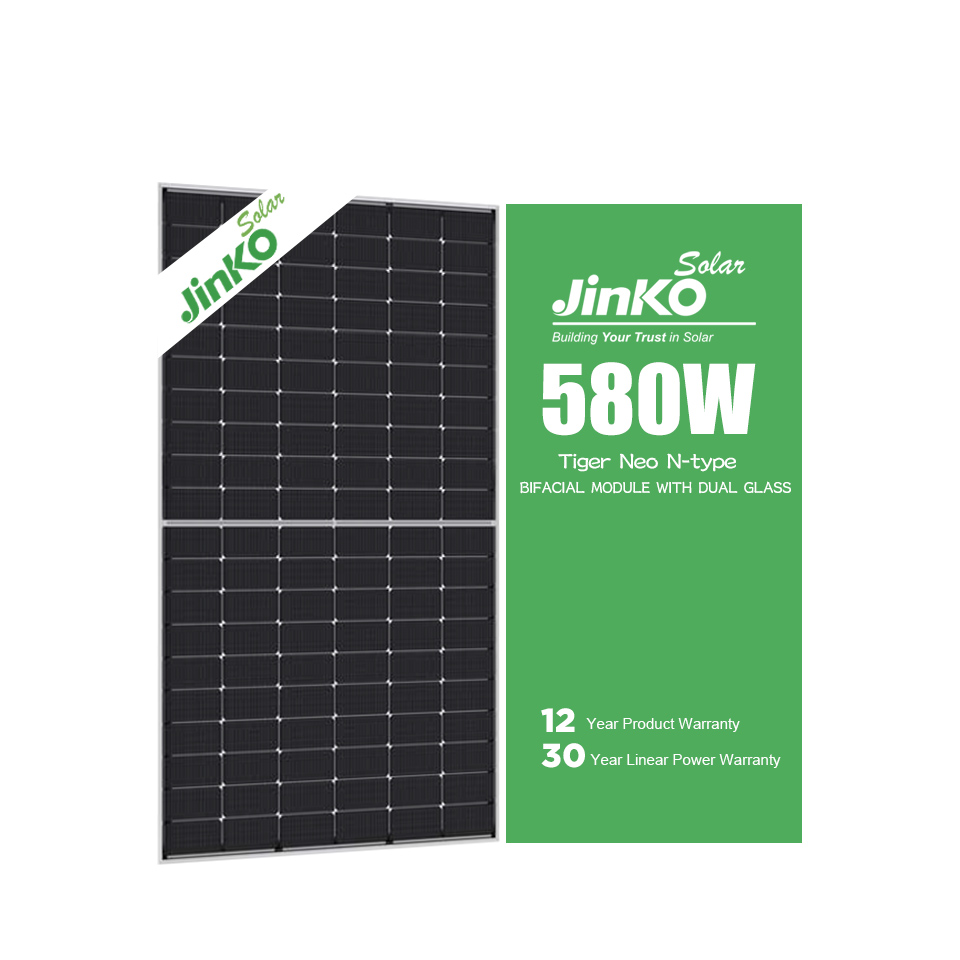

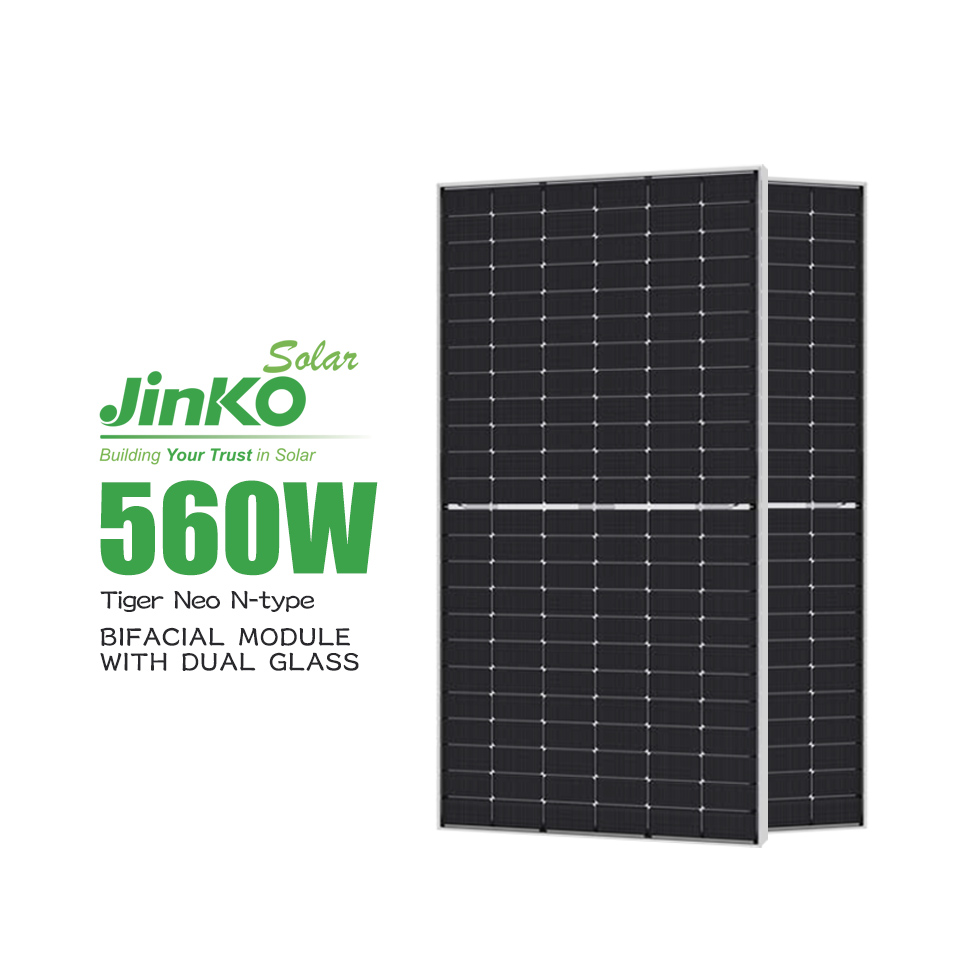

  1. Jinko N Type Solar Panel 560W

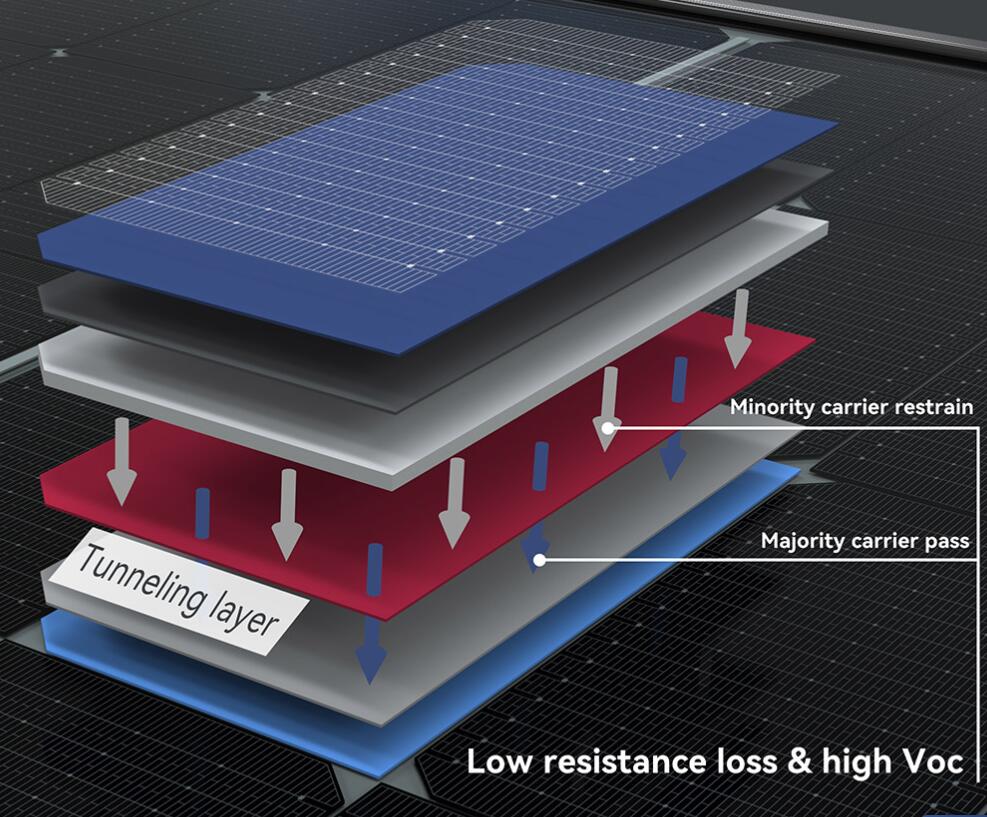

    TOPCon Technology Innovation



    1. Main stream market product : N type PV module with TOPCon technology,

    2. Highest Average Cell Efficiency of Jinkosolar's N-type TOPCon Cell: >25.1%

    3. Highest Average Module Efficiency of Jinkosolar’s N-type TOPCon Panel: >22%

    4.  More Power Productivity per Watt

    5. Longer Generation Time of N Type  than P Type Solar panel

  2. 565W Jinko N type Module

                    16 Busbar



    1. N type solar  panel  has more busbars (16BB) than P type solar panel (usually 10BB)

    2. Increase light receving area

    3. Reduce risistance loss

  3.
Jinko Solar Panel Price 570WTopCon N Type 580W
Jinko N Type Panels 575W
Solar Panels N Type Jinko
