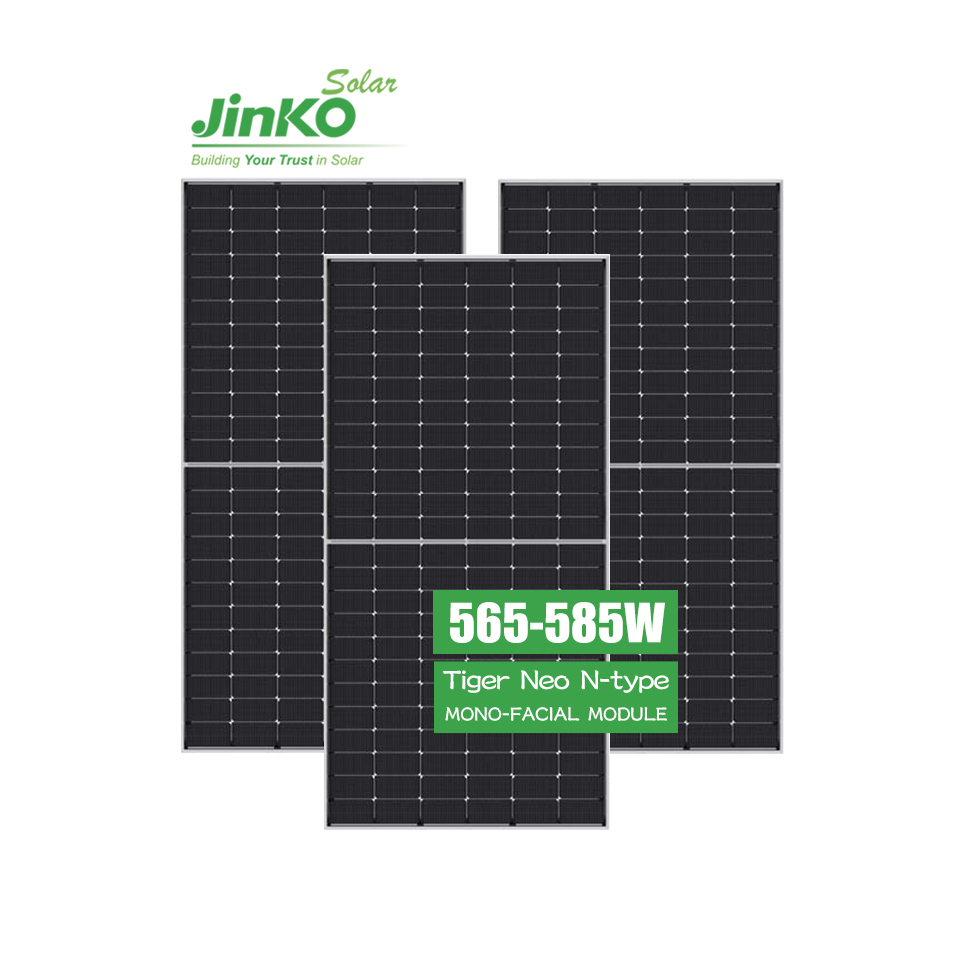

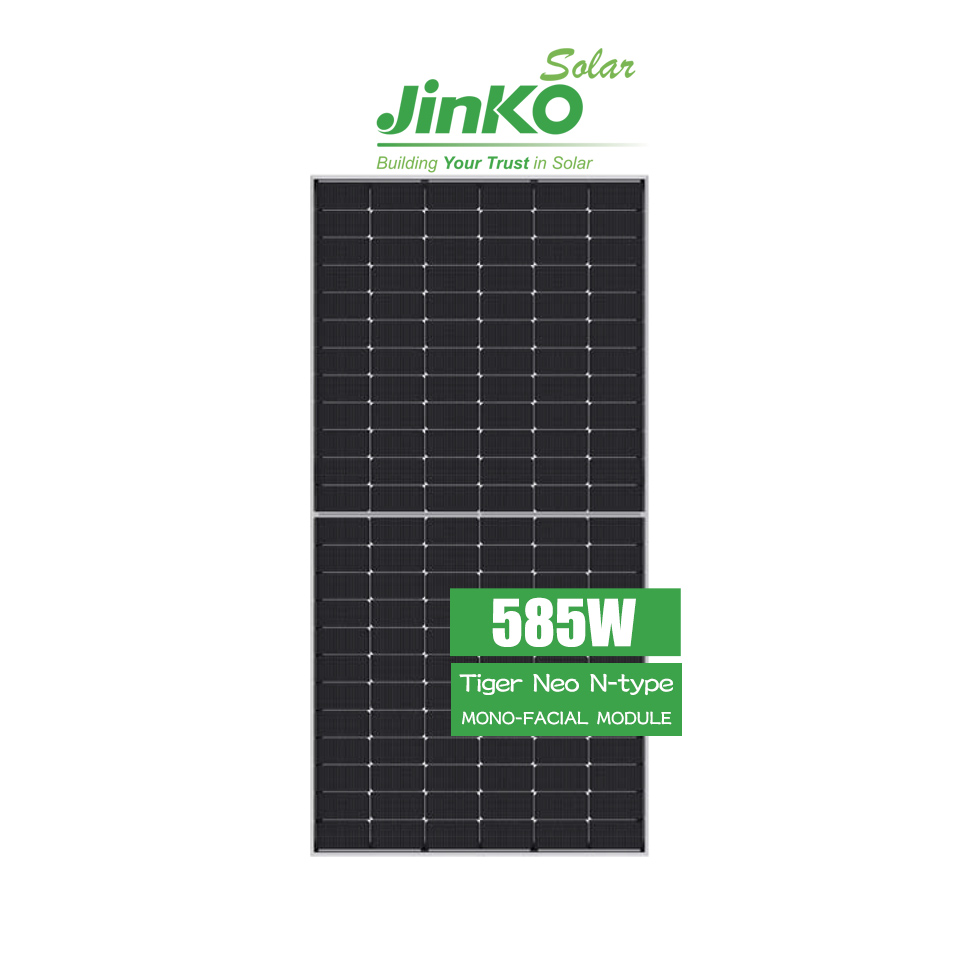

Good Performance JKM565-585N-72HL4-(V) 560W 565W 585W Jinko TopCon N Type Solar Panel

Good Performance JKM565-585N-72HL4-(V) 560W 565W 585W Jinko TopCon N Type Solar Panel
Good Performance JKM565-585N-72HL4-(V) 560W 565W 585W Jinko TopCon N Type Solar Panel
Good Performance JKM565-585N-72HL4-(V) 560W 565W 585W Jinko TopCon N Type Solar Panel

Good Performance JKM565-585N-72HL4-(V) 560W 565W 585W Jinko TopCon N Type Solar Panel

565-585W All Black/N Type Bifacial Double-glass Solar Panel

Module  JKM565-585N-72HL4-(V)
Cells Type
182x91mm
No. of Cells
144 (6x24)
Panel Efficiency:
22.65%
Panel Dimenstion (LxWxT)
2278x1134x30mm
Weight
28kg
Packing
31pcs/pallet,620pcs/40HQ
Inquire Now

Main Features Of Panel
  • High efficiency up to 22.65%
  • Positive power tolerance of 0~+3%.
  • Excellent appearance and performance,mono faciao solar cell,excellent Anti-PID performance
  • Enhanced Mechanical Load: Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
  • 12 year product warranty,30 year linear power warranty,0.40% annual degradation over 30 years



Product Parameter

Module No. JKM565-585N-72HL4-(V)
Maximum Power (Pmax) 565W 570W 575W 580W 585W
Open-circuit Voltage (Voc) 50.60V 50.74V 50.88V 51.02V 51.16V
Maximum Power Voltage( Vmp) 41.92V 42.07V 42.22V 42.37V 42.52V
Short-circuit Current (Isc) 14.23A 14.31A 14.39A 14.47A 14.55A
Maximum Power Current (lmp) 13.48A 13.55A 13.62A 13.69A 13.76A
Module Efficiency (%) 21.87% 22.07% 22.26% 22.45% 22.65%
NOCT 45士2℃
Temperature Coefficient of Isc +0.045%/℃
Temperature Coefficient of Voc -0.250%/℃
 Nominal Max.Power(pmax) -0.290%/℃
STC  (Standard Test Environment:): lrradiance 1000W/m2, Cell temperature 25℃ , Spectrum AM1.5

Product Details

black fframe photovoltaic module

Glass

A grade ,Antireflection Coating, 3.2mm High Transmission,

EVA

Strong Resistance to high and low temperatures

Half Cut Technology

Increase the power of 5-10W, Less hot spot risk
550 solar panel black frame

PERC Cell Technology

Improve the photoelectric conversion efficiency about 1%

Three Appearance Optional

Black frame/Silver frame/Full black

Product Liability Insurance

Quality insured by SINOSOLAR LAB(Up $1,000,000).

Product Production

550W Perc Monocrystalline Panel
