182MM Half Cut Solar Panels 410W 420W 400W With Black Frame

182MM Half Cut Solar Panels 410W 420W 400W With Black Frame
182MM Half Cut Solar Panels 410W 420W 400W With Black Frame

182MM Half Cut Solar Panels 410W 420W 400W With Black Frame

Tiantech Solar Panels 400W 405W 410W 415W 420W Monocrystalline for Solar Power System

Module No. JH(390-410)-108M
Cells Type Mono 182x91mm
No. of Cells 108 pcs (6x18)
Panel Efficiency: up to 21%
Panel Dimenstion (LxWxT) 1722x1134x30mm
Weight 20.5kg
Packing

36pcs/pallet  936pcs/40HQ
Inquire Now
410W 400W Black Frame PV Module
  • Solar Panel 395W

    Solar Panel Encapsulation



    PV module production with 6 steps:



    (1) Glass -(2) EVA - (3) Cell- (4) EVA - (5) Backsheet-(6) Frame



  • Half cut cell solar panel 400W

    Glass for Solar Panel



    *A GRADE glasses which are made from large national facotries

    *Antireflection Coating, 3.2mm High Transmission,

  • Perc cell solar panel 405W

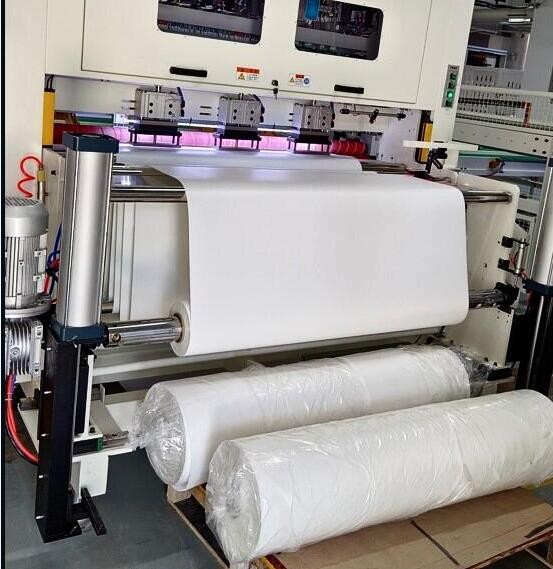

    EVA for Solar Panel


    Need EVA twice to during the production of solar power panels

    *Great EVA sealed film in China

    *Resistant to high and low temperatures

    *Sealed adhesive durability for 30 years warranty
  • 410W PV modules

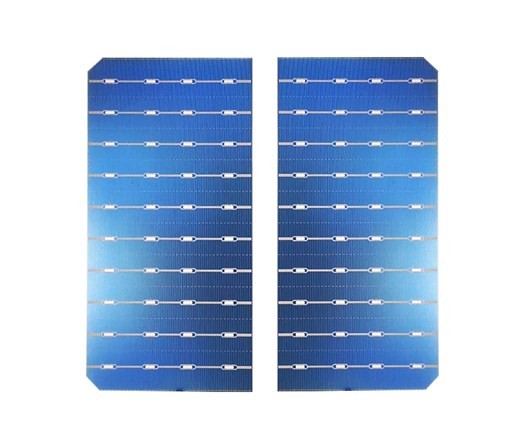

    Perc Half Cut Cell for Solar Panel

    *Perc Cell: improves the cell efficency in bad environment

    *Half Cell: use laser to half cut cells which can make more electircity

    *Solid PID resistance

    *10BB : which is better than 6BB or 9BB

  • Mono photovoltaic solar panel 400W
    Frame
    *Heavy thickness anodized aluminum alloy, for long-term outside use.

    *Seal-lip design glue injection

    *Silver or black frames for your choices


    Junction Box

    *Conventional standalone engineering custom edition

    *Good heat dissipation performance, low loss, long service life

    *Watherproof grade IP 68, 3 Bypass Diodes



    Cable (Including connector)

    *4.0mm2, Portrait: 350mm(+) / 350mm(-)

    *Landscape: 1400mm(+) / 1400mm(-)

    *MC4 Compatible

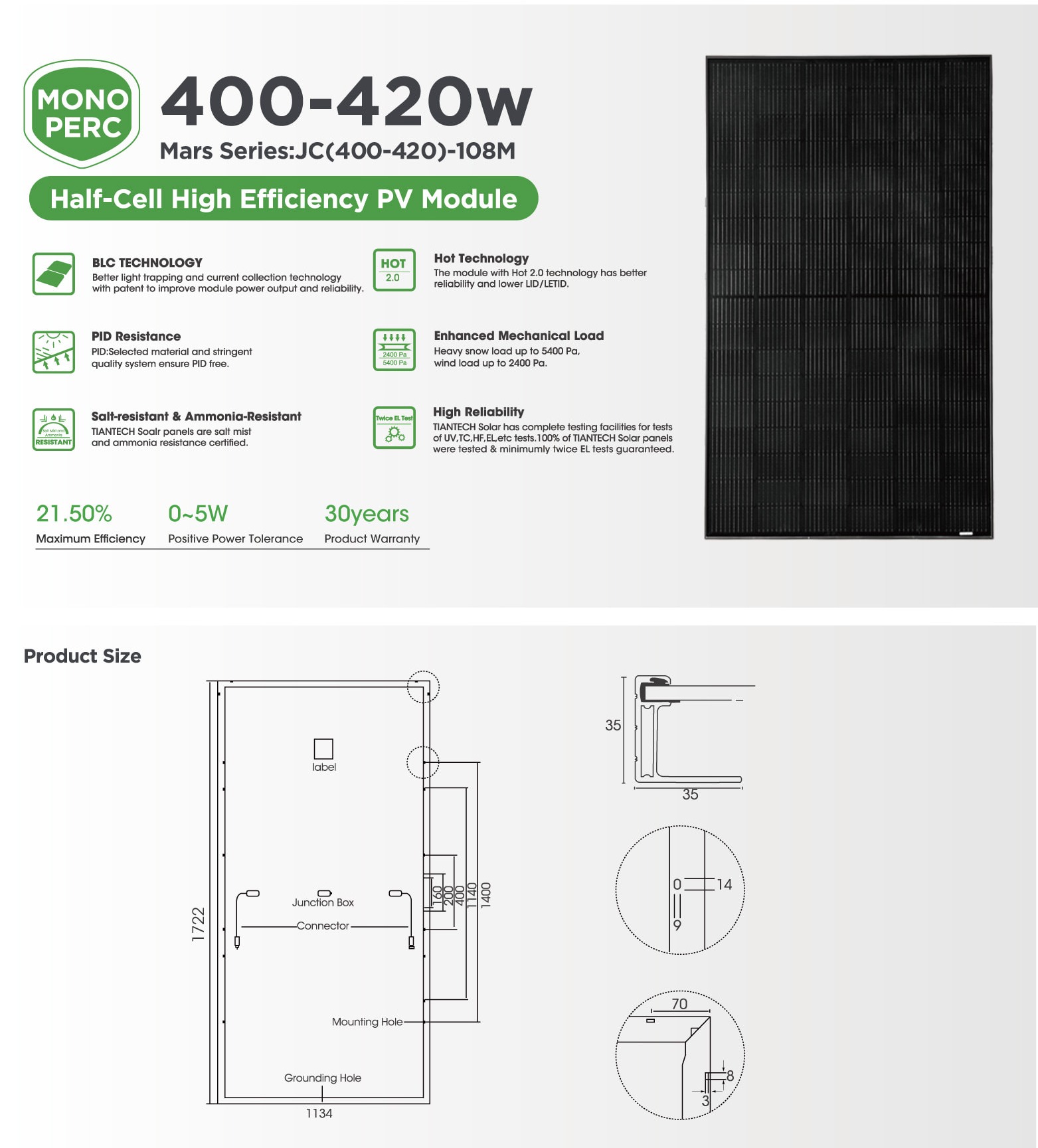

Product Specification

ELECTRICAL CHARACTERISTICS (at STC)
Module No. JC(400-420)-108M
Encapsulation Glass - EVA - Cell- EVA - Backsheet
Maximum Power (Pmax) 400W 405W 410W 415W 420W
Open-circuit Voltage (Voe) 37.14V 37.23V 37.32V 37.41V 37.50V
Maximum Power Voltage( Vmp) 31.01V 31.21V 31.45V 31.69V 31.93V
Short-circuit Current (Isc) 13.79A 13.87A 13.95A 14.03A 14.11A
Maximum Power Current (lmp) 12.90A 12.98A 13.04A 13.10A 13.16A
Module Efficiency (%) 20.48% 20.74% 21% 21.25% 21.5%
Power Tolerance 0～+5W
Temperature Coefficient of Isc 0.05%/℃
Temperature Coefficient of Voc -0.31%/℃
Temperature Coefficient of Pmax -0.35%/℃
STC  (Standard Test Environment:): lrradiance 1000W/m2, Cell temperature 25℃ , Spectrum AM1.5

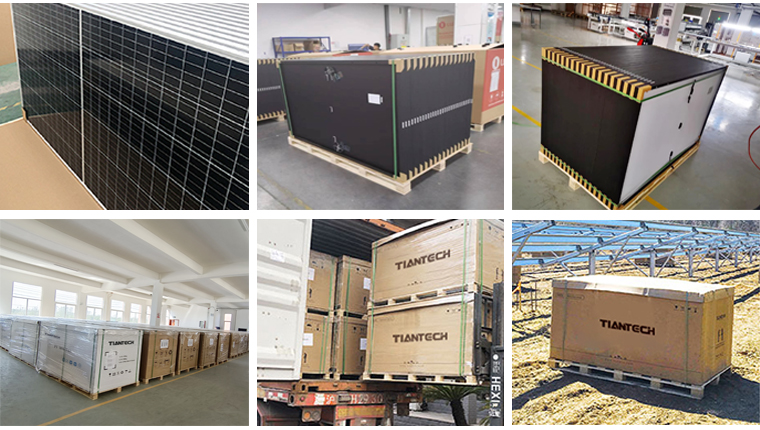

Product Packing

410W 420W Black Frame PV Panel
