500W 505W 520W Half Cut PID Resistance Monocrystalline PV Module

500W 505W 520W Half Cut PID Resistance Monocrystalline PV Module

500W 505W 520W Half Cut PID Resistance Monocrystalline PV Module

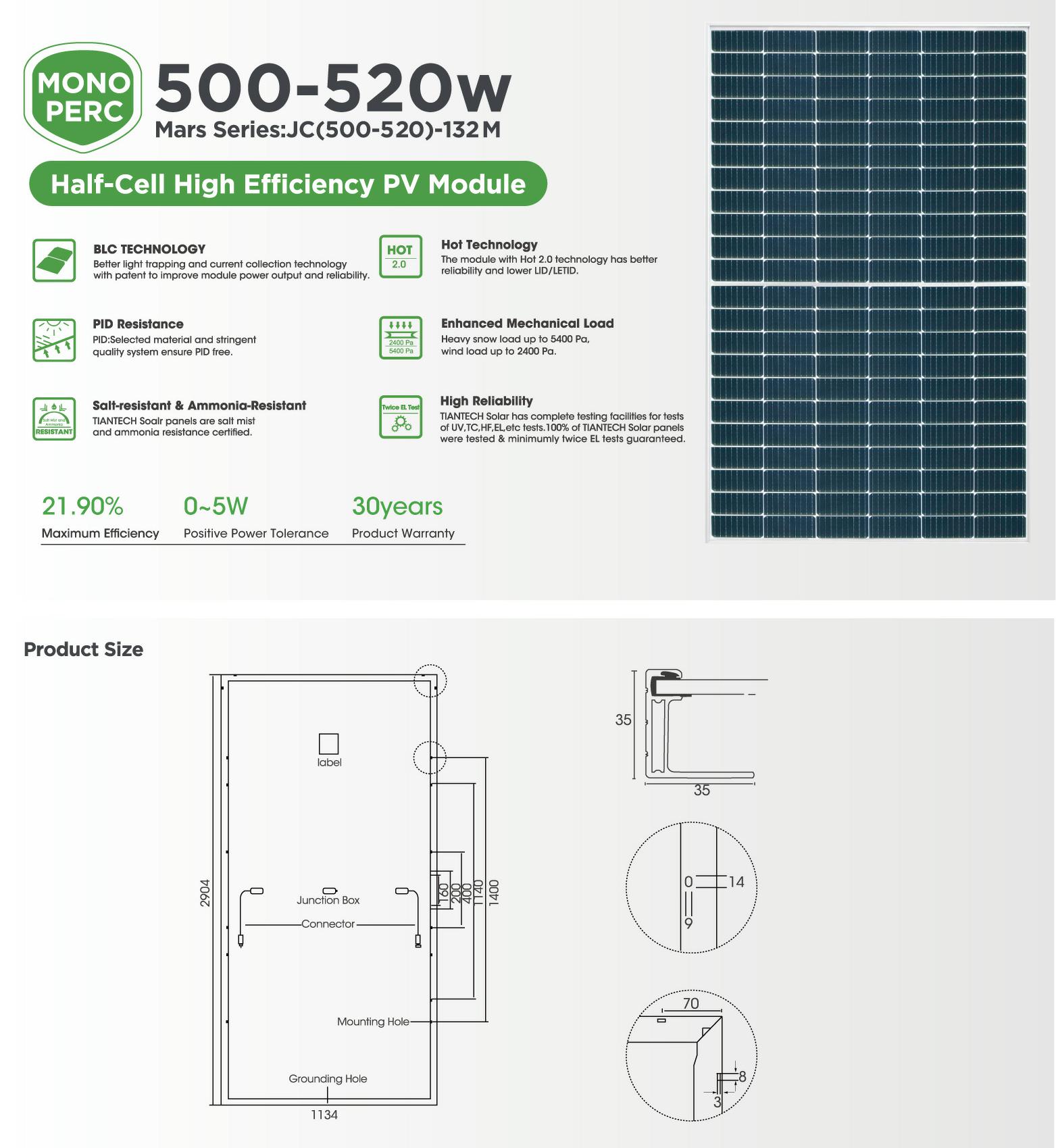

500-520W Sliver Frame/Black Frame/All Black Half Cut Monocrystalline Panel

Module No.
JC(500-520)-132M
Cells Type
182x91mm
No. of Cells
132 (6x22)
Panel Efficiency:
21.90%
Panel Dimenstion (LxWxT)
2094x1134x30mm
Weight
26.5kg
Packing
31pcs/pallet,682pcs/40HQ
Inquire Now

Main Features Of Panel
  • Better light trapping and current collection technology
  • Selected material and stringent quality system ensure PID free.
  • Salt-resistant & Ammonia-Resistant
  • The module with Hot 2.0 technology has better reliability and lower LID/LETID
  • Applicable to harsh environment of deserts, farmlands and seasides farmlands and seasides
  • Much lower risk of Hot spot

500W 520W Half Cut Silver Frame Panel

Product Parameter

Module No. JC(500-520)-132M
Maximum Power (Pmax) 500W 46.00V 510W 515W 520W
Open-circuit Voltage (Voe) 45.80V 38.90V 46.20V 46.40V 46.60V
Maximum Power Voltage( Vmp) 38.70V 13.78A 39.10V 39.30V 39.50V
Short-circuit Current (Isc) 13.72A 13.72A 13.84A 13.90A 13.96A
Maximum Power Current (lmp) 12.92A 12.98A 13.04A 13.10A 13.16A
Module Efficiency (%) 21.06% 21.27% 21.48% 21.69% 21.9%
Power Tolerance 0～+5W
Temperature Coefficient of Isc 0.05%/℃
Temperature Coefficient of Voc -0.31%/℃
Temperature Coefficient of Pmax -0.35%/℃
STC  (Standard Test Environment:): lrradiance 1000W/m2, Cell temperature 25℃ , Spectrum AM1.5

Product Details

silver frame photovoltaic module

Glass

A grade ,Antireflection Coating, 3.2mm High Transmission,

EVA

Strong Resistance to high and low temperatures

Half Cut Technology

Increase the power of 5-10W, Less hot spot risk
half cut perc panel 500w

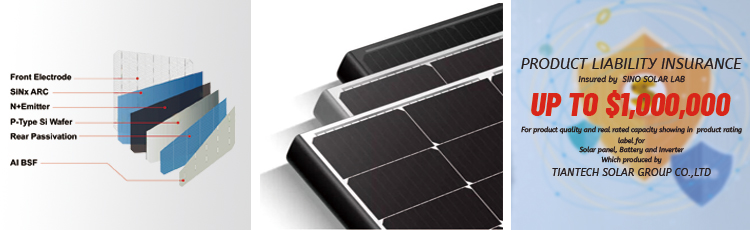

PERC Cell Technology

Improve the photoelectric conversion efficiency about 1%

Three Appearance Optional

Black frame/Silver frame/Full black

Product Liability Insurance

Quality insured by SINOSOLAR LAB(Up $1,000,000).

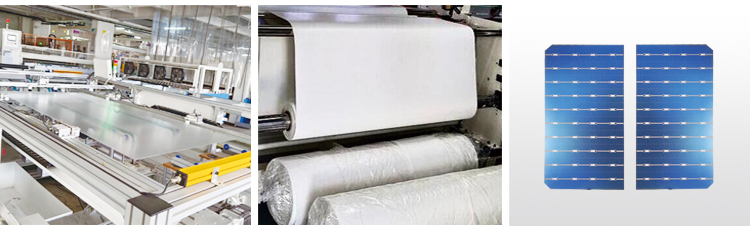

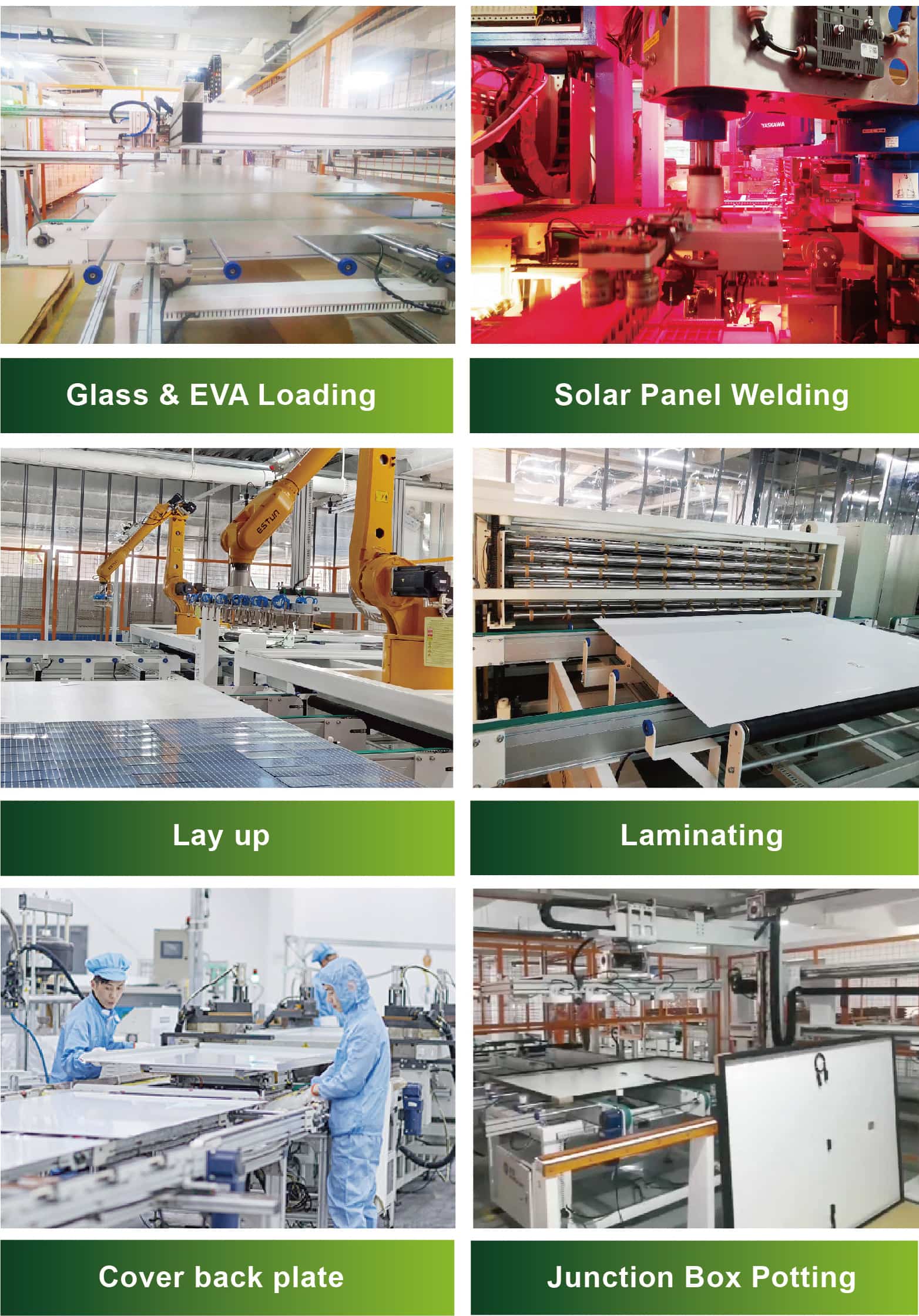

Product Production

505w Perc Monocrystalline HC Panel





Hot Tags : Monocrystalline Half Cut Perc Panel Half Cell Perc HC PV Module P-Type Half Cut Monocrystalline Panel Half Cut 500W All Black PV Module Half Cell PERC Half Cell Photovoltaic Panel 505Watt Silver Frame Half Cut Solar Panel
