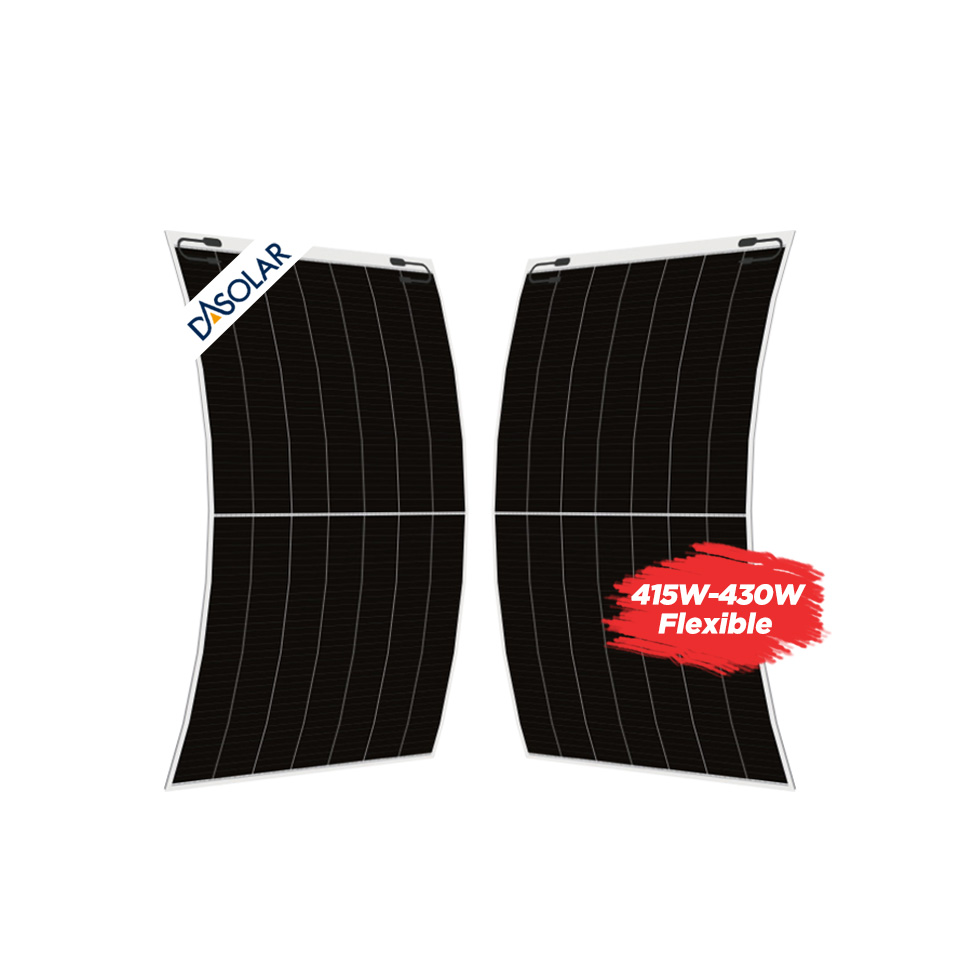

LightWeight Shingled Solar Module 415W 420W 430W DAS Flexible Solar Panels

LightWeight Shingled Solar Module 415W 420W 430W DAS Flexible Solar Panels
LightWeight Shingled Solar Module 415W 420W 430W DAS Flexible Solar Panels
LightWeight Shingled Solar Module 415W 420W 430W DAS Flexible Solar Panels

LightWeight Shingled Solar Module 415W 420W 430W DAS Flexible Solar Panels

Cell Type
P type Mono-crystalline
Module Size
1985x1165x4 mm
Module Thickness
4.0mm
Module Weight
9.9kg
Junction box
IP 68, 3 bypass diodes
Packing
60pcs/pallet, 480pcs / 20GP, 1080pcs / 40HQ
Inquire Now



Product Description

light weight module



DAS-LOJP 415W~430W
Electrical Parameters (STC * )
Nominal Max. Power(Pmax/W) 415W 420W 425W 430W
Open Circuit Voltage(Voc/V) 50.40 50.45 50.50 50.55
Short Circuit Current(Isc/A) 10.51 10.58 10.65 10.72
Operating Voltage(Vmp/V) 41.71 41.91 42.11 42.31
Operating Current(Imp/A) 9.95 10.03 10.10 10.17
Efficiency(%) 20.0 20.3 20.5 20.8
STC * : Irradiance = 1000 W/m², Cell Temperature = 25°C, AM = 1.5
Electrical Parameters (NMOT * )
Nominal Max. Power(Pmax/W) 305W 308.7W 312.4W 316.1W
Open Circuit Voltage(Voc/V) 46.12 46.16 46.21 46.25
Short Circuit Current(Isc/A) 8.47 8.53 8.58 8.64
Operating Voltage(Vmp/V) 38.32 38.47 38.66 38.85
Operating Current(Imp/A) 7.96 8.02 8.08 8.14
NMOT *: Irradiance = 800 W/m², Ambient Temperature = 20°C, AM = 1.5，Wind Speed = 1 m/s
  • Lightweight Solar Module
    Lightweight Shingled Module with High Density



    l  Weight: 4 KG/m2 ,  Lighter than other modules,

    l  192W/m2, HDM technology

    l  Warranty: 25 years linear power degradation warranty

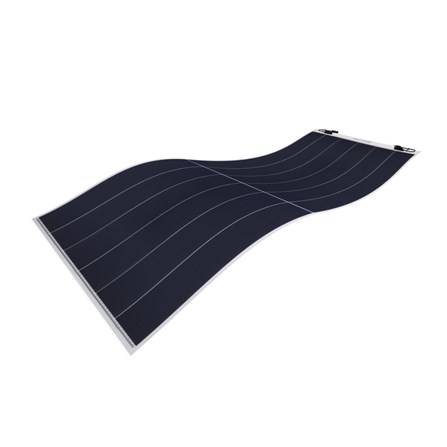

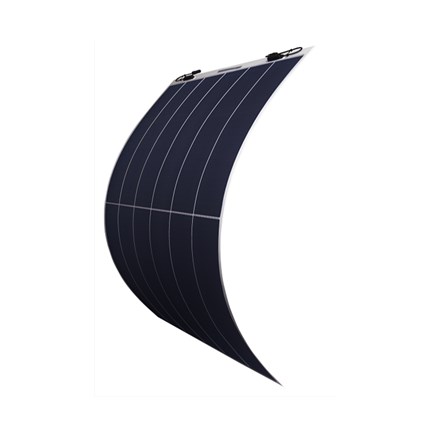

  • flexible solar panel





    Soft and graceful extension of light engergy



    l  Softer: fitting the curved surfaces better

    l  Thinner: 4 mm in thickness

    l  Max.bending degree: 30°



















  • shingled solar panel

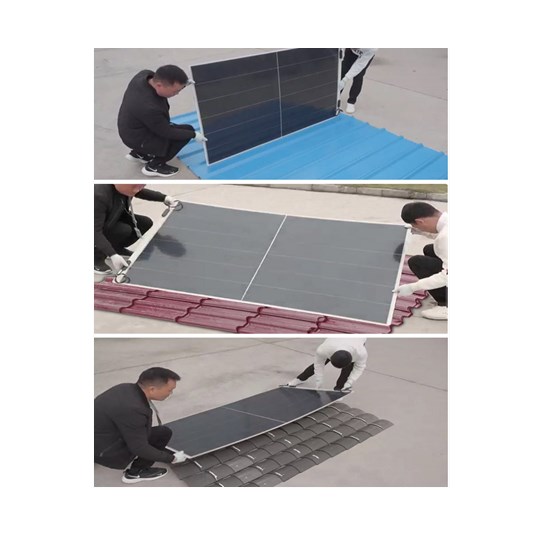

    Installation

    (don't need mounting brackets any more)



    l  Installation cost : decreased by 50%

    l  Easy and quick installation: one module could be installed in 40 seconds by 2 workers, cost reduction is more than 70%

    l  Installtion Ways :

        (a) Double sided adhesive Tape

        (b)  Silicone adhesive





Project
Flexible PV Module
