Jinko N Type Solar Panle 610W 620W 630W TopCon PV Module for Solar System

Jinko N Type Solar Panle 610W 620W 630W TopCon PV Module for Solar System
Jinko N Type Solar Panle 610W 620W 630W TopCon PV Module for Solar System
Jinko N Type Solar Panle 610W 620W 630W TopCon PV Module for Solar System
Jinko N Type Solar Panle 610W 620W 630W TopCon PV Module for Solar System

Jinko N Type Solar Panle 610W 620W 630W TopCon PV Module for Solar System

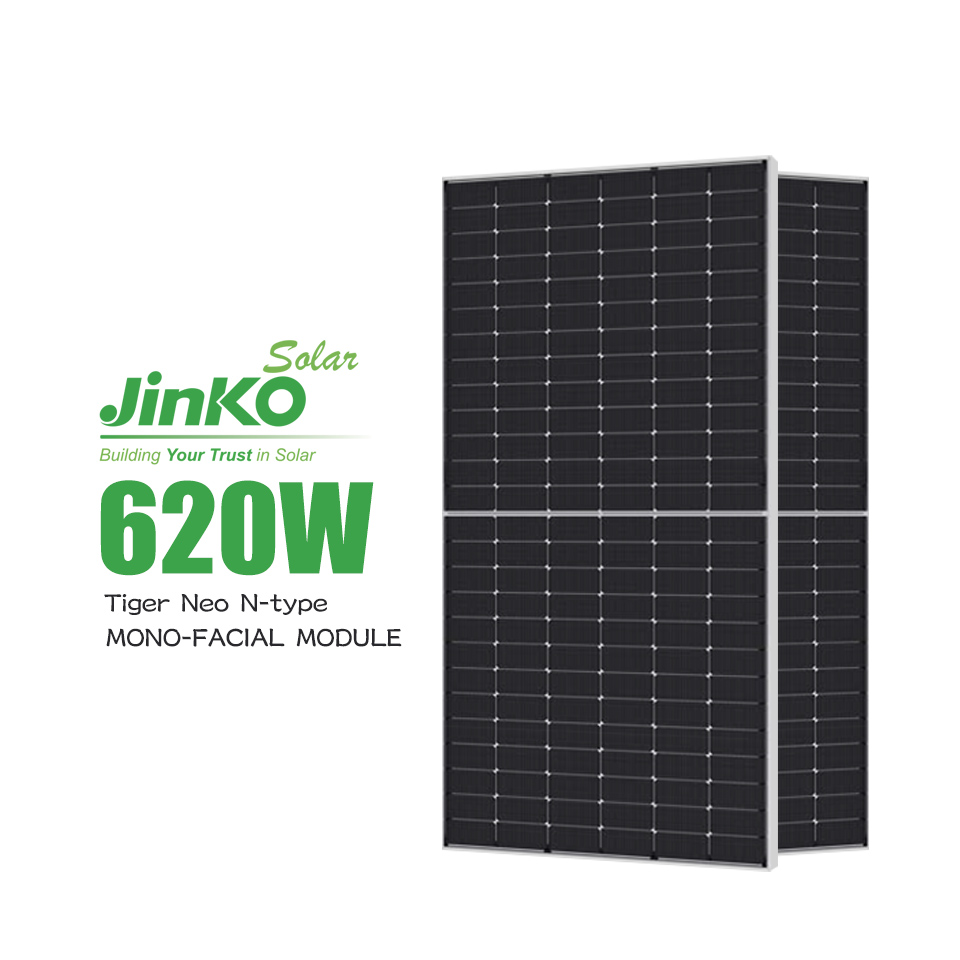

Jinko Tiger Neo N-Type 78HL4-(V) 610W 615W 620W 625W 630W Mono Facial Module

Cell Type
N type Mono-crystalline
No. of Cells
156 (2x78)
Panel Dimensions
2465x1134x35mm
(97.05x44.65x1.38inch)
Weight
30.6kg (67.46 lbs)
Junction box
IP 68 Rated
Packing
31pcs/pallet, 496pcs/40HQ
Inquire Now


Best Advantages of N-Type Solar Panel
  • 30 Years  :         Long warranty for power production
  • 22%-23.23% :     Highest efficiency
  • 0.4% :                Low yearly degradation
  • 80±5% :             Best bifaciality
  • -0.29% / °C :     Lowest temperature coefficient



N Type Solar Panel 610W

Product Parameter

  Tiger Neo N-type 78HL4-(V) 610-630 Watt
(MONO-FACIAL MODULE   N-Type)
Module Type JKM610N-78HL4
JKM610N-78HL4-V		 JKM615N-78HL4
JKM615N-78HL4-V		 JKM620N-78HL4
JKM620N-78HL4-V		 JKM625N-78HL4
JKM625N-78HL4-V		 JKM630N-78HL4
JKM630N-78HL4-V
　 STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 610Wp 459Wp 615Wp 462Wp 620Wp 466Wp 625Wp 470Wp 630Wp 474Wp
Maximum Power Voltage (Vmp) 45.59V 42.28V 45.69V 42.39V 45.79V 42.50V 45.92V 42.61V 46.02V 42.72V
Maximum Power Current (Imp) 13.38A 10.85A 13.46A 10.91A 13.54A 10.97A 13.61A 11.03A 13.69A 11.09A
Open-circuit Voltage (Voc) 55.25V 52.48V 55.40V 52.62V 55.55V 52.77V 55.70V 52.91V 55.85V 53.05V
Short-circuit Current (Isc) 14.11A 11.39A 14.18A 11.45A 14.25A 11.50A 14.32A 11.56A 14.39A 11.62A
Module Efficiency STC (%) 21.82% 22.00% 22.18% 22.36% 22.54%
Test at STC :            Irradiance 1000W/m2              Cell Temperature 25°C               AM=1.5
Test at NOCT :        Irradiance 800W/m2               Ambient Temperature 20°C        AM=1.5        Wind Speed 1m/s

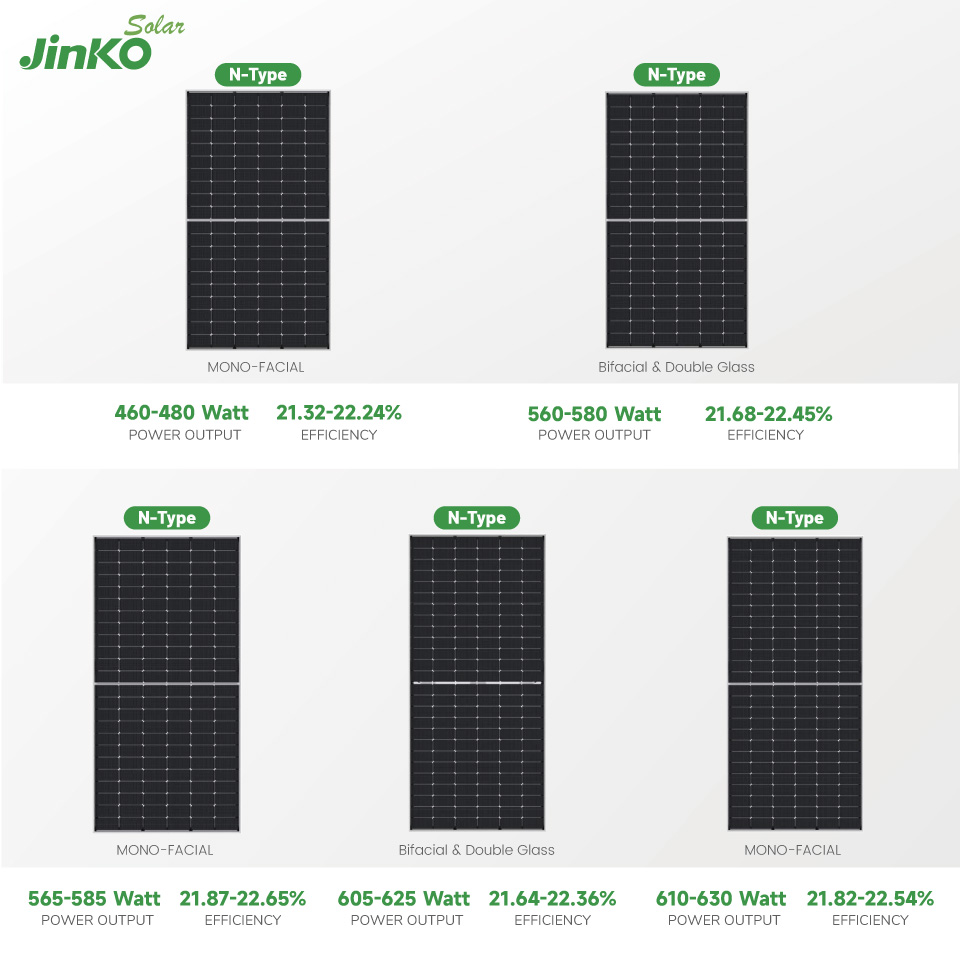

All Jinko TopCon N Type Solar Panel Series

N Type Solar Module 615W

Jinko Solar Engery 620WTopCon N Type Panels 625W
Solar Panels N Type Jinko 630W
N Type TopCon Solar Panel

Hot Tags : N Type PV Module jinko solar panel Bifacial N Type Solar Panel TopCon N Type Panels Solares Jinko Tiger Neo N-type Solar Panel Jinko N Type Solar Panels 630W
