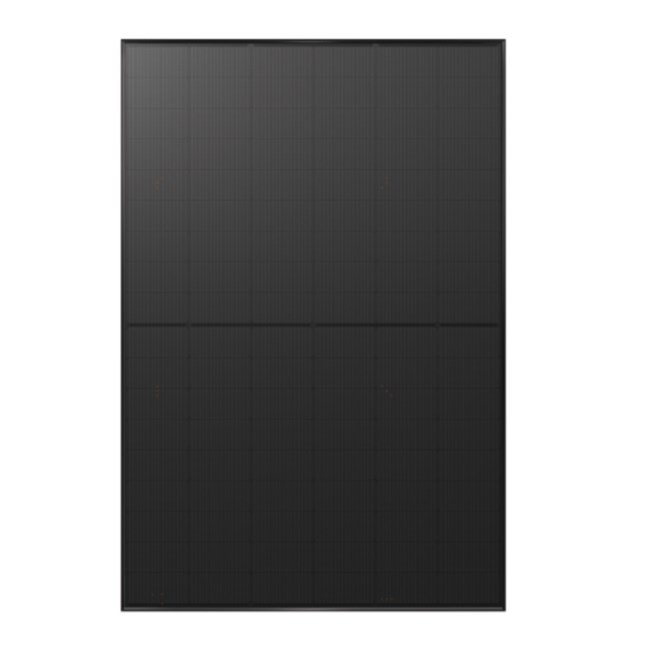

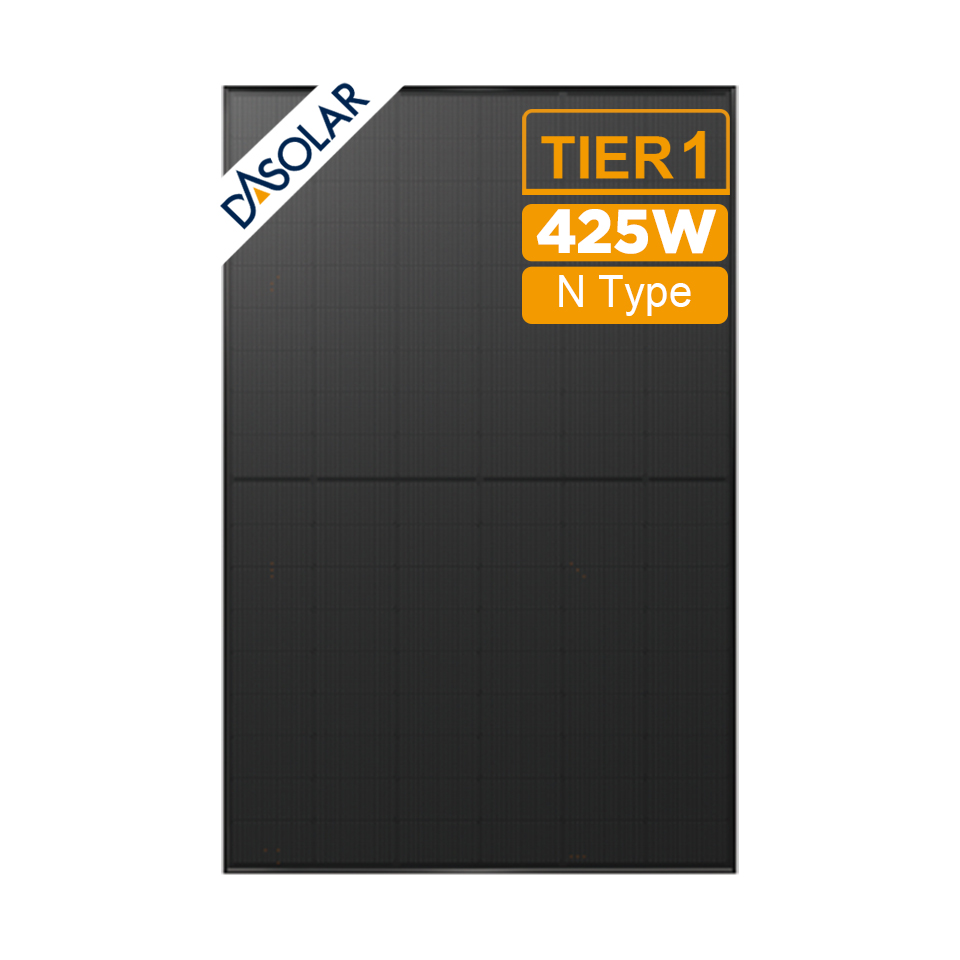

High Efficiency DAS-DH108NA Solar Panel 420W 425W 430W N Type TopCon Solar Panel All Black

High Efficiency DAS-DH108NA Solar Panel 420W 425W 430W N Type TopCon Solar Panel All Black
High Efficiency DAS-DH108NA Solar Panel 420W 425W 430W N Type TopCon Solar Panel All Black
High Efficiency DAS-DH108NA Solar Panel 420W 425W 430W N Type TopCon Solar Panel All Black

High Efficiency DAS-DH108NA Solar Panel 420W 425W 430W N Type TopCon Solar Panel All Black

420-440W All Black/N Type Bifacial Double-glass Solar Panel

Module  DAS-DH108NA 420W-440W
Cells Type
182x91mm
No. of Cells
144 (6x24)
Panel Efficiency:
21.80%
Panel Dimenstion (LxWxT)
1722x1134x30mm
Weight
20.5kg
Packing
36pcs/pallet,936pcs/40HQ
Inquire Now

Main Features Of Panel
  • High efficiency Leading module up to 22.5%
  • High quality Long-term Reliability.
  • Excellent appearance and performance,Bifacial solar cell,low risk of micro-crack
  • Higher power output even under low irradiance environments like on cloudy or foggy days.
  • More extensive application scenes,such as BIPV,snow field,vertical installation,high humidity,strong wind and desert region.



Product Parameter

Module No. DAS-DH108NA 420W-440W
Maximum Power (Pmax) 420W 425W 430W 435W 440W
Open-circuit Voltage (Voc) 38.48V 38.54V 38.60V 38.72V 38.88V
Maximum Power Voltage( Vmp) 32.02V 32.35V 32.68V 33.01V 33.26V
Short-circuit Current (Isc) 13.78A 13.79A 13.80A 13.89A 13.98A
Maximum Power Current (lmp) 13.12A 13.14A 13.16A 13.18A 13.23A
Module Efficiency (%) 21.50% 21.80% 22.00% 22.30% 22.50%
NMOT 42士2℃
Temperature Coefficient of Isc +0.045%/℃
Temperature Coefficient of Voc -0.250%/℃
 Nominal Max.Power(pmax) -0.300%/℃
STC  (Standard Test Environment:): lrradiance 1000W/m2, Cell temperature 25℃ , Spectrum AM1.5

Product Details

black fframe photovoltaic module

Glass

A grade ,Antireflection Coating, 3.2mm High Transmission,

EVA

Strong Resistance to high and low temperatures

Half Cut Technology

Increase the power of 5-10W, Less hot spot risk
550 solar panel black frame

PERC Cell Technology

Improve the photoelectric conversion efficiency about 1%

Three Appearance Optional

Black frame/Silver frame/Full black

Product Liability Insurance

Quality insured by SINOSOLAR LAB(Up $1,000,000).

Product Production

550W Perc Monocrystalline Panel
