Shingled 400W 410W 420W All Black Monocrystalline Solar Panel For Roof

Shingled 400W 410W 420W All Black Monocrystalline Solar Panel For Roof

Shingled 400W 410W 420W All Black Monocrystalline Solar Panel For Roof

Tiantech Solar 410W All Black Monocrystalline Shingled Panel

Type 410W Shingled Panel
Style All Black
Cell
Mono-crystalline silicon solar cells
Dimension of module
1723mmx1134mmx35mm
Weight
20.90kg
Pallet (31Pcs):
1750*1120*1260mm
678Kgs
Inquire Now
Main Features Of 410W All Black Shingled
  • IP68 Junction Box and Connector have a high degree of  waterproof, effectively resist the harsh environment
  • The junction box carries a current of 15A, ensuring high current flow through the modules
  • Glue-spilled tank has a double-layer waterproof, cross-section with hook-shaped aluminumframe, enhanced by 10% ofthe mechanical load strength
  • The module refines the current division, thus effectively reducing the loss of up to 2% due to mismatch and increasing  the power output ofthe system
  • Excellent salt spray resistance ,anti-ammonia and anti PID
  • Passed the 2400pa wind load and 5400pa snow load test, ensuring that the module has a stable mechanical life
  • Modules are packaged according to color classification, to achieve consistent appearance after installation

410W Silver/Black Frame Shingled Panel

Product Parameter

Maximum power at STC (Pmax)
400W
405W
410W
415W
420W
Optimum operating voltage (Vmp)
37.78V
37.82V
38.31V
38.32V
38.44V
Optimum operating current (Imp)
10.59A
10.72A
10.71A
10.83A
10.93A
Open-circuit voltage (Voc)
43.50V
43.58V
43.61A
43.66V
43.68V
Short-circuit current (Isc)
11.33A
11.43A
11.44A
11.53A
11.54A
Short-circuit current temperature coefficient
（0.065±0.015）%/℃
Open-circuit voltage temperature coefficient
- (80±10）mV/℃
Peak power temperature coefficient

-(0.5±0.05）%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)
47±2℃
Operating temperature
-40℃to 85℃
Maximum system voltage
1000V DC
Power tolerance
±3%

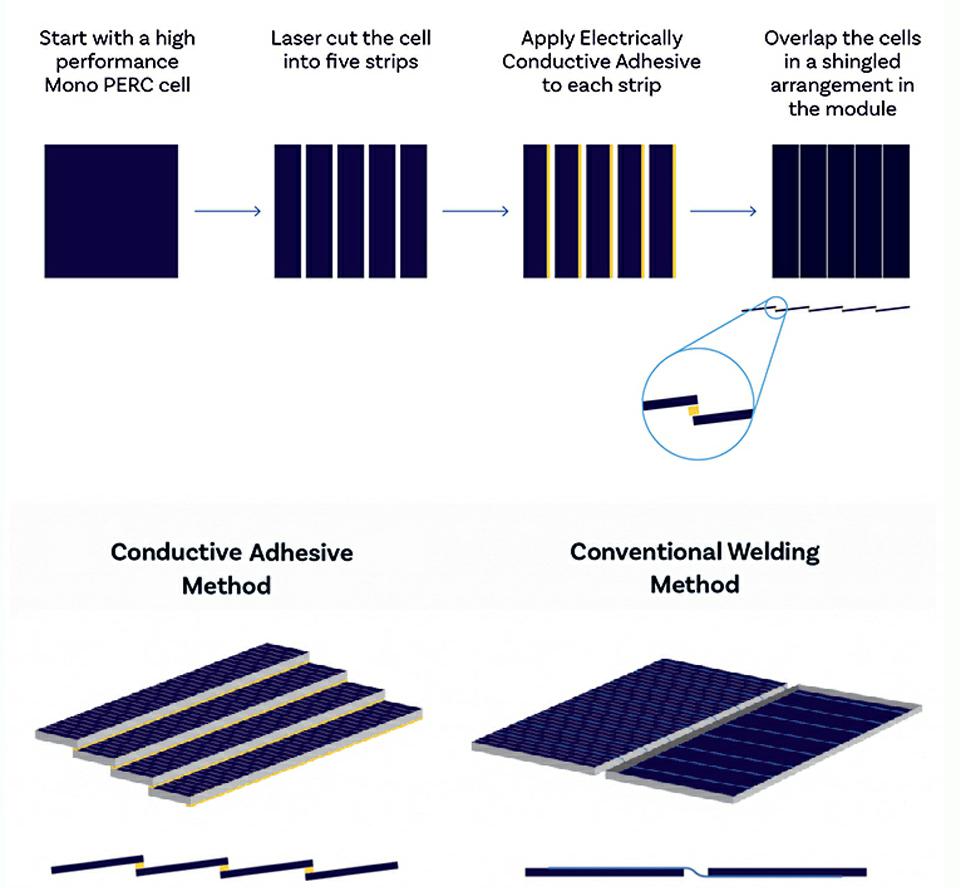

What Is Shingled Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

410Watt Shingled Perc Solar Panel

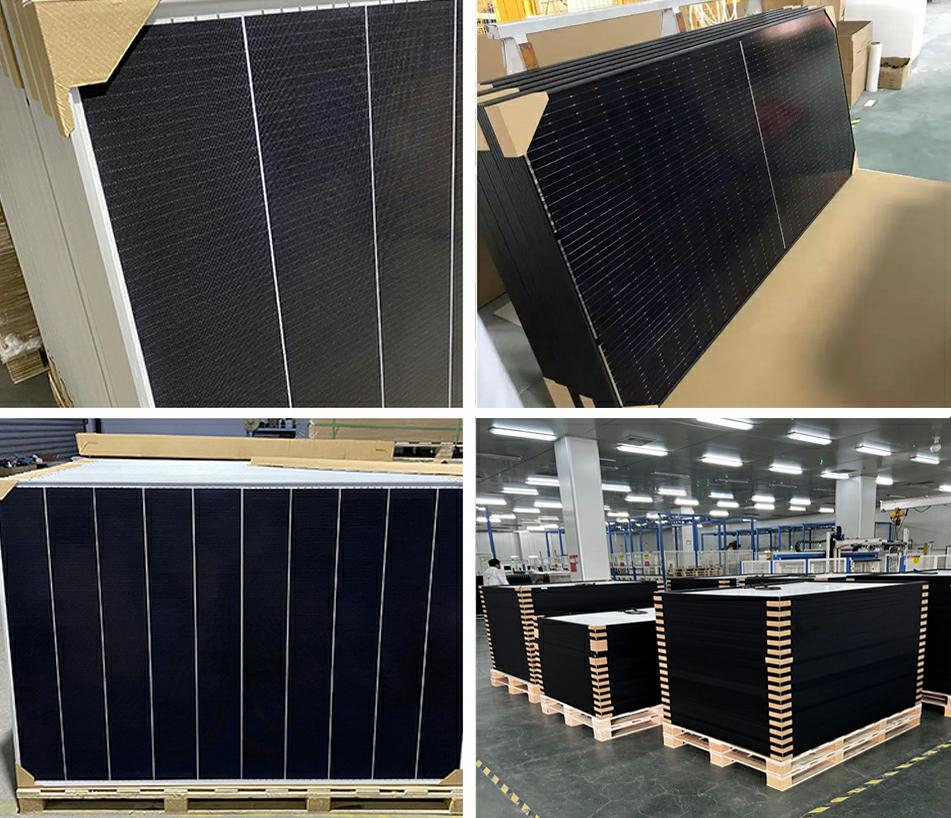

Product Packaging
Silver frame and black frame panel















Hot Tags : All Black 410W Shingled Panel 410W Full Black Shingled Panel 410W Shingled All Black PV Module High Power 410W Shingled Panel Shingled 410W Full Black Panel Whole Black 410W Shingled Panel
