ESS 215KWH All-in-one Energy Storage Cabinet 1MWH 2MWH 3MWH 5MWH Solar BatteryContainer

ESS 215KWH All-in-one Energy Storage Cabinet 1MWH 2MWH 3MWH 5MWH Solar BatteryContainer
ESS 215KWH All-in-one Energy Storage Cabinet 1MWH 2MWH 3MWH 5MWH Solar BatteryContainer
ESS 215KWH All-in-one Energy Storage Cabinet 1MWH 2MWH 3MWH 5MWH Solar BatteryContainer
ESS 215KWH All-in-one Energy Storage Cabinet 1MWH 2MWH 3MWH 5MWH Solar BatteryContainer

ESS 215KWH All-in-one Energy Storage Cabinet 1MWH 2MWH 3MWH 5MWH Solar BatteryContainer



Description Solar Power Battery Plant
Energy storage capacity 215KWH-1MWH-2MWh-5MWH
Cell technology Lithium-iron phosphate (LiFePO4)
Life cycle 6000 times
Conmunication CAN / RS485 / Ethernet
Certifications EN62477,ENIEC61000,CE,UN38.3,UN3536,IEC62619(Applying)
Inquire Now

Sunchaser Battery



Sunchaser Battery is developed and operated by Tiantech Company. The SUNCHASER brand is registered in China and Europe and protected by law. Sunchaser battery is currently mainly for residential and commercial project, including low voltage 48-60V battery and high voltage 150-800V battery, also we do container storage battery.  Sunchaser Battery currently has warehouses in Hamburg and Rotterdam in Europe, has many partners in Germany, Switzerland, the United Kingdom, Sweden, Austria, and the Czech Republic, and has sold more than 5,000 sets of photovoltaic inverters and batteries.



Product Description

llithium-ion battery

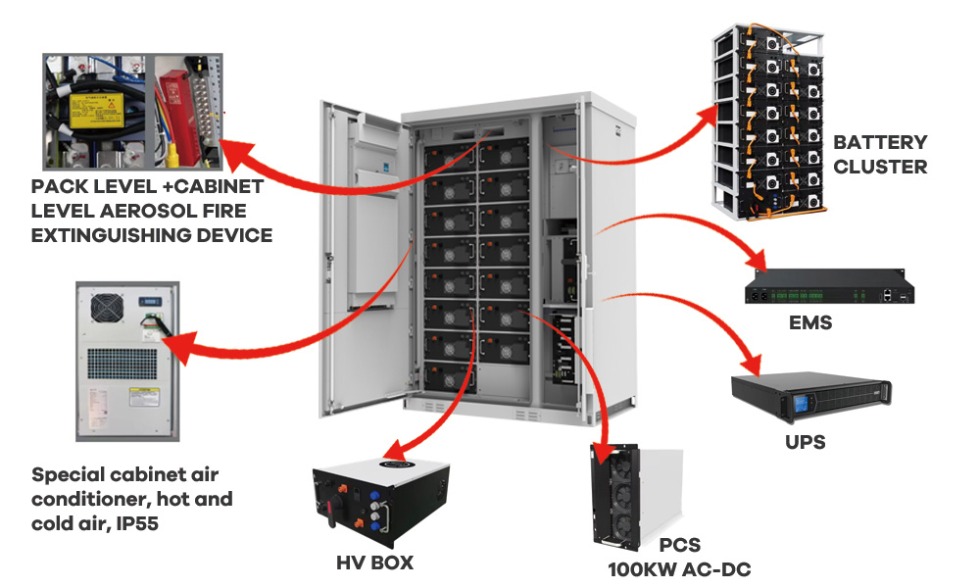

Why Choose Sunchaser Solar Battery Storage Cabinet?

  • All in one system integrated battery,inverter, USP<EMS
  • Large enery storage
  • Apply to hybrid grid ,off grid system
  • Widely applicable for industrial and commerical energy storage
  • System can be expanded.

Product Parameter
Battery Pack Lithium Ion Battery


Sunchaser

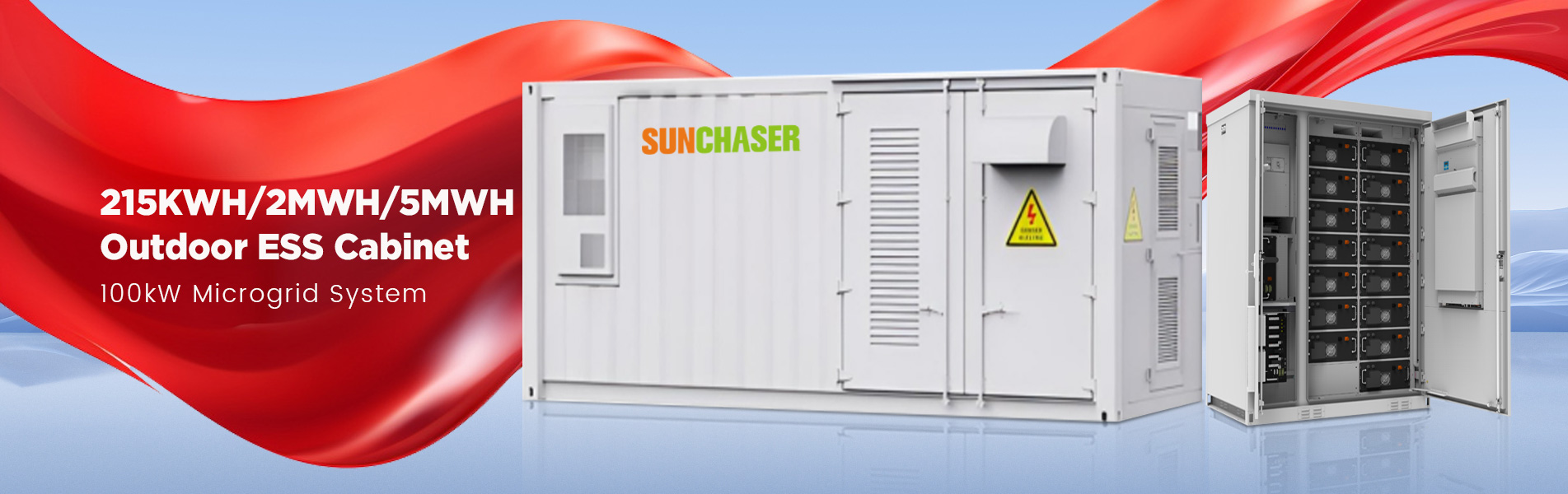

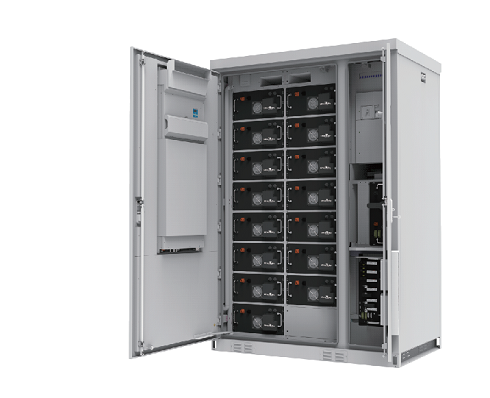

100kW / 215kWh Outdoor ESS Cabinet 100kW Microgrid System
Part number 100K215-EU
Batterychemistry Lithium lron Phosphatee ( LiFePO4 )
Cycle life ≥6000 (@25°C,0.5C/0.5C,70%EOL)
Cell spec 3.2V / 280Ah
String configuration 1P240S
Number of strings 1
Rack rated energy capacity 215KW
Nominal voltage 768V
Dc input voltage range 600~950V
Max input current 185A
Max PV input power 120KW
Pv open circuit voltage range 200~950V
MPPT working voltage range 200~850V
Rated PV input voltage 600V
MPPT start voltage 250V
MPPT input route 4(eachmaxinput50A)
Max charge current 180A
Max output power 100KW
Max output current 152A
Rated voltage 230V(singlephase)/400V(3phase)
Frequency range 50/60Hz
Harmonic wave <3%(greaterthan30%load)
Off grid 　
Max output power 100KW
Max output current 152A
Rated voltage 230V(singlephase)/400V(3phase)
Frequency range 50/60Hz
Harmonic wave <1.5%(resistiveload)
Imbalance 100%
Overload 125%10S,150%0.1S
Max efficiency 98.78%





Hot Tags : solar battery Outdoor Battery Cabinet container Energy solar battery storage system 200kwh 500kwh 1mwh 2mwh 4mwh ESS solar energy storage storage battery container Lifepo4 Battery Rack Cabinet BESS industrial commercial energy storage battery
