Design for easy wall mounting
Easy to connect in series and in parallel
Longer product life expectancy
BMS manages all modules in a unified way, ensuring safety performance
| Model | 51.2V300Ah | 51.2V400Ah | |
| Dimensions | 100*840*235 | ||
| Weight | Approx:120kg | Approx:150kg | |
| Max.Continuous Work Current | 200A | ||
| Protocol(optional) | RS485,CANbus | ||
| Power display | LED screen, LED light | ||
| Certification | UN38.3 MSDS | ||
| Nominal Energy | 15KWH/20KWH | ||
| Design Life | 15 years | ||
| Circle Life | ≥6000 80% DOD | ||
| Internal Resistence | ≤ 30 | ||
Main Features

Product Paramenters
  |

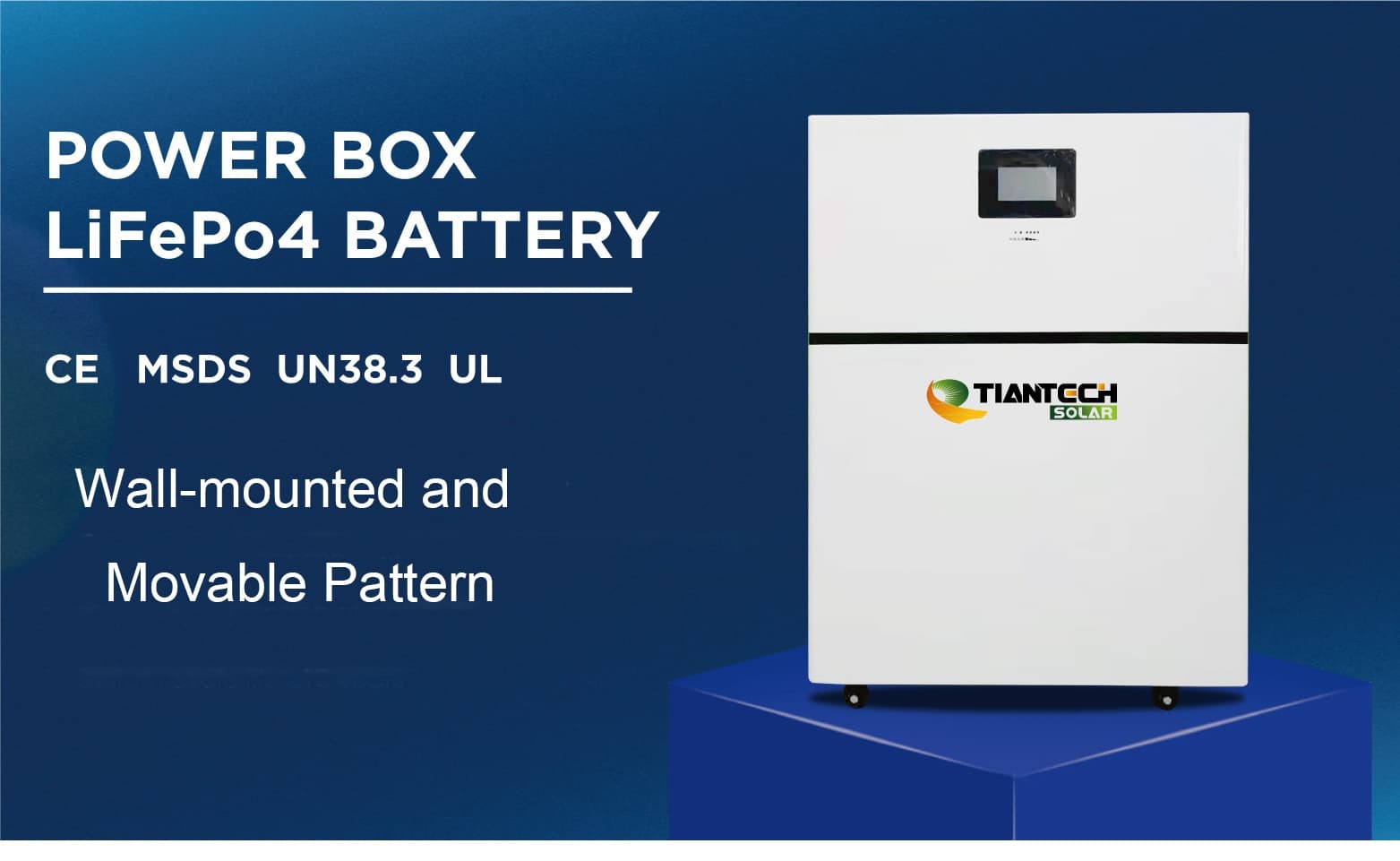

Lifepo4 Lithium Battery | ||
| Nominal Voltage | 51.2VDC | ||
| Full Charge Voltage(FC) | 56V | ||
| Full Discharge Voltage(FD) | 45V | ||
| MaximumDischargingCurrent | 120Aat1min/240Aat1min | ||
| Protection | BMS, Breaker BMS, Breaker | ||
| StandardChargeMethod | 0.2C CC(Constant current)charge toFC,CV(ConstantvoltageFC) chargetill charge currentdecline to<0.05C | ||
| Effificiency(DCtoAC) | 93% | ||
| Inverter | |||
| MaximumPVInput Power | 6500W | ||
| RatedOutput Power | 5500W | ||
| MaximumChargingPower | 2880W | ||
| MPPT VoltageRange | 120VDC~450VDC | ||
| NumberofMPPTrackers / MaximumInput Current | 2/ 2x 13A | ||
