Support multi machine parallel and series connection
4000-5000 Cycles @ 80% DOD life cycle
More than 10 Years design life
Support full power discharge and automatic management of battery charge and discharge
| Model | JHPRO-5000W | JHPRO-7000W | JHPRO-10000W |
| Nominal Voltage | 48V(15series) | ||
| Capacity | 100Ah | 150Ah | 200Ah |
| Energy | 5120Wh | 7680Wh | 10240Wh |
| Dimensions | 680 x485 x180(220)mm | ||
| Weight | 65kg | 79kg | 103kg |
Main Features of the Model
| Combination method | 15S2P |
Rated Capacity |
200AH |
|
Operation Voltage |
49V-51.0V(40-60%) |
Discharge Cut-off Voltage |
40-44V |
|
Charging Voltage |
53-55V |
Internal Impedance |
≤60mΩ |
|
Standard charge |
Constant Current :40A |
Constant Voltage: 53-55V | cut-off Current: 0.02CA |
|
Limiting current |
20A |
Standard discharge |
Constant current：40A /End voltage:40-44V |
| Maximum Continuous Charge Current | 100A |
Maximum Continuous Discharge Current |
100A |
|
Operation Temperature Range |
Charge（充电）: 0~45℃ Discharge（放电）: -20~55℃ |
Storage Temperature Range |
Less than 12 months : -10~35℃
less than 3 months: -10~45℃
Less than 7 day : -20~65℃ |

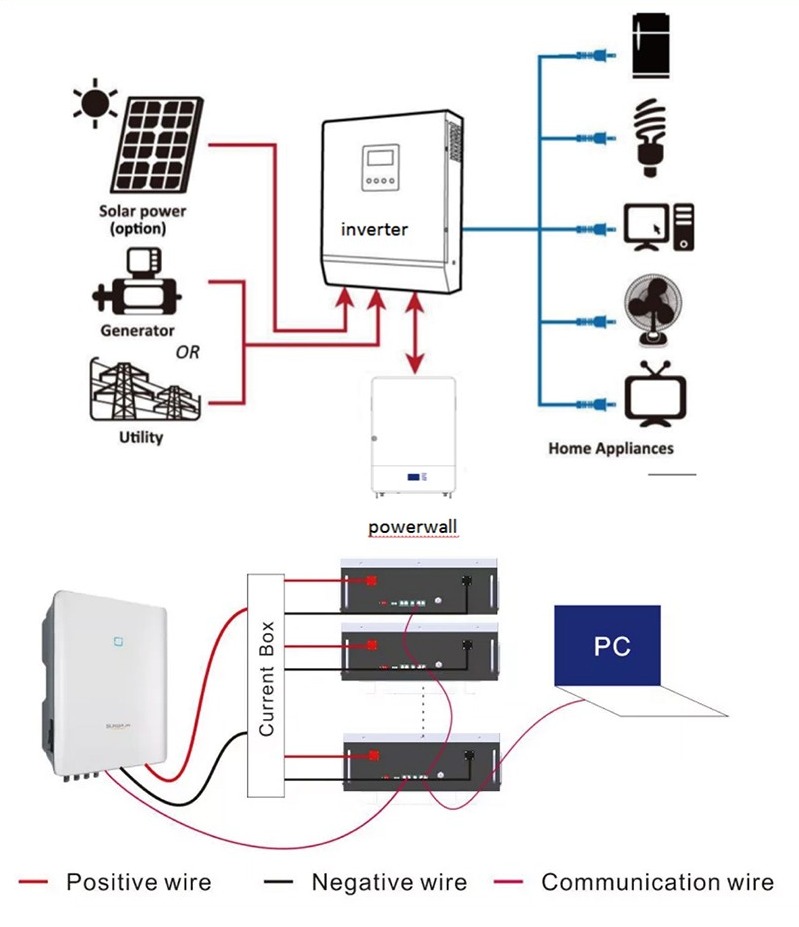

System Diagram

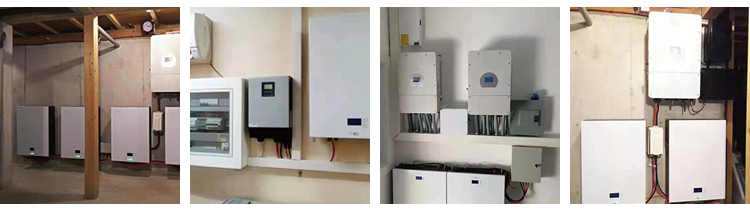

Application Pictures
