Rechargable Wall-mounted 5.12kwh 100Ah LFP Battery

Rechargable Wall-mounted 5.12kwh 100Ah LFP Battery
Rechargable Wall-mounted 5.12kwh 100Ah LFP Battery

Rechargable Wall-mounted 5.12kwh 100Ah LFP Battery

51.2V 100AH/200AH LiFePO4 Battery

RS485/RS232/CAN Communication Storage Energy System

Residental and Commercial application 51.2V Storage

Model  JH48100
Battery Type LiFePO4 Battery(LFP)
Color White
Nominal Voltage 51.2 V
Nominal Capacity 100Ah
Battery Weight 60kg
Battery Size 600*500*165mm
Nominal Energy 5.12kwh
Inquire Now

Selling Point of the LiFePO4 Battery

---- Wall mounted LiFePO4 Batteries
---- 48V(51.2V) 5.12KWH/10KWH(100Ah/200Ah)
----Comprehensive BMS to Match all hybrid inverters
---- Convenient RS485, CAN BUS Communiction
---- Wide Application in solar home and industrial projects

Product Parameter
Technical Specifications Battery Type LiFePO4(LFP)
Design Years 15 Years
Display LCD Display
BMS Built-in BMS
Cycle Life ≥6000 times
Operating Voltage Range 40V～58.4V
Charging Voltage DC 58.4V
Charge/Discharge Current(A) Same Port 100A
Internal Resistance Internal Resistance
BMS Parameters Self-Consumption ≤2W
Rated Voltage 51.2V
Balance current 30～65(MA)
Communication Method CAN/RS485/RS232
Information Storage 500 Strip
Limiting 10/20A(Optional)
Ambient Temperature Operating Temperature -10～50℃
Storage Temperature 10℃～50℃
Humidity 15%～75%
Warranty Warranty 10Years

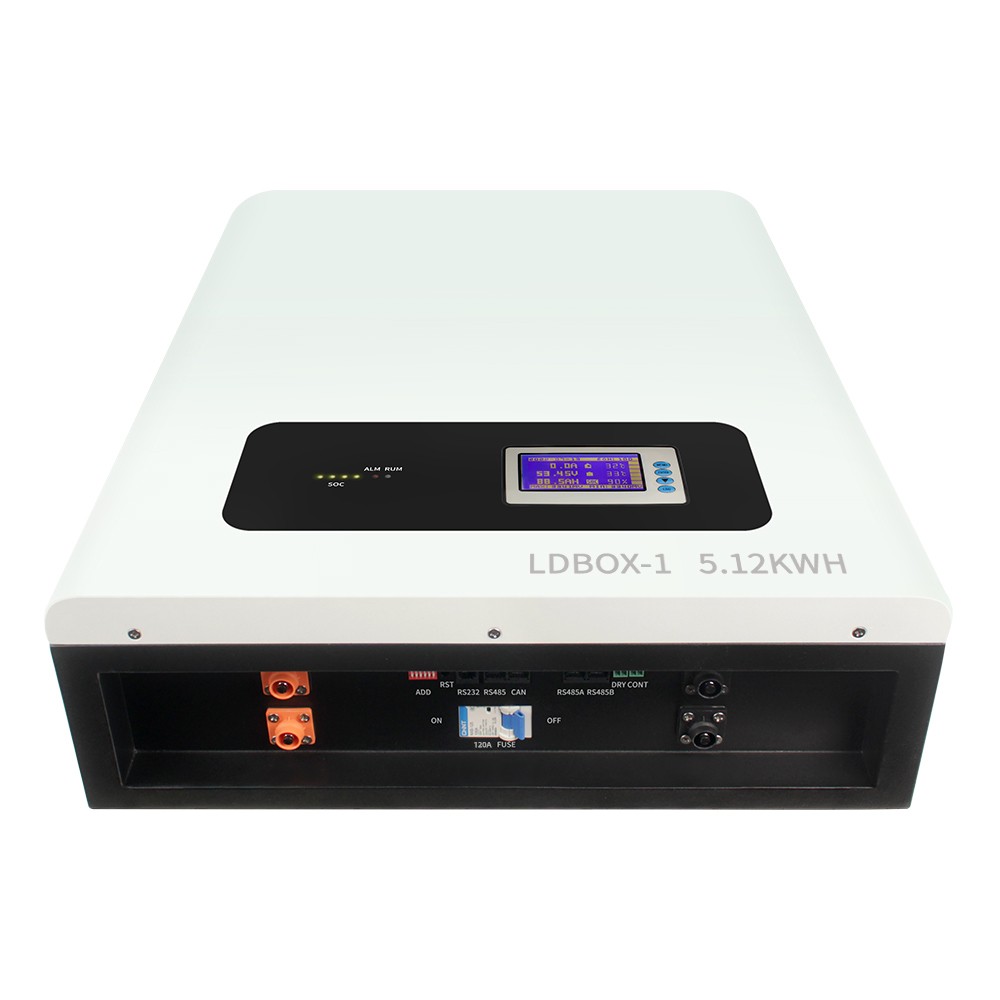

Product Display
51.2V 10 Years warranty Lifepo4 battery

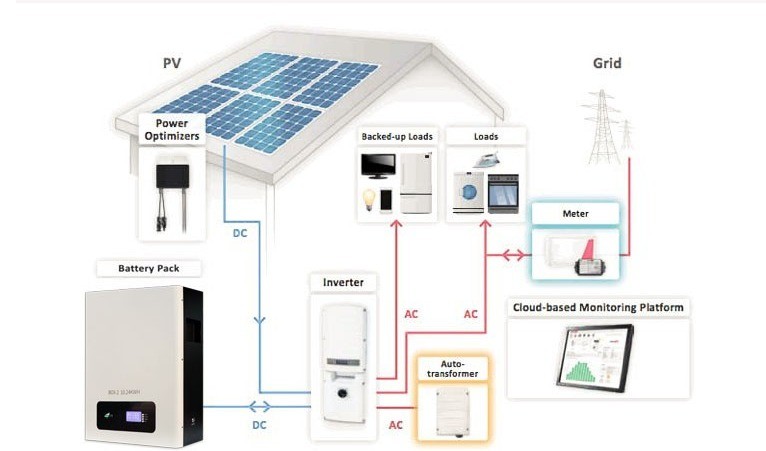

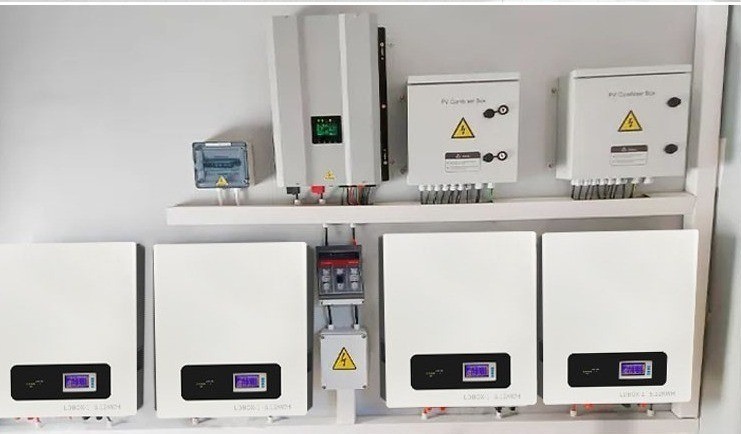

Hybrid system home LiFePO4 battery48V Parallel connection LFP battery

Product Composition
  • Buit-in BMS Ptotection
    ---- Over charge detection function
    ---- Over discharge detection function
    ---- Over current detection function
    ---- Temperature protection function
    ---- Short circuit detection function
    Balance function
    ---- Upper computer software monitor
    ---- LCD Screen optional
  • Durable and stable battery

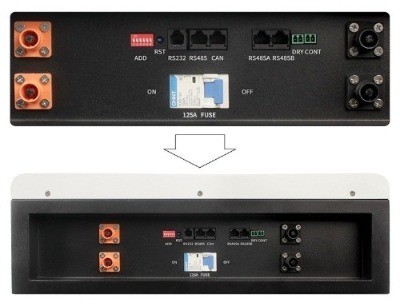

    Interface Design
    ---- Wall-mounted removable lithium ion battery
    ---- Automotive Grade Cells-16 cell configuration Integrated CAN bus/ RS485 /BMS

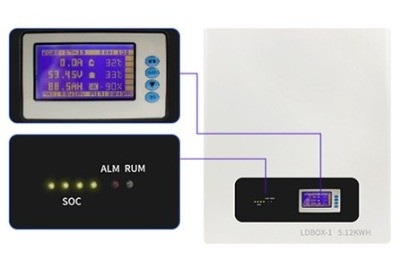

    ---- LED display shows battery Power
    ---- Pre-configured with optimal parameters

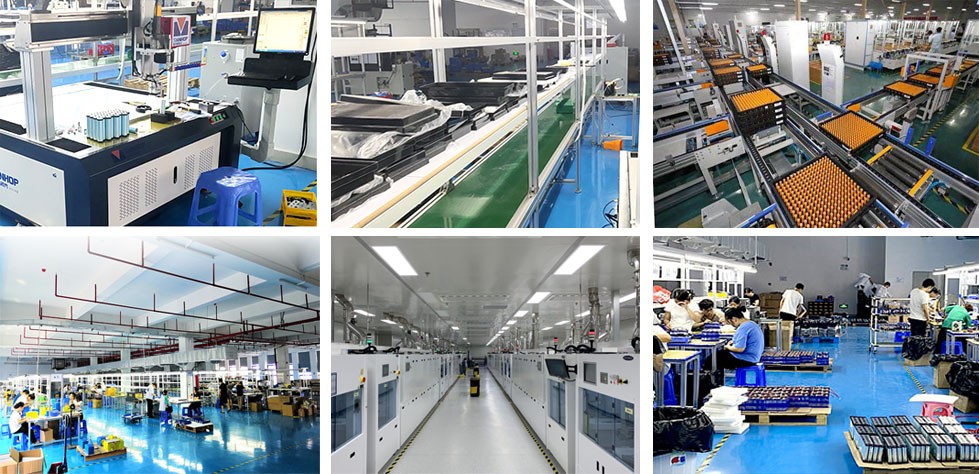

Factory Display

Small inner resistance LFP battery



Certification

Rechargeable wall-mounted lithiun ion battery
























Hot Tags : Maintenance free LiFepo4 battery Solar inverter hybrid system battery 80% DOD cycle life Lifepo4 Solar Battery BMS system lithium ion battery High energy density lithium ion battery Portable lithium iron phosphate battery
