Wall mounted 48V 51.2V 100Ah Lifepo4 Battery

Wall mounted 48V 51.2V 100Ah Lifepo4 Battery
Wall mounted 48V 51.2V 100Ah Lifepo4 Battery

Wall mounted 48V 51.2V 100Ah Lifepo4 Battery

Support multi machine parallel connection

Continuous overcurrent of single machine 100A

Support 100% unbalanced output

Support full power discharge and automatic management of battery charge and discharge

Model  JHPRO-5000W JHPRO-7000W JHPRO-10000W
Nominal Voltage 48(15series)
Capacity  100Ah 150Ah 200Ah
Energy  5120Wh  7680Wh  10240Wh
Dimensions  680*485*180 (220)mm   Include Bracket
Weight  65kg 79kg  98kg
Inquire Now

Main Features of the model

* Wall mounted removable energy storage battery
* Compact size and light weight
* More than 10 years technical support
* ＞6000 cycles reliable performance
* Wide range of applications
* Equipped with comprehensive BMS communication protocol
* Smart power consumption monitor
* 80% DOD with more usable capacity

Product Specification

Combination method

 15S1P Rated Cpacity Typical:100Ah Minimum:98AH
Operation Voltage 49V-51.0V(40-60%) Discharge Cut-off Voltage 40-44V
Charging Voltage 53-55V Internal Impedance ≤60mΩ
Standard charge

Constant Current： 20A

Constant Voltage ：53-55V

 Cut-off Current:0.02CA

Charge time : Approx 6 h

 Limiting current 20A
Standard discharge Constant current：20A Maximum Continuous Charge Current 100A
Maximum Continuous Discharge Current 100A Operation Temperature Range

Charge: 0~45℃

Discharge: -20~55℃
Storage Temperature Range

Less than 12 months : -10~35℃



less than 3 months: -10~45℃



Less than 7 day : -20~65℃

 Battery Material LiFePO4

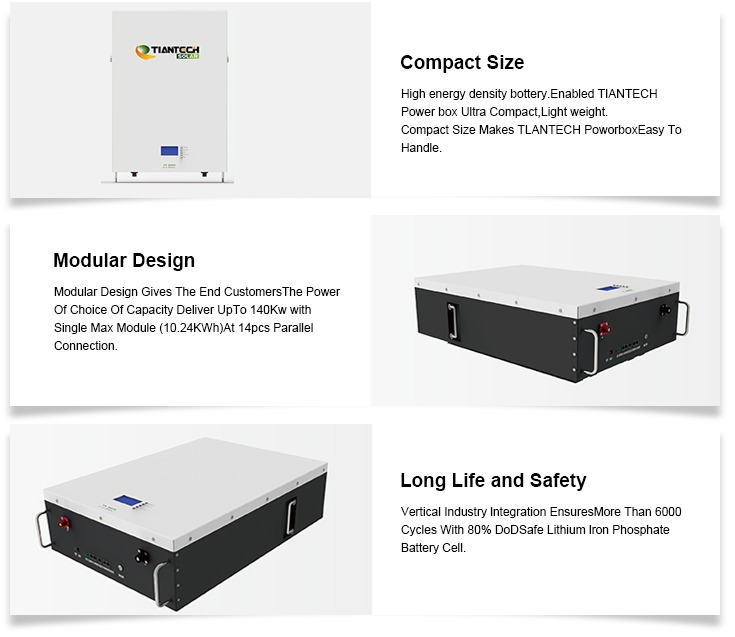

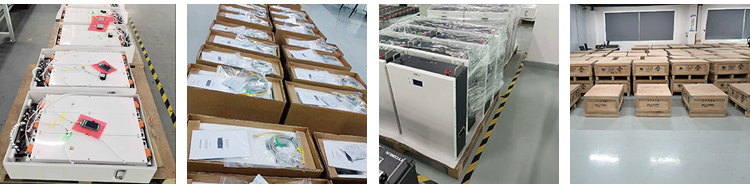

Product Dispaly

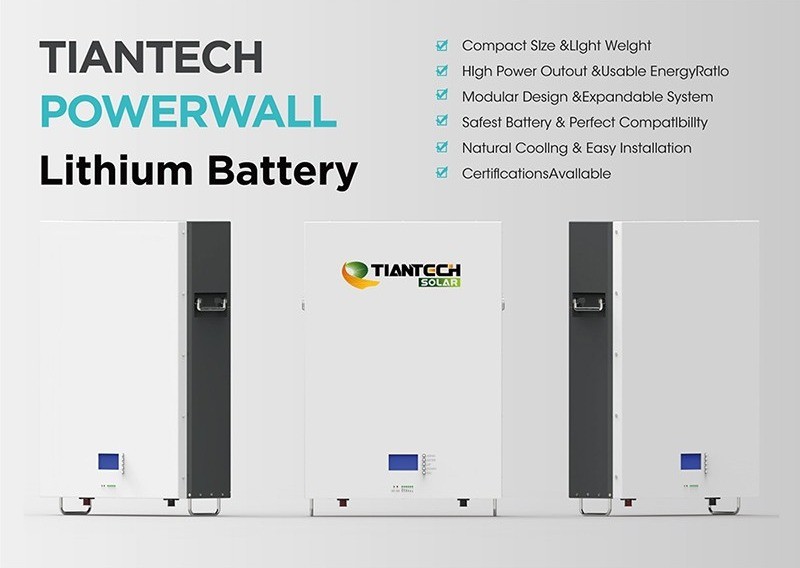

48V Wall-hung lithium ion battery



48V 100AH Free maintenance lifepo4 battery

100Ah Lifepo4 lithium battery pack

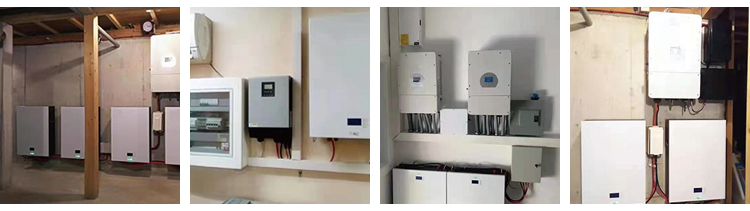

Our Project

5KW Wall-mounted deep cycle LifePO4 battery48V supportive parallel connection lithium ion battery
