20KW Three Phase Output 48KWH Off Grid System Kit

20KW Three Phase Output 48KWH Off Grid System Kit
20KW Three Phase Output 48KWH Off Grid System Kit
20KW Three Phase Output 48KWH Off Grid System Kit

20KW Three Phase Output 48KWH Off Grid System Kit

Daily power generation 48KWH

Daily energy storage 38.4KWH

20KW 10 Years Warranty residential off -grid solar system

Item NO. 20KW
System Type: Off Grid Solar System
Solar Panel Type: Monocrystalline Solar Panel
Battery Type: Gel Battery
Controller MPPT
Inverter 20KW
Warranty 10 Years
OEM Accepted



Inquire Now

Products Introduction:

  • The whole off grid system is designed for 20KW residential and commercial application.
  • The whole system is mainly composed of 20 kw inverter ,450w panel, MPPT controller and 12v 200Ah gel battery.
  • 50Hz or 60Hz Output Frequency solar system
  • ＞98% System Efficiency Off-grid solar system China supplier and manufacture



Technical Parameters

20KW Off Grid Solar Power System Components List
Composition Detail Quantity
Solar Panel 450w solar panel 21
Battery Lead acid battery 12V 200Ah 16
Inverter Three Phase /15KW/20KVA/BlackColor 1
Controller MPPT/192V 50A Norminal Maximum Current/Red Color 1
PV cable and other accessories Black For STD, Red Optional. 150M
Mounting System Roof/Ground Optional



Products Details

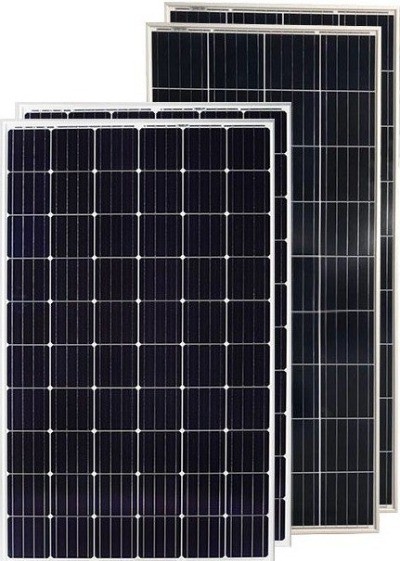

  • 30 Year warranty 450W solar panel

    Panel

    > 30 years Warranty

    > Highest conversion efficiency of 17%

    > Anti-reflective and anti-soiling surface power, loss from dirt and dust

    > Excellent mechanical load resistance

    > PID Resistant,High salt and ammonia resistance

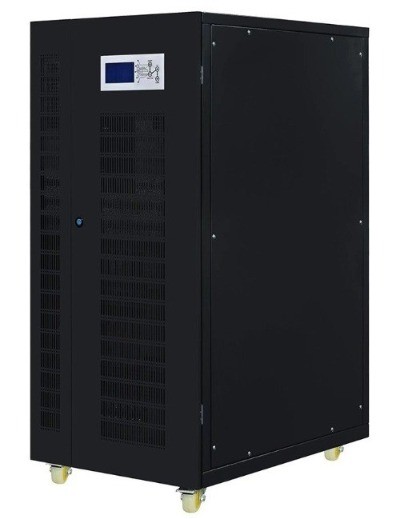

  • Three phase low DC voltage inverter
    Solar Inverter
    > Pure sine wave output
    > Low DC voltage, saving system cost
    > Wide LCD screen, clearly and precisely shows icon date
    > Built in PWM OR MPPT controller optional
    > AC charge current 0-45A adjustable
    > 100% imbalance loading design, 3 times peak power
    > Setting different working modes based on variable usage requirements
    > Various communication ports and remote monitoring
    > RS485/APP(WIFE/GPRS)(Opyional）

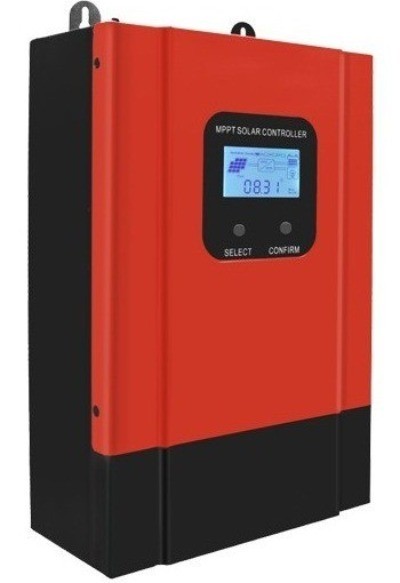

  • Third-order charging MPPT controller

    50A MPPT Controller

    > MPPT efficiency＞99.5% and average conversion efficiency 98%

    > Third-order charging(constant current, constant voltage, floating charge)

    > Support remote monitoring of upper computer and APP

    > 8-pin RS485 communication, unified intergrated management and secondary development

    > Multiple protection functions

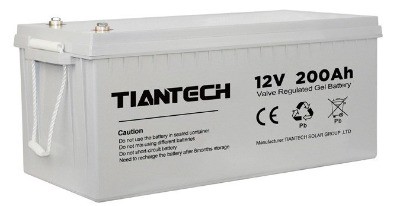

  • 12V 200Ah portable colloidal battery

    Gel Battery

    >12v 200Ah storage battery

    >AGM Gel battery Type

    >Lead acid battery

    >Deep cycle and rechargeable

    >Maintenance free

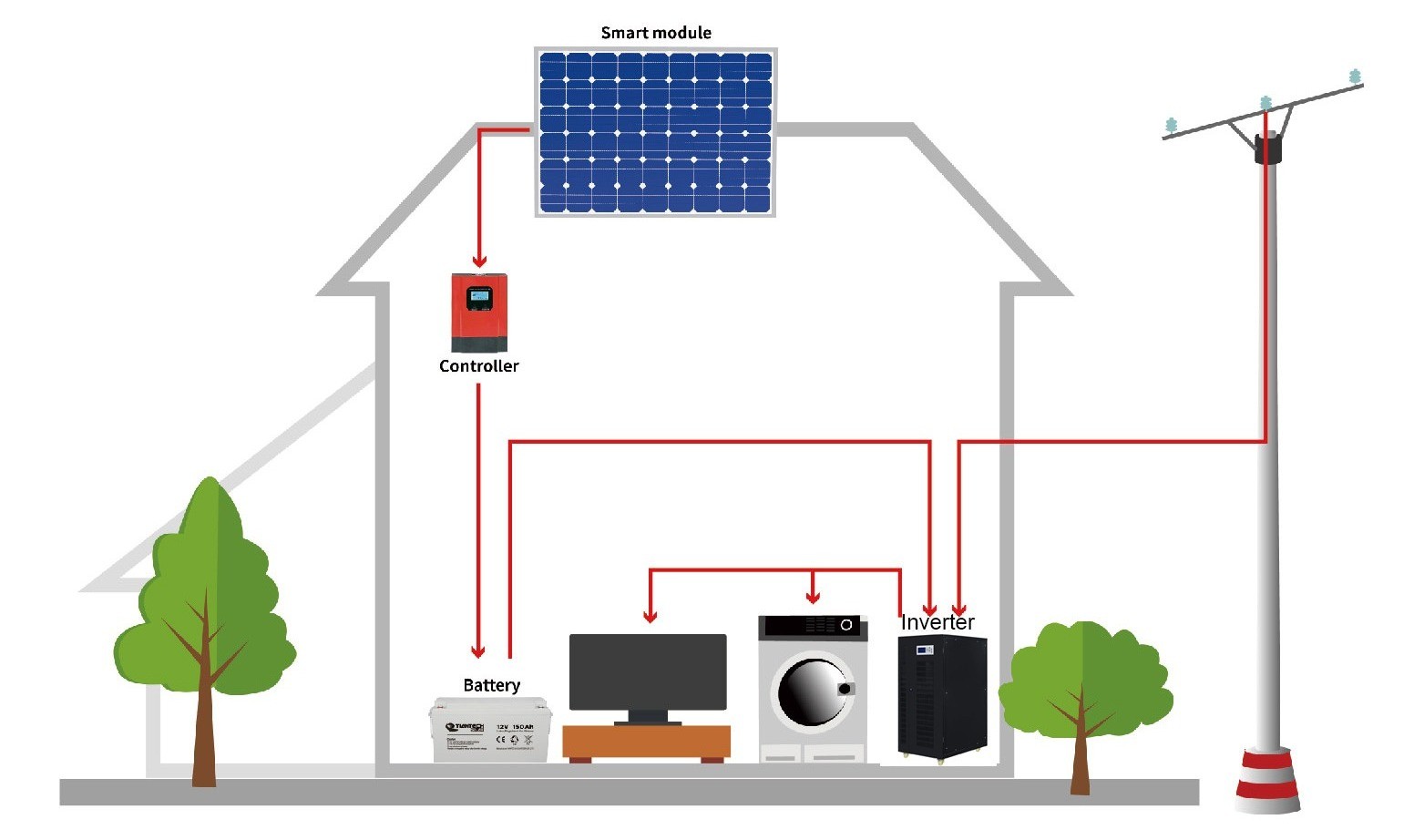

Product Connection Diagram

20KW off grid system supplier



Product Packing& Delivery

25KVA polllution-free power supply system





Hot Tags : Residential and commercial off grid solar system 20KW free maintenance power system 25KVA three phase inverter solar system kit 20 KW three phase output off grid system 20KW 10 years warranty off-grid system 24H polllution-free power supply system
