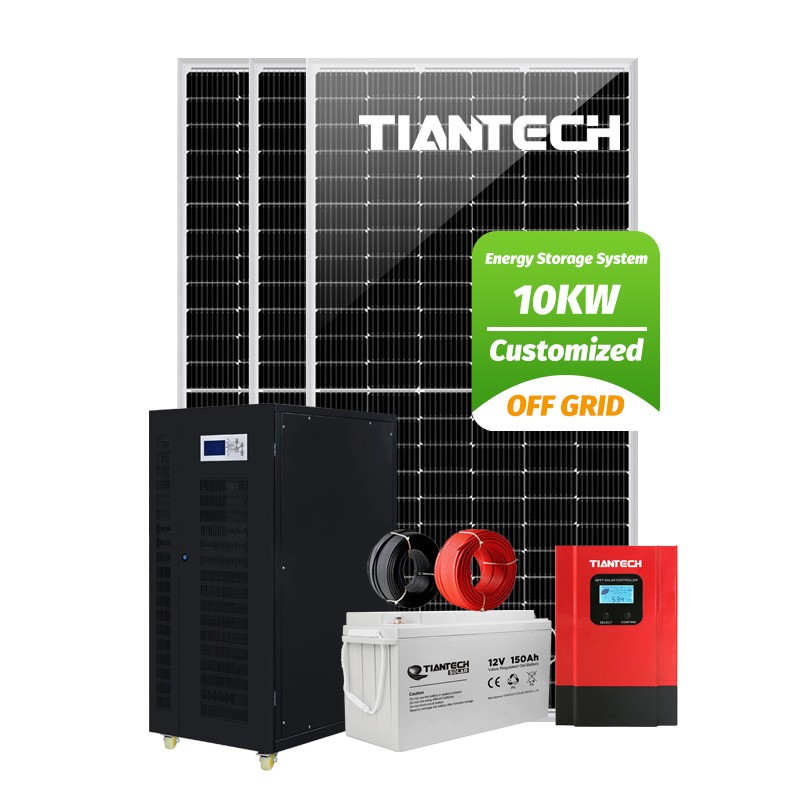

10KW 96V 80A Controller 48V Solar PV Off Grid System

10KW 96V 80A Controller 48V Solar PV Off Grid System
10KW 96V 80A Controller 48V Solar PV Off Grid System
10KW 96V 80A Controller 48V Solar PV Off Grid System

10KW 96V 80A Controller 48V Solar PV Off Grid System

Daily power generation 38.4KWH

Daily energy storage 28.8KWH

10KW 10 Years Warranty residential off -grid solar system

Item NO. 96V10KW
System Type: Off Grid Solar System
Solar Panel Type: Monocrystalline Solar Panel
Battery Type: Gel Battery
Controller MPPT
Inverter 10KW
Warranty 10 Years
OEM Accepted



Inquire Now

Products Introduction:

  • The whole off grid system is designed for96V 10KW residential and commercial application.
  • The whole system is mainly composed of 10kw inverter ,450w panel, MPPT controller and 12v 150Ah gel battery.
  • 50Hz or 60Hz Output Frequency solar system
  • ＞98% System Efficiency Off-grid solar system China supplier and manufacture

Technical Parameters

10KW Off Grid Solar Power System Components List
Composition Detail Quantity
Solar Panel 450w solar panel 18
Battery Lead acid battery 12V 150Ah 16
Inverter Three Phase /10KW/BlackColor 1
Controller MPPT/96V 80A Norminal Maximum Current/Red Color 1
PV cable and other accessories Black For STD, Red Optional. 120M
Mounting System Roof/Ground Optional



Products Details



  • PID Resistance 450W solar panel

    Panel

    > 30 years Warranty

    > Highest conversion efficiency of 17%

    > Anti-reflective and anti-soiling surface power, loss from dirt and dust

    > Excellent mechanical load resistance

    > PID Resistant,High salt and ammonia resistance

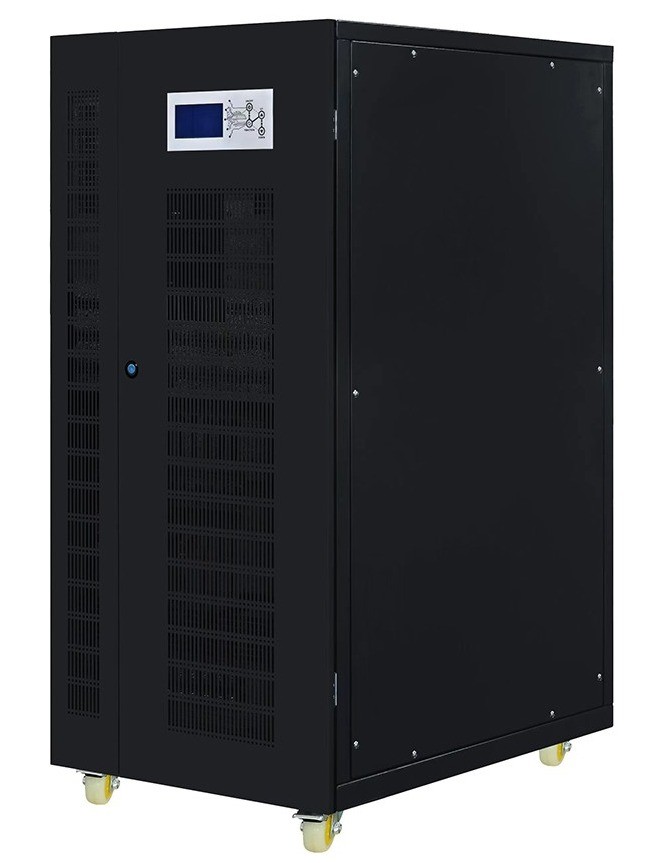

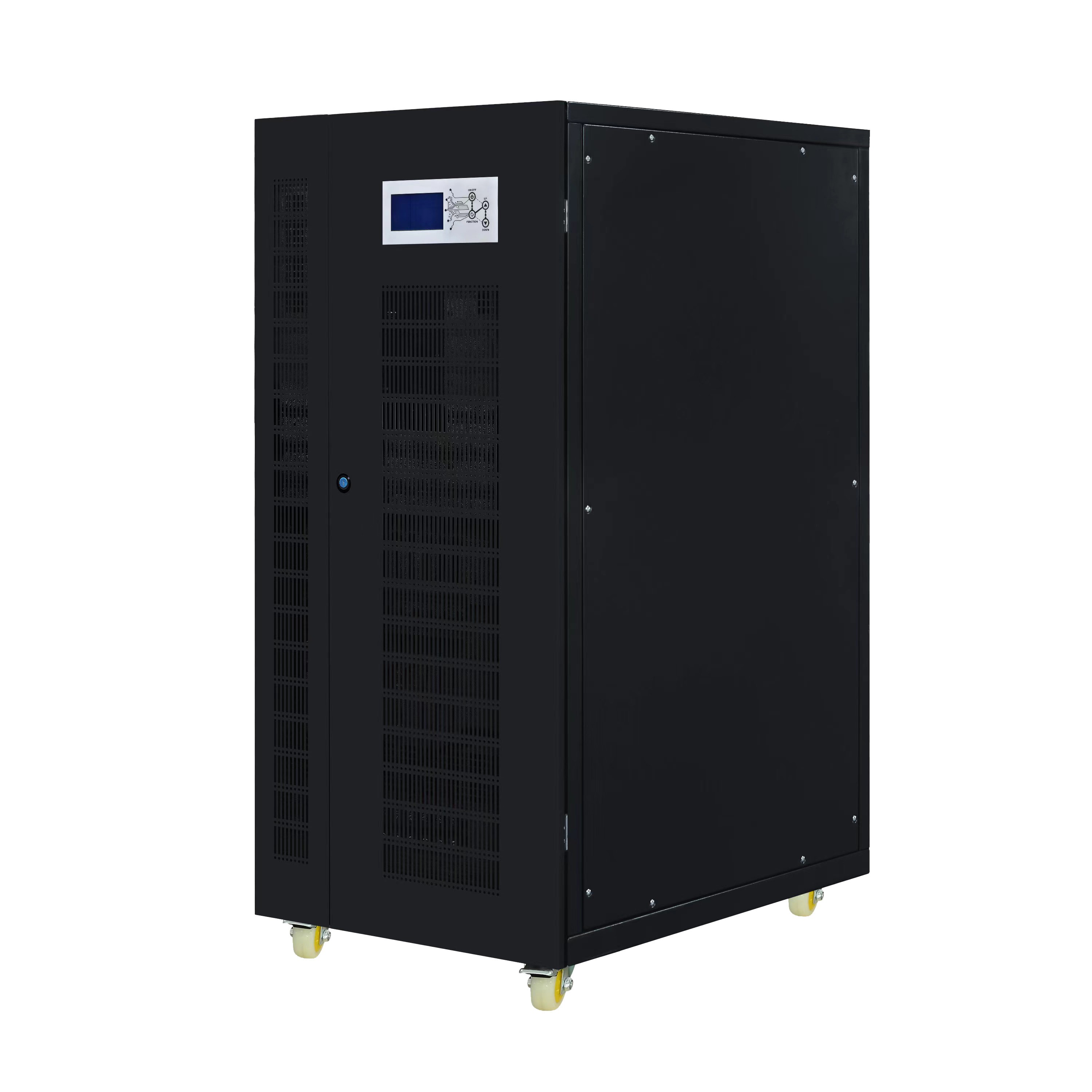

  • 12.5KWA Three phase inverter
    Solar Inverter
    > Pure sine wave output
    > Low DC voltage, saving system cost
    > Wide LCD screen, clearly and precisely shows icon date
    > Built in PWM OR MPPT controller optional
    > AC charge current 0-45A adjustable
    > 100% imbalance loading design, 3 times peak power
    > Setting different working modes based on variable usage requirements
    > Various communication ports and remote monitoring
    > RS485/APP(WIFE/GPRS)(Opyional）

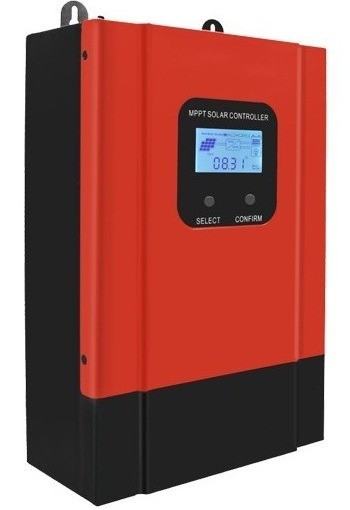

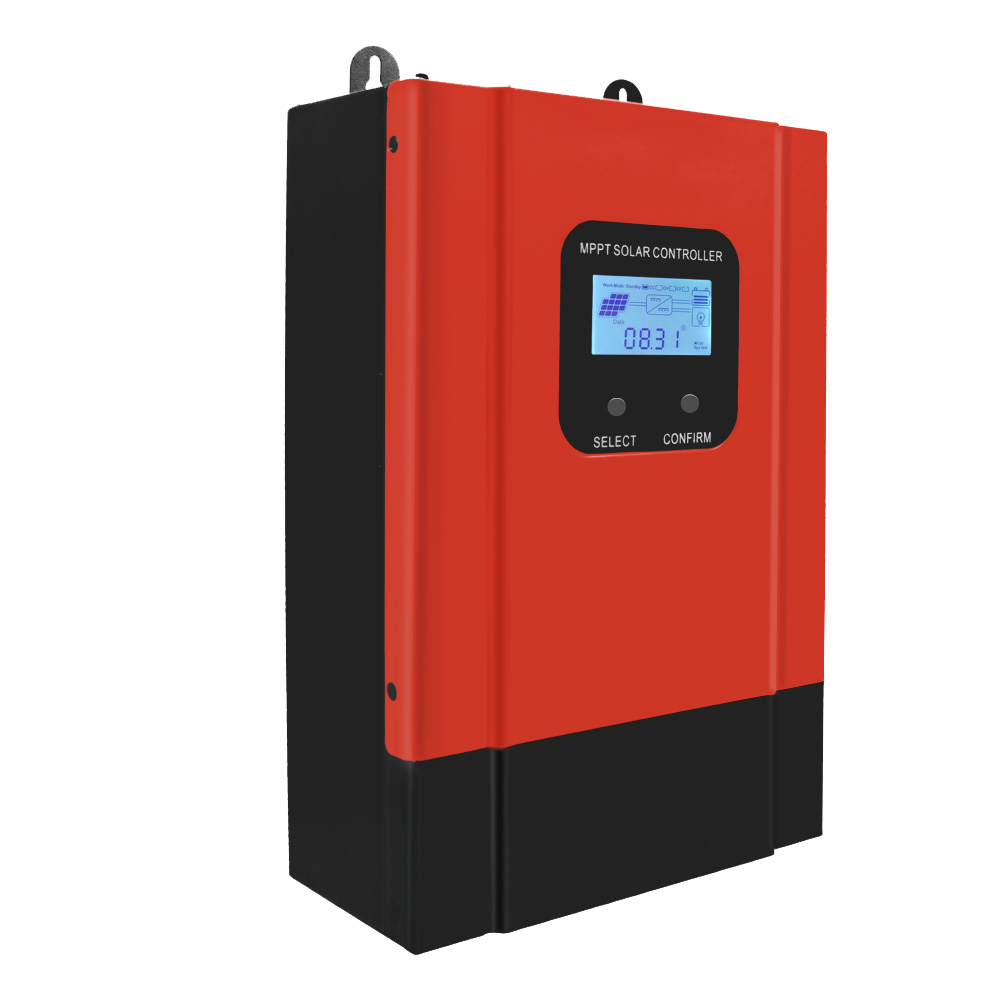

  • 96V 80A MPPT controller

    80A MPPT Controller

    > MPPT efficiency＞99.5% and average conversion efficiency 98%

    > Third-order charging(constant current, constant voltage, floating charge)

    > Support remote monitoring of upper computer and APP

    > 8-pin RS485 communication, unified intergrated management and secondary development

    > Multiple protection functions

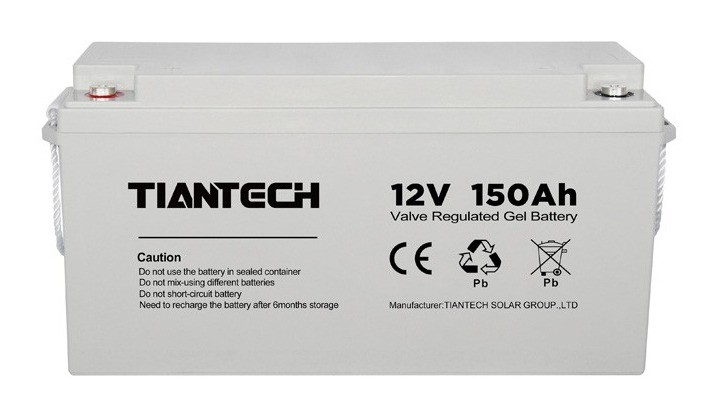

  • 12V 150Ah Free maintenance gel battery

    Gel Battery

    >12v 150Ah storage battery

    >AGM Gel battery Type

    >Lead acid battery

    >Deep cycle and rechargeable

    >Maintenance free

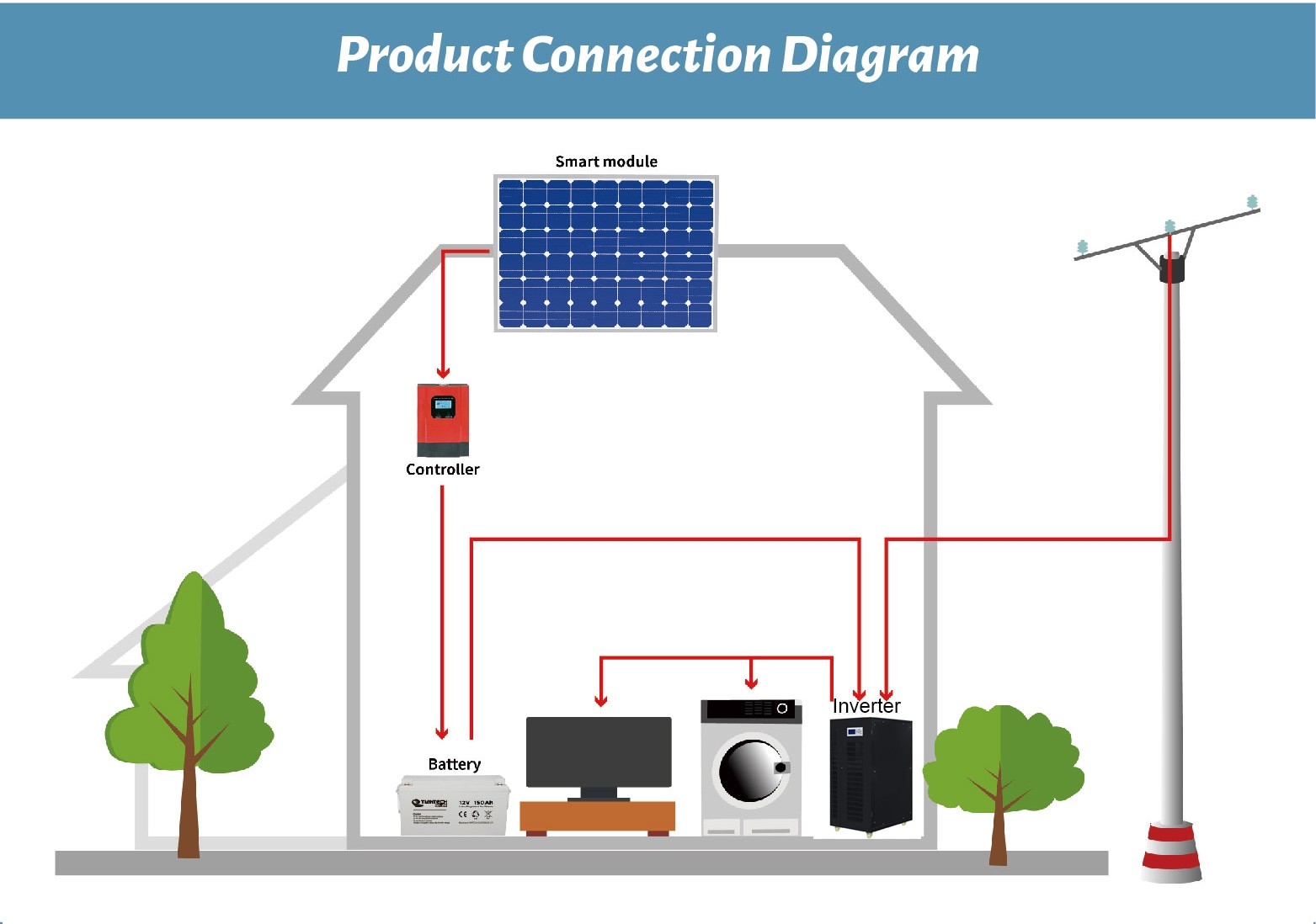

Product Connection Diagram



10KW Complete set hybrid off grid system



Product Packing



10KW Three Phase Output Off Grid System Kit





Hot Tags : 96V free maintenance power system 10KW deep cycle off grid system price 10 Years Warranty off -grid solar system 10KW off-grid solar power complete kit Portable Off-grid solar system supplier Whole set off grid solar supplying kit
