Stable And Safe Performance 5-30KW Full Set Off-Grid Solar System

Stable And Safe Performance 5-30KW Full Set Off-Grid Solar System

Stable And Safe Performance 5-30KW Full Set Off-Grid Solar System

What is Off grid system?
Off-grid system is suitable for areas without grid-connected or unstable grid-connected power.Off grid system is usually composed of solar panels, connector, inverter, battery and mounting system

Item NO. JH-5KW-OFF
System Type: Off Grid Solar System
Solar Panel Type: Monocrystalline Solar Panel
Battery Type: Wall Mount Battery
Controller MPPT
Inverter 5KW
Warranty 10 Years
OEM Accepted



Inquire Now

Products Introduction:

  • The whole off grid system is designed for 5KW-30KW residential and commercial application.
  • The whole system is mainly composed of pure sine wave inverter  mono panel, MPPT controller and storage battery
  • 50Hz or 60Hz Output Frequency solar system
  • ＞98% System Efficiency Off-grid solar system China supplier and manufacture

Technical Parameters

       Off-grid Solar System
Model JH-5KW-OFF JH-10KW-OFF JH-15KW-OFF JH-20KW-OFF JH-30KW-OFF
AC Voltage
110V/220V/230V/240V/380V
Solar Panel
 Mono 410w/18pcs Mono 410w/22pcs Mono 410w/30pcs Mono 410w/36pcs Mono 410w/55pcs
Off Grid Inverter 5KW 10KW 15KW 20KW 30KW
Solar Battery Lead Acid Battery /LiFePO4 Battery
Charge Controller MPPT
PV Cable 4mm2 6mm² PV cable/30m 6mm² PV cable/40m 6mm² PV cable/70m 6mm² PV cable/80m 6mm² PV cable/120m
MC4 connector 5pcs 10pcs 15pcs 20pcs 30pcs
Mounting Brackets Anti-erosion Aluminum Alloy for rooftop or ground mounting
DC Combiner Box 1pcs
Installation Tool 1set
WARRANTY:10 years warranty for complete solar power system, free design



Portable off-grid solar system supplier

Product Details

Monocrystalline Panel Hybrid SystemHigher efficiency conversion solar kit

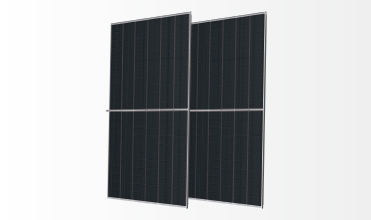

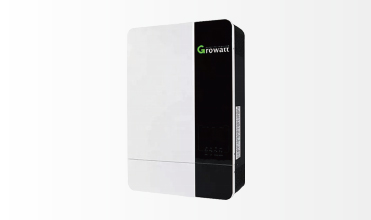

Solar Panels                                                                                                Off Grid Solar Inverter

> 30 years Warranty                                                                                                  > Pure sine wave AC output
> Highest conversion efficiency of 21.57%                                                                > With CAN/RS485 for BMS communication
> PID Resistant,High salt and ammonia resistance                                                 >Parallel operation up to 6 units
> Excellent mechanical load resistance                                                                   > Solar and utility grid can power loads at the same time

Wall Mount Hybrid SystemRoof And Ground Installation Hybrid System

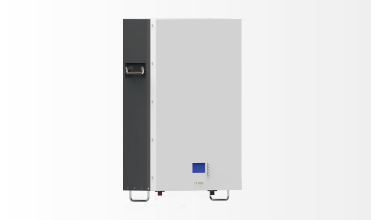

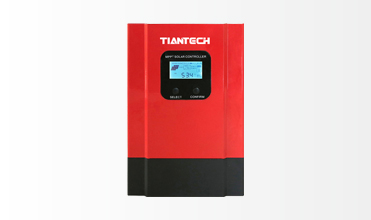

Power Wall Home Battery                                Charge Controller
> Deep cycle long lifespan                                                                                  > MPPT efficiency＞99.5%
> High discharge performance                                                                           > Average conversion efficiency 98%
> Agm/Gel/LiFePO4/Lithium Ion Battery Type                                                    > Third-order charging
>12V/48V/51.2V High Voltage Battery                                                                 > Support remote monitoring of upper computer and APP
> Wide suitability of ambient temperature rangem                                           > Multiple protection functions

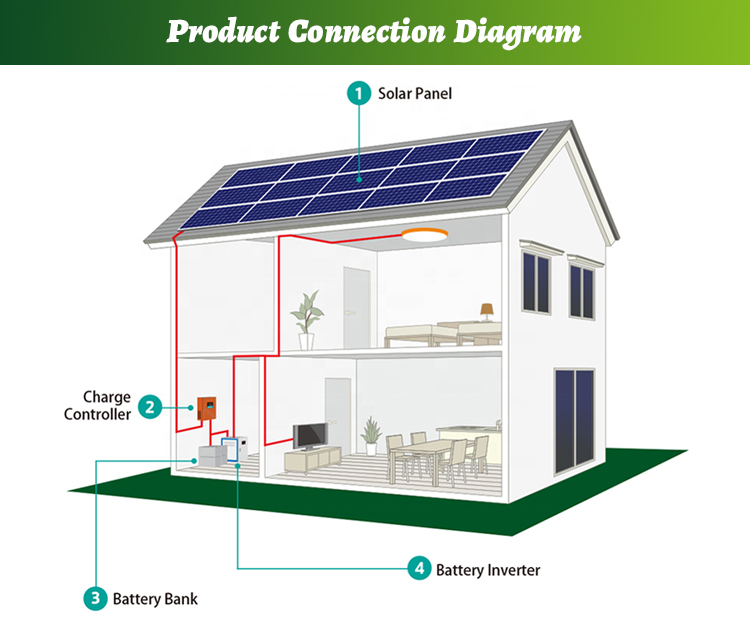

Product Connection Diagram

Not dependent on the power grid system

Product Packaging

Higher efficiency conversion solar kit

MPPT controller off-grid solar system



Hot Tags : Complete Off-Grid Solar Energy System MPPT Controller Off-grid Solar System Full Set Off-Grid Solar System Rechargeable 48V off grid solar system High Efficiency Off Grid Solar System Monocrystalline panel off-grid solar kit
