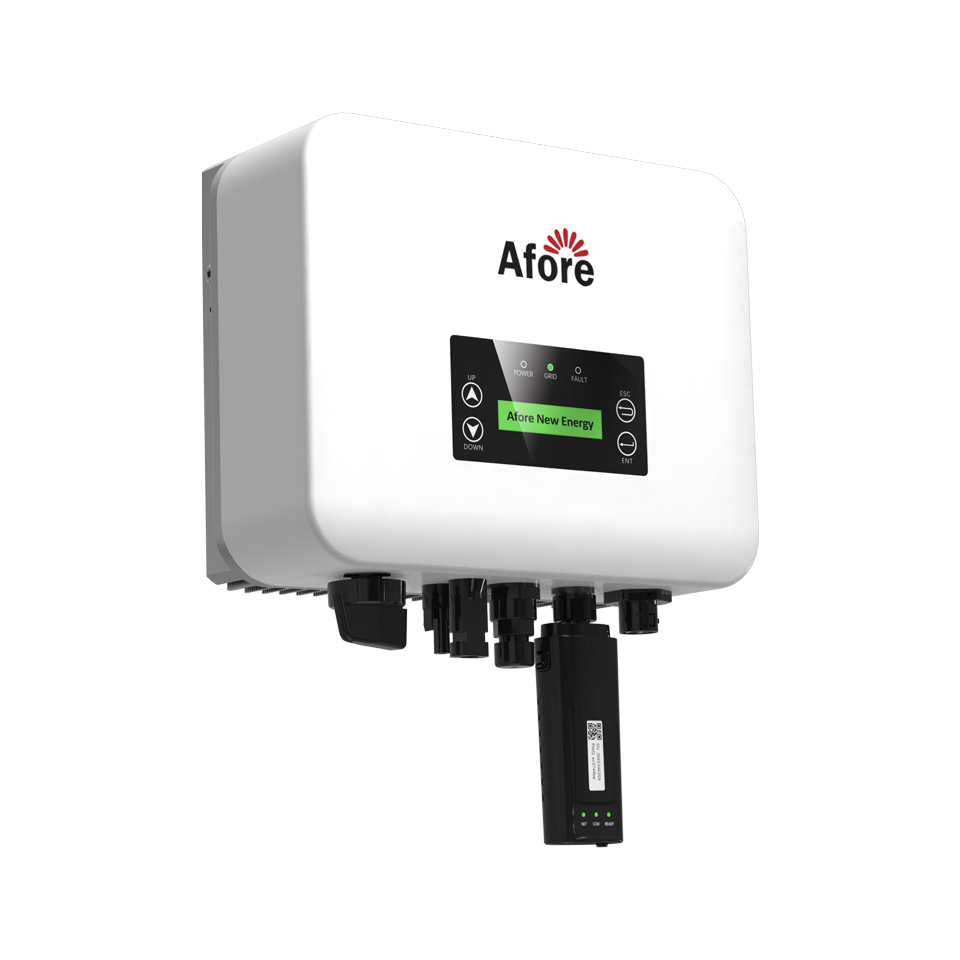

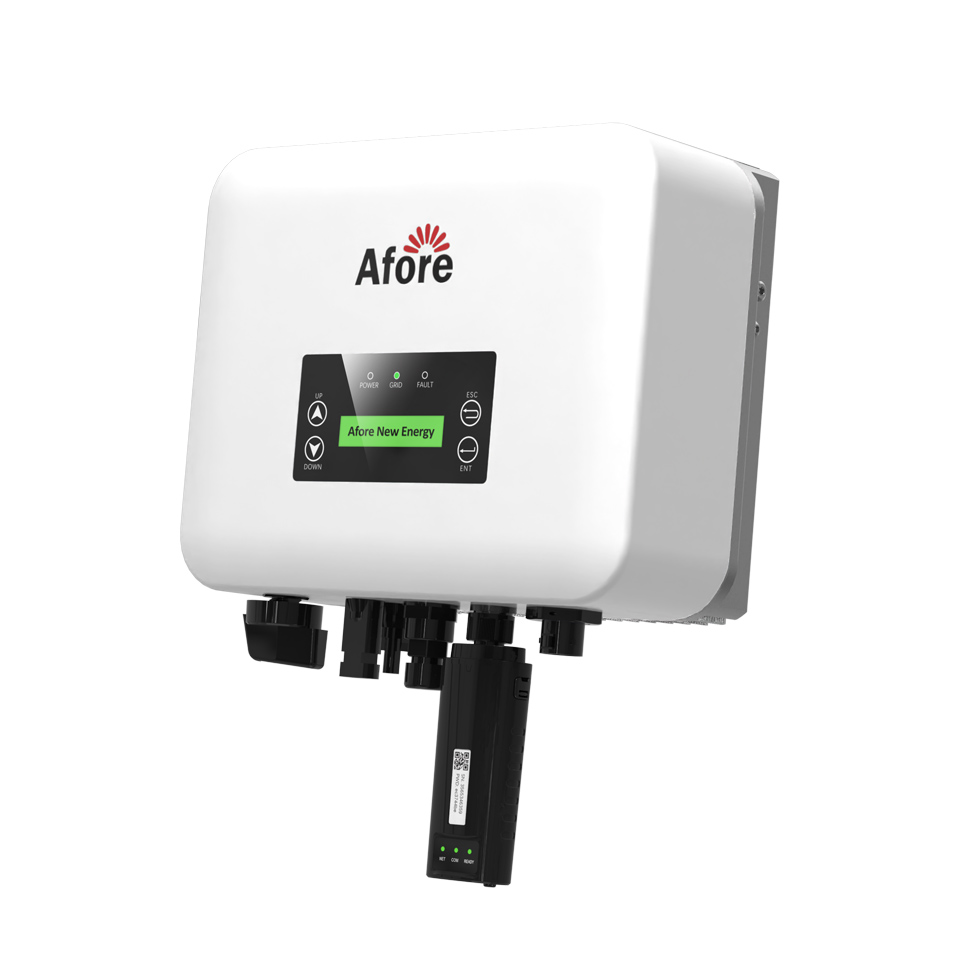

Afore Residental HNS Series HNS1000TL-1 Single-phase String PV Inverter

Afore Residental HNS Series HNS1000TL-1 Single-phase String PV Inverter
Afore Residental HNS Series HNS1000TL-1 Single-phase String PV Inverter
Afore Residental HNS Series HNS1000TL-1 Single-phase String PV Inverter

Afore Residental HNS Series HNS1000TL-1 Single-phase String PV Inverter

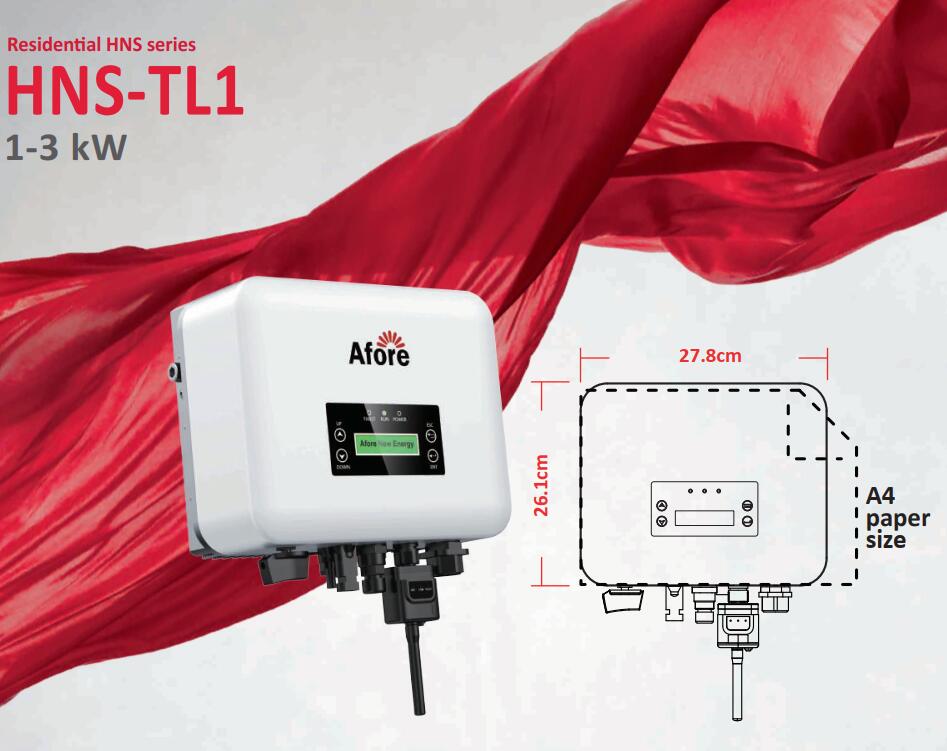

High Quality Afore 1KW 2KW 3KW On-grid Single-phase String PV Inverter HNS1000TL-1 Inverter For Home Use

PV Input Data HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1
Max. DC Power ( W ) 1500 2250 3000 3750 4200
Max. DC Voltage ( V ) 500 500 500 500 500
MPPT Voltage Range ( V ) 50-500 50-500 50-500 50-500 50-500
MPPT Full Power Voltage Range ( V ) 70-500 110-500 145-500 180-500 220-500
Rated Input Voltage ( V ) 360
Start-up Voltage ( V ) 50
Max. Input Current ( A ) 14
Max. Short Current ( A ) 18
No. of MPP Tracker /No. of PV String 1/1
Input Connector Type MC4
Inquire Now

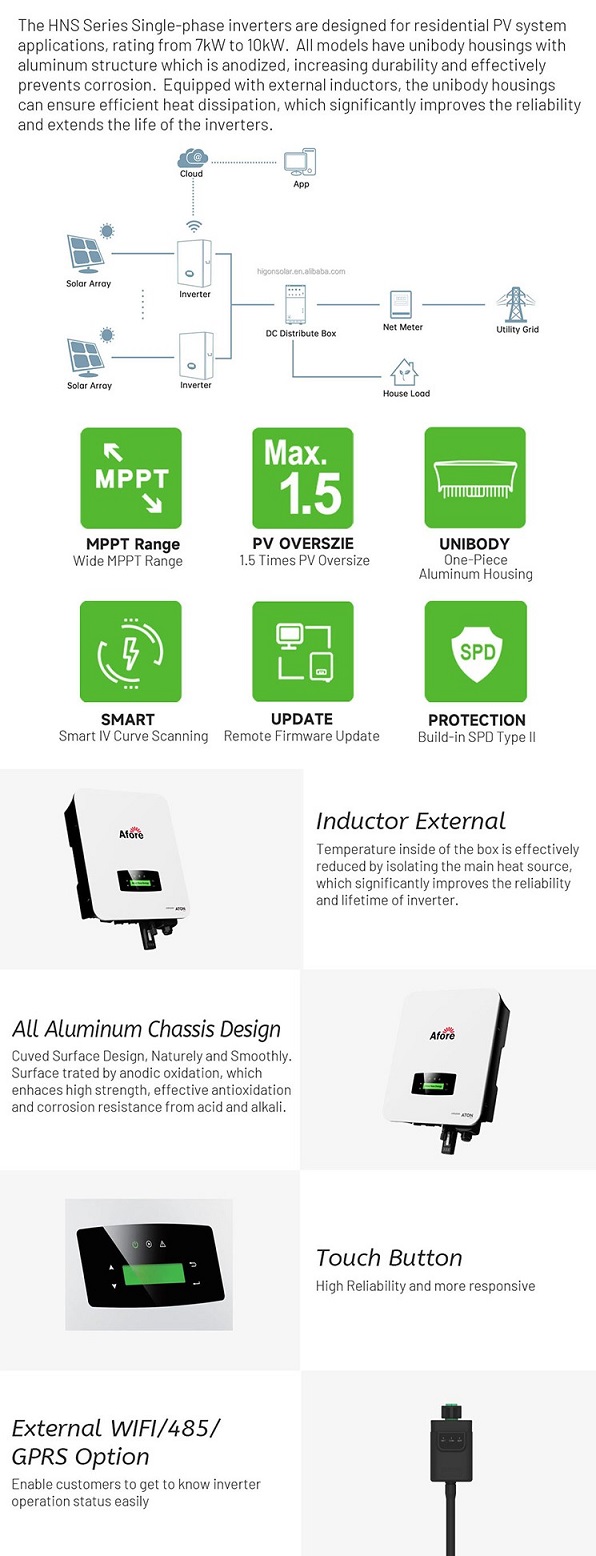

Advantages of Afore Single-phase On-grid Inverter

  • MPPT efficiency>99.9%
  • Compact and light bodt design
  • Active and relative power compensation, adjust power factor
  • No fans design
  • Quick and easy installation
  • AC output 1.1x continuous operation
AC Output Data HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1
Max. Output Power ( W ) 1100 1650 2200 2750 3300
Nominal Output Power ( W ) 1000 1500 2000 2500 3000
Max. Output Current ( A ) 6 9 12 13 15
Nominal Output Voltage ( V ) L/N/PE, 220Vac, 230Vac, 240Vac
Grid Voltage Range 180Vac-276Vac (According to local standard)
Nominal Output Frequency ( Hz ) 50/60
Grid Frequency Range 45-55Hz/54-66Hz (According to local standard)
Output Power Factor 1 default (adjustable from 0.8 leading to 0.8 lagging)
Output Current THD <3%
Efficiency HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1
Max. Efficiency 97.50% 97.80% 98.10% 98.10% 98.13%
Euro Efficiency 96.60% 96.70% 96.80% 97.23% 97.56%
