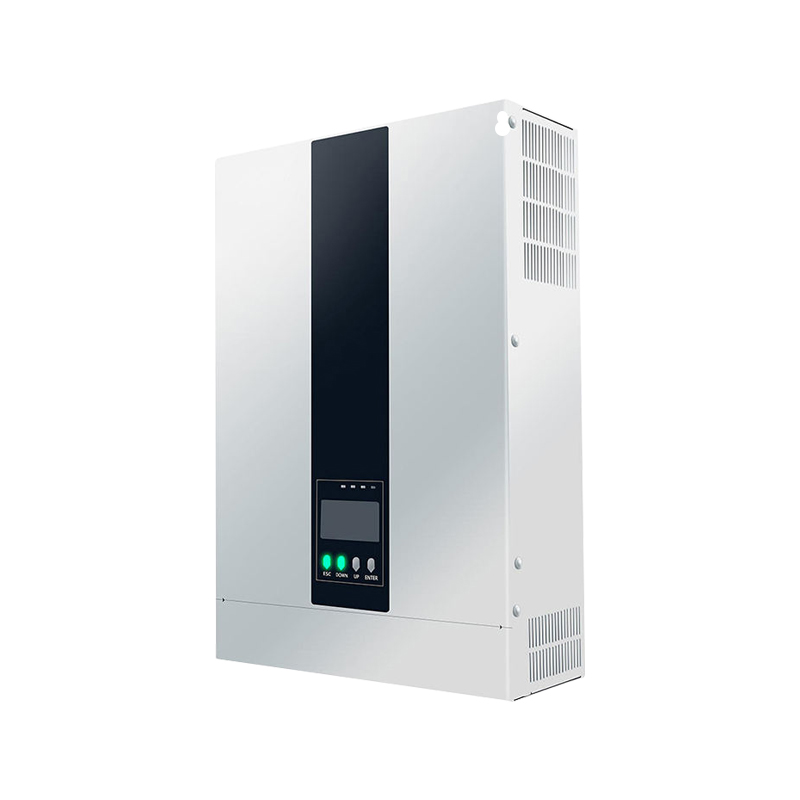

3KW 5KW Pure Sine Wave Output Off-grid Solar Inverter
Wide compatibility ability with lead-acid battery and off grid battery
| Model | JHLV-3K/5KW |
| Normial Power | 3KW/5KW |
| Waveform | Pure sine wave output |
| Output Frequency | 40-70Hz |
|
Battery Type |
Lead-acid or lithium batteries |
| IP Production | IP 65 |
| Heat Dissipation | Air cooling |
| Model | JHLV-3K | JHLV-5K | |
|
Inverter mode |
Rated output voltage |
230V (208/220/230/240 settable) |
|
|
Rated output power(W) |
3000 (2600/2700/3000) |
5000 (4350/4500/4800/5000) |
|
| Inverter efficiency (peak) | >90% | ||
| Conversion time | 10ms (typical) | ||
|
Utility mode |
Rated input voltage | 220/230VAC | |
|
Rated input current |
13.6A |
22.7A |
|
| Frequency range | 40-70Hz | ||
|
Utility charging |
Maximum charging current |
10-130A |
2-80A |
|
Charging voltage range |
26.6-27.8V FV Settable |
53.2-55.6V FVSettable |
|
|
28-29V CV Settable |
56-58V CV Settable |
||
|
Overcharge protection |
40A alarm and charge off after 1 minute | ||
|
Solar Charging
|
PV Operating Voltage Range |
30-145V |
120-500V |
| Battery voltage range | 20-30V | 40-60V | |
| MPPT Voltage Range |
30-115V |
120-430V |
|
| Maximum output power |
3000W |
5000W | |
|
Solar charging current range(Settable) |
5-60A |
0-80A |
|
|
Complete machine system |
Standards and Certification |
EN/IEC 61000, EN/IEC 62040, GB/T 7260, GB/T 4943, YD/T1095, TL |
|
| Operating temperature range |
-15°C to 55°C |
||
| Storage temperature range |
-25°C to 60°C |
||
| Communication Interface |
232 port expandable SNMP card, USB, dry node control |
||
| Maximum number of parallel machines |
9 PCS |
||
