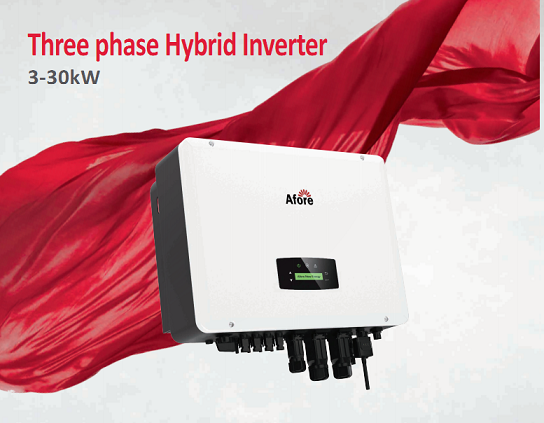

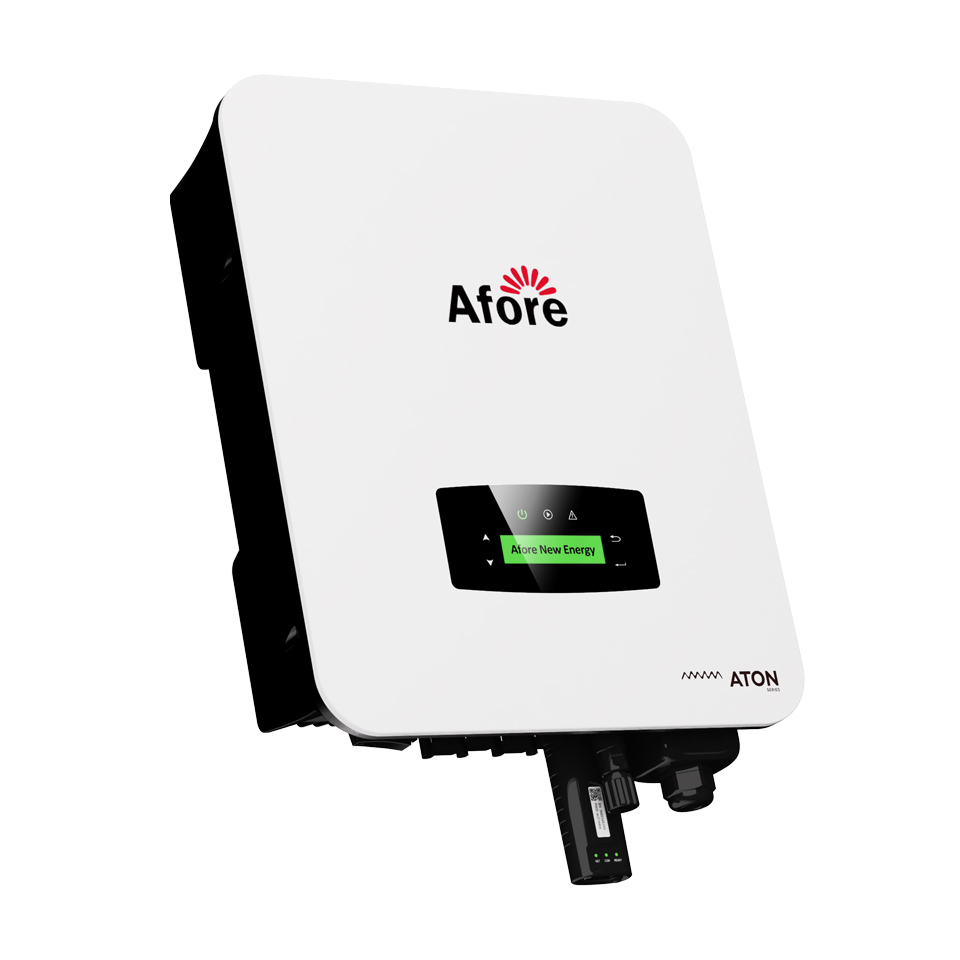

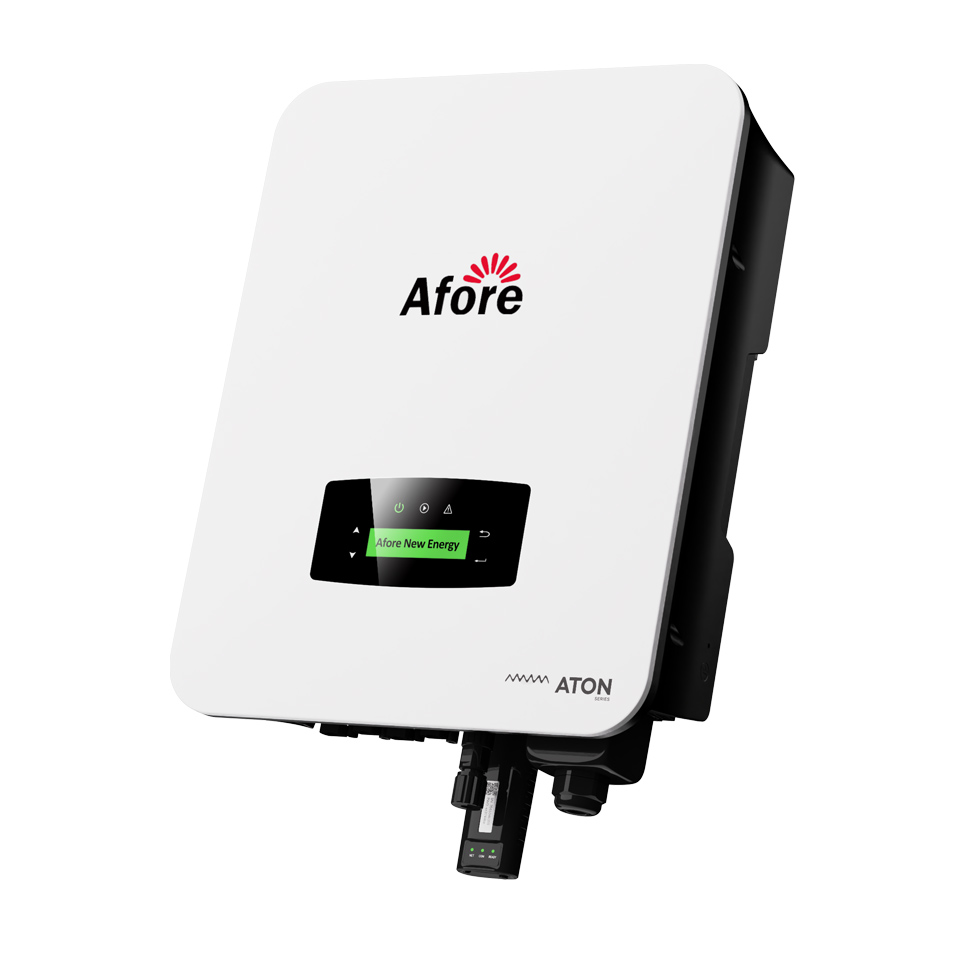

Afore AF Series 3-30kw AF3K-TH Three-phase Hybrid Inverter

Afore AF Series 3-30kw AF3K-TH Three-phase Hybrid Inverter
Afore AF Series 3-30kw AF3K-TH Three-phase Hybrid Inverter
Afore AF Series 3-30kw AF3K-TH Three-phase Hybrid Inverter

Afore AF Series 3-30kw AF3K-TH Three-phase Hybrid Inverter

Afore Residential Three phase Hybrid Inverter 3-30kW 3kw AF3K-TH Inverter For Home Use

PV Input  AF3K-TH AF4K-TH AF5K-TH AF6K-TH AF8K-TH AF10K-TH
Max. DC Input Power (kW) 5 6 7.5 9 12 15
Max. PV Voltage (V) 1000
Rated DC Input Voltage (V) 620
DC Input Voltage Range (V) 150-1000
MPPT Voltage Range (V) 150-180
Full MPPT Range(V) 200-850 250-850 300-850 500-850
Start-up Voltage (V) 160
Max. DC Input Current (A) 20 x 2
Max. Short Current(A) 30 x 2
No. of MPPT Tracker / Strings 2/2
Inquire Now

Advantages of Afore Three-phase Hybrid Inverter

  • Support for Time-of-use Optimization
  • Configurable Operation Modes
  • AFCl (Optional) & Rapid shutdown Ready
  • Build in Anti-feed-in Function
  • 100% unbalanced output, each phase; 200% unbalanced output, each phase (Below 10kW)
  • Smart Monitoring & Remote Firmware Upgrade
General Data AF3K-TH AF4K-TH AF5K-TH AF6K-TH AF8K-TH AF10K-TH
Dimensions (H x W x D) (mm) 588 x 426 x 250 mm
Weight ( kg ) 20kg 22kg
Topology Transformerless
Cooling Concept Natural Convection Intelligent Fan
Relatively Humidity 0 - 100 %
Operating Temperature Range (°C) - 25 to 60 °C
Operating Altitude (m) < 4000
Noise Emission (dB) < 30
Standby Consumption (W) < 5
Display & Communication Interfaces LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
Certification & Approvals NRS97, G98/G99, EN50549-1, C10/C11, AS 4777, VDE-AR-N4105, VDE0126, IEC62040, IEC62109-1, IEC62109-2
EMC EN61000-6-2, EN61000-6-3
