4KW, 5KW, 6KW, 8KW, 10KW, 12KW
Model No.: | EPH4KTL/5KTL/6KTL/8KTL/10KTL/12KTL |
Type: | Hybrid Energy Storage Inverter |
AC output range: | 280-490Vac |
Battery voltage range | 130-700V |
Efficiency: | 98% |
Sunchaser Inverter
Sunchaser storage inverter is developed and operated by Tiantech Company. The SUNCHASER brand is registered in China and Europe and protected by law. Sunchaser is currently mainly an energy storage inverter, including single-phase and three-phase. Sunchaser Inverter currently has warehouses in Hamburg and Rotterdam in Europe, has many partners in Germany, Switzerland, the United Kingdom, Sweden, Austria, and the Czech Republic, and has sold more than 5,000 sets of photovoltaic inverters and batteries.
Product Description

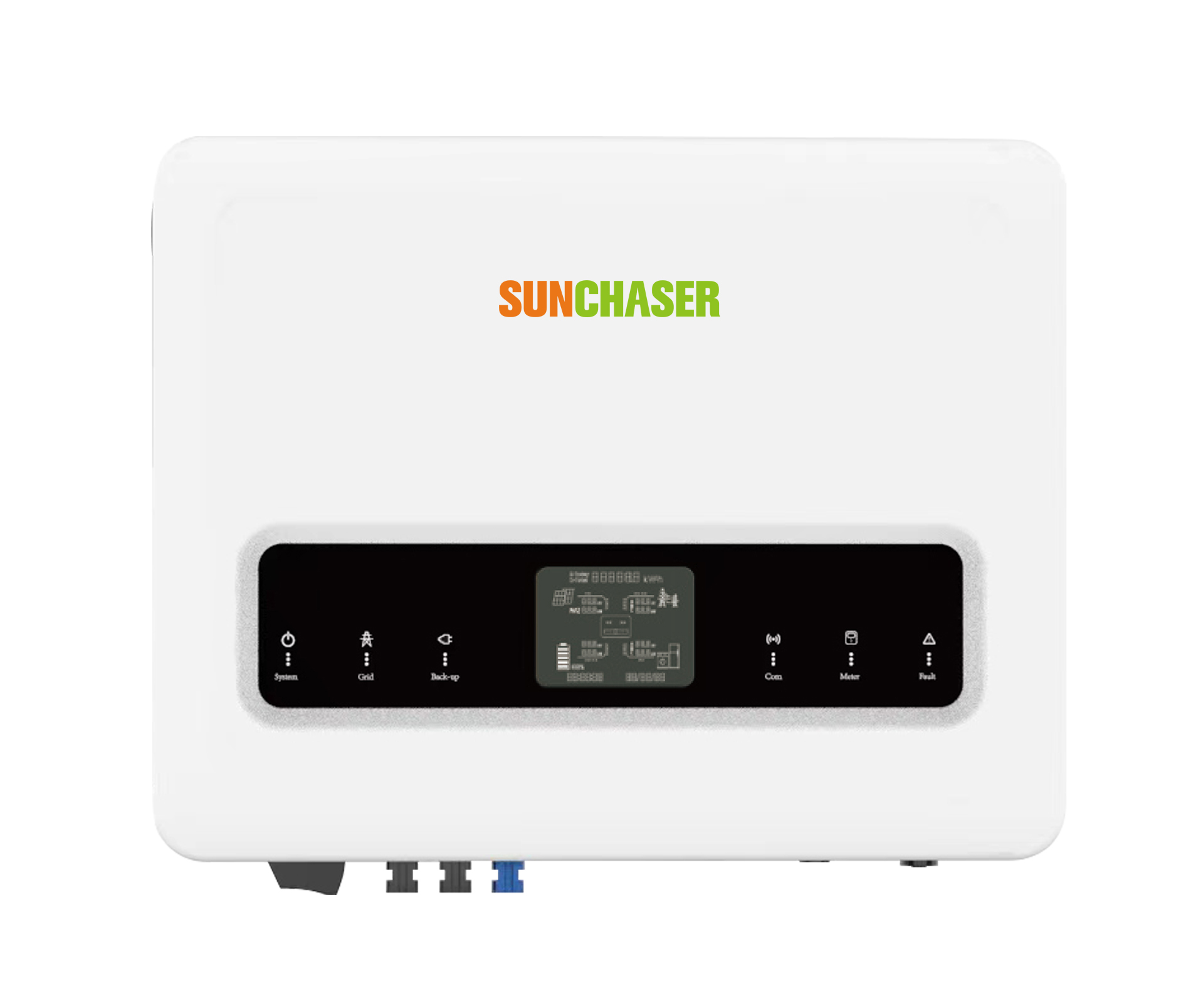

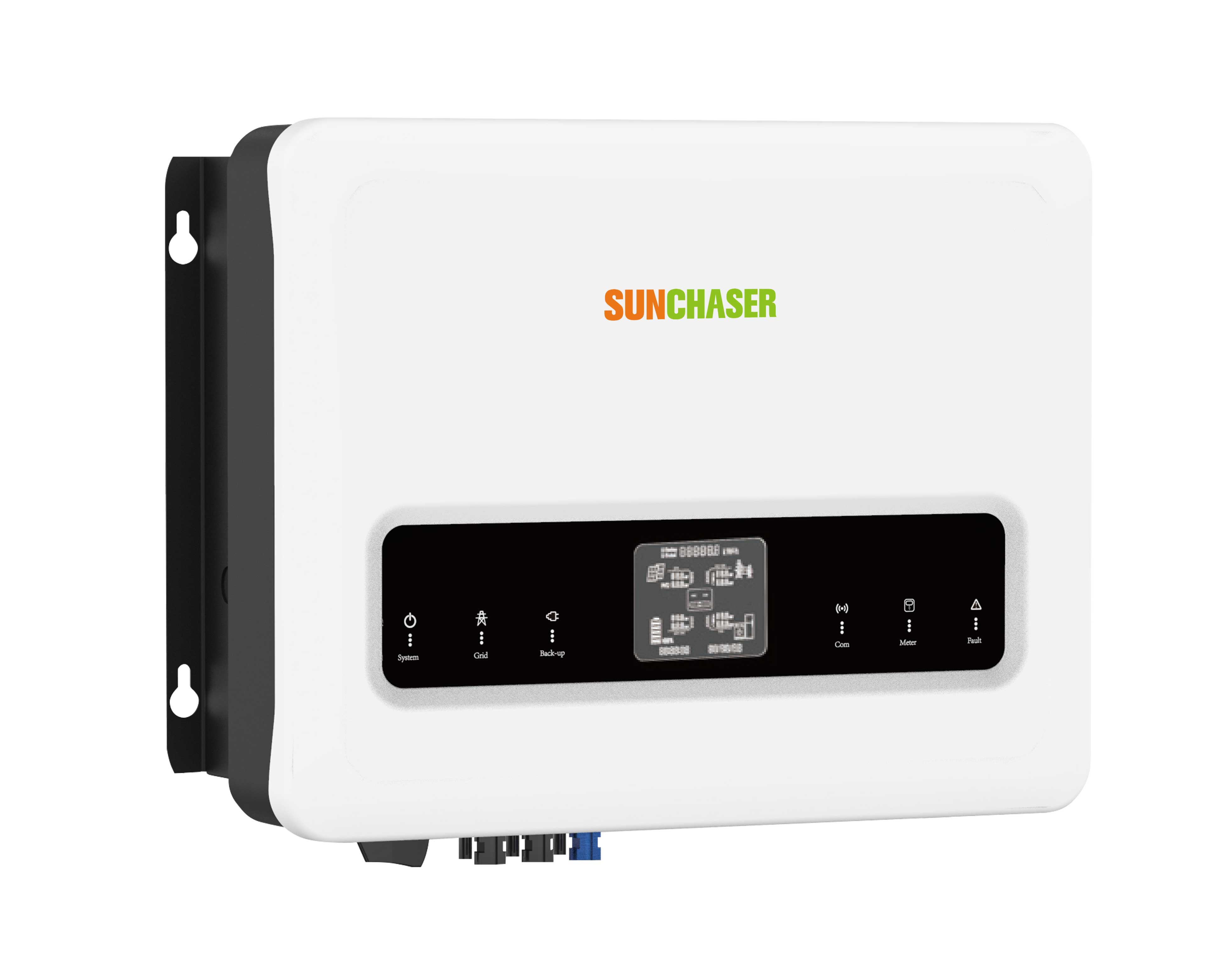

Sunchaser Three Phase Hybrid Inverter 4.0KW/5.0KW/6.0KW/8.0KW/ 10.0KW/1 2.0KW |
||||||
Model No | EPH4KTL | EPH5KTL | EPH6KTL | EPH8KTL | EPH10KTL | EPH12KTL |
Max DC power | 6000W | 7500W | 9000W | 12000W | 15000W | 15000W |
Max DC voltage | 1000Vd.c. | |||||
MPPT voltage range | 200.. .850Vd.c. | |||||
Battery Type | Li-lon | |||||
Battery voltage range | 130-700V | |||||
Maximum charge/discharge current | 25/25A | |||||
Charge strategy for Li-ion Battry | Self-adaptation to BMS | |||||
AC nominal power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
Nominal AC output | 50/60Hz;400/350 | |||||
AC output range | 45/55Hz;280~490Vac(Adj) | |||||
Power factor | 0.8leading...0.8laging | |||||
Harmonics factor | <3% | |||||
Grid type | 3W/N/PE | |||||
Three-phase unbalance output | 0~100% | 0~100% | 0~100% | 0~100% | 0~100% | 0~80% |
Max AC apparent power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 10000VA |
Norminal Output Voltage | 400/380V | |||||
Norminal Output Freqency | 50/60HZ | |||||
Output THDV (@Linear Load) | <3% | |||||
Maximum conversion efficiency | 98.00% | 98.00% | 98.20% | 98.20% | 98.20% | 98.20% |
