This product is outdoor single gun (7kW/11kW/22kW) AC charging pile, which provide AC power to electric automobile, provide friendly human-computer interaction touch screen, card reader, electric power metering module, network communication module.
| Power | 7KW/11KW/22KW |
| Rated Voltage | 250-415V |
| Current | 8A,10A,13A,16A,32A |
| Withstand Voltage | 2000V |
| Insulation resistance | >1000mΩ |

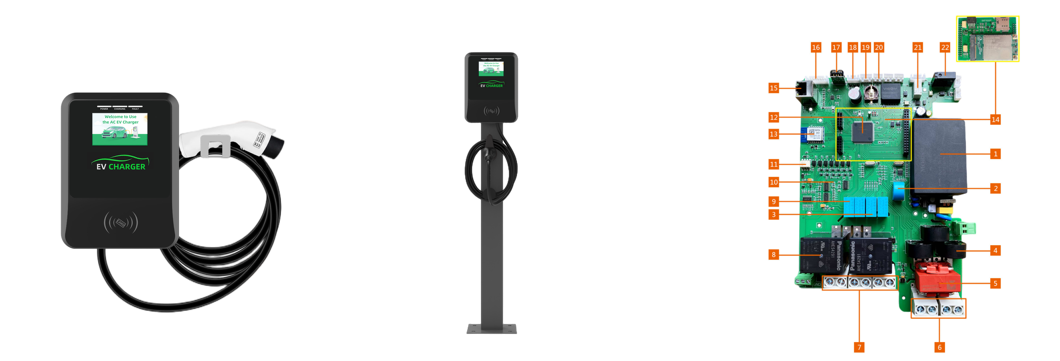

Appearance And Internal Structure
|
Internal Structure |
|||
|
1. Power Supply |
2. Load balancing transformer | 3. Voltage transformer: PT | 4. Current transformer:CT |
| 5. Leakage protection：AC 30ma Type A protection& 6MA DC protection | 6. Input
|
7. Output | 8. Relay |
| 9. PEN protection transformer: collecting voltage data | 10. CC | 11. CP | 12. CPU |
|
13. WIFI, Bluetooth |
14. Separate 4G modules can be inserted in this areav |
15. Connecting network: Ethernet |
16. Connect the swiping card area |
|
17. USB interface: can update the recognition system and import data |
18. Connection indicator |
19. Connecting the touch display area |
20. Connecting to external electricity meter |
|
21. Double gun electromagnetic lock
|
22. PEN protection:Controlled tripping
|
||
Product Details
More funtion and protection More color optional Three internal connection method
Single mode-Charge by card Three charging configurations Single mode-Charge by card:
This product is outdoor single gun (7kW/11kW/22kW) AC charging pile, which provide AC power to electric automobile, provide friendly human-computer interaction touch screen, card reader, electric power metering module, network communication module. Power 7KW/11KW/22KW Rated Voltage 250-415V Current 8A,10A,13A,16A,32A Withstand Voltage 2000V Insulation resistance >1000mΩ
